CARBURETOR - I994673 (4951335133c003)

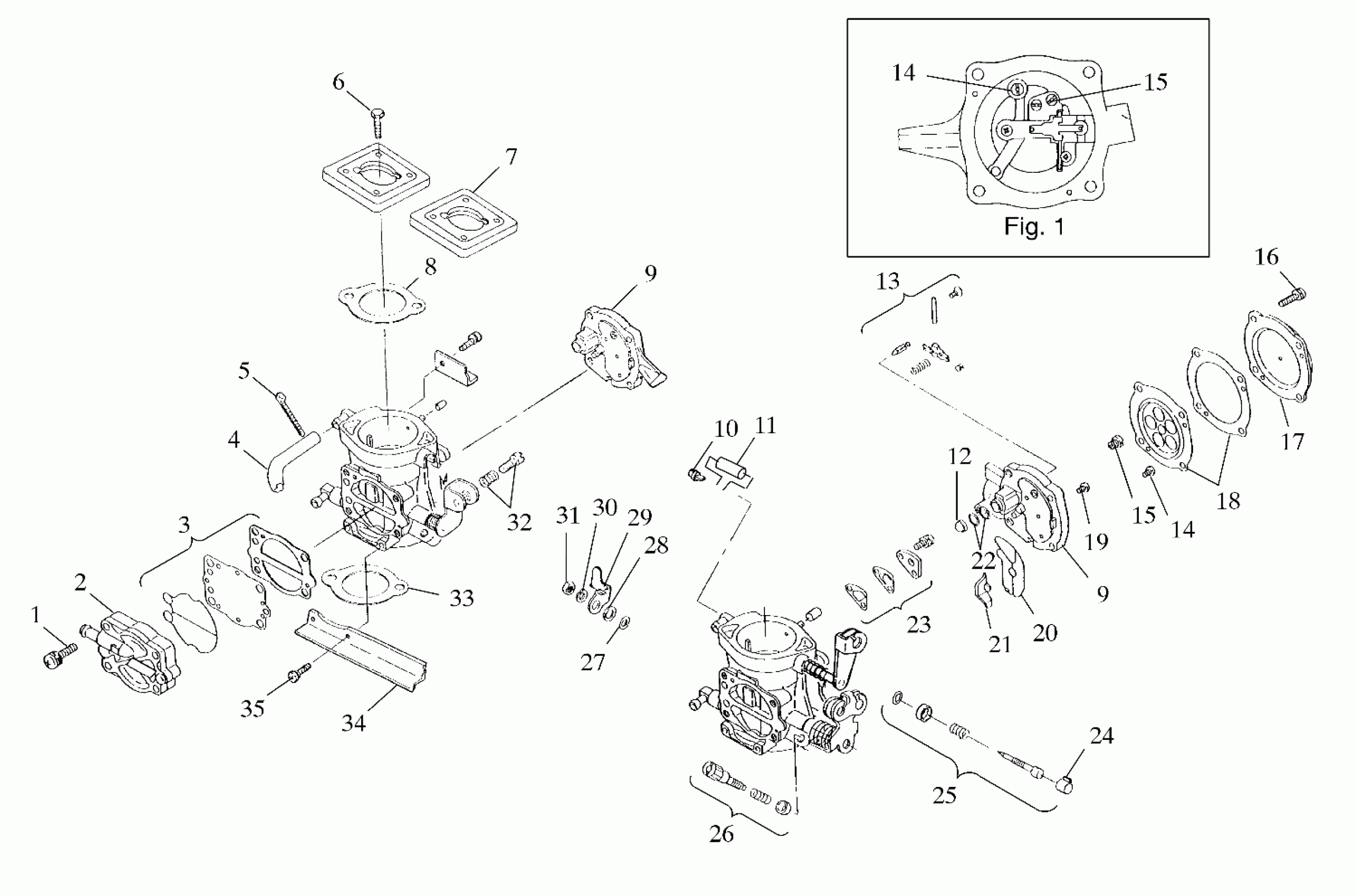

Polaris SLH - B994673 CARBURETOR - I994673 (4951335133c003) Diagram
#
-
CARBURETOR ASM.
1253202
Unavailable
-
KIT,CARB.REBUILD(700PWC) (Incl. 8,13,18,33)
2200788
Unavailable
1
SCREW, FUELPUMP
3050136
Unavailable
2
KIT,FUELPUMP BODY(KEIHIN)
2200687
Unavailable
3
KIT,GASKET(FUELPUMP)
2200686
Unavailable
4
Hose, Fuel
3050143
Unavailable
5
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
6
SCREW
7516406
Unavailable
7
BASE,VORTEC
5131317
Unavailable
8
GASKET,CARB.,UPPER
5830062
Unavailable
9
JET,R.BLOCK COMP
3050146
Unavailable
9
JET,R.BLOCK COMP
3050146
Unavailable
10
JOINT,CONNECTING
3050156
Unavailable
11
TUBE,RUBBER
3050157
Unavailable
12
SCREEN,FUELSTRAINER
3050144
Unavailable
13
KIT,NDLE VLVE,97DOM,NOT SL 1050 (1 Per Carb)
2200733
Unavailable
14
JET-MAIN,142 KEIHIN (#142)(Per Carb)
3050187
Unavailable
14
JET-MAIN,142 KEIHIN (#142)(Per Carb)
3050187
Unavailable
15
JET-PILOT,68 KEIHIN
3050129
Unavailable
15
JET-PILOT,68 KEIHIN
3050129
Unavailable
16
SCREW,JET BLOCK COVER
3050135
Unavailable
17
COVER,JET BLOCK
3050139
Unavailable
18
KIT,DIAPHRAGM-JET BLOCK (Per Carb)
2200730
Unavailable
19
Screw, Jet Block
3050137
Unavailable
20
O-Ring, Jet Block
3050147
Unavailable
21
Collar
3050138
Unavailable
22
O-RING,(VALVE SEAT)
3050148
Unavailable
23
KIT,CHECKVALVE,MAIN(KEIHIN) (1 Per Carb)
2200688
Unavailable
24
Cap, Limiter
3050140
Unavailable
25
IDLE,MIX SCREW,KIT Substituted by 2201306 (1 Per Carb)
2201479
Unavailable
26
KIT,IDLESTOP SCREW
2200731
Unavailable
27
E-Clip
3050158
Unavailable
28
WASHER
3050152
Unavailable
29
LEVER,SYNCHRONIZING
3050153
Unavailable
30
Washer, Lock
3050154
Unavailable
31
NUT,THROTTLE SHAFT
3050155
Unavailable
32
KIT,SYNCH.SCREW
2200734
Unavailable
33
GASKET,CARB.
5830043
Unavailable
34
PLATE,CONNECTING
3050160
Unavailable
35
SCREW,CONNECT.PLATE
3050159
Unavailable
