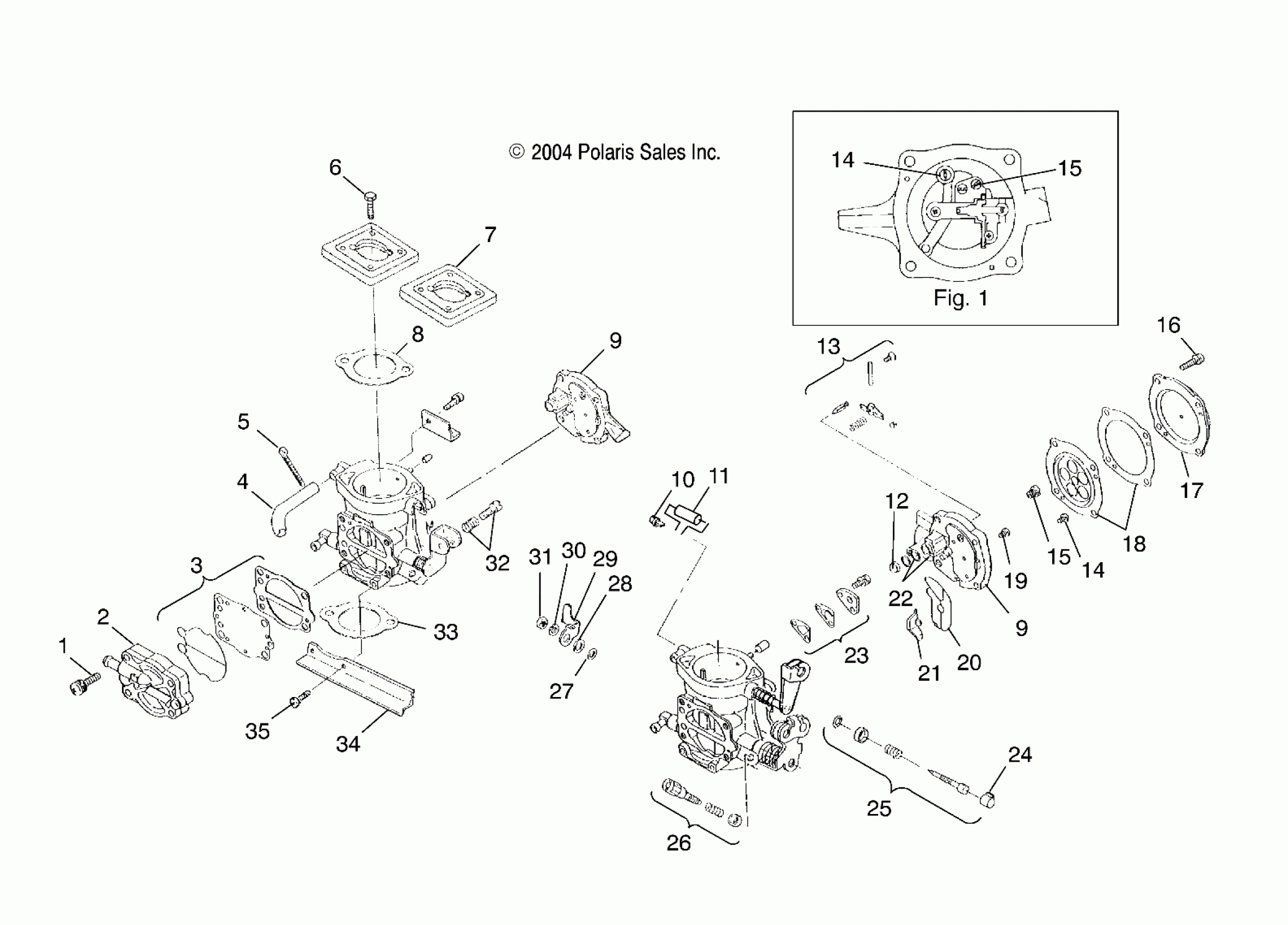

Polaris SLH - B984673 CARBURETOR - I984673 (4945164516c003) Diagram

#

Description
Price

-

CARBURETOR ASM.

1253202

Unavailable

-

KIT,CARB.REBUILD(700PWC) (Incl. 8,13,18,33)

2200788

Unavailable

1

SCREW, FUELPUMP

3050136

Unavailable

2

KIT,FUELPUMP BODY(KEIHIN)

2200687

Unavailable

3

KIT,GASKET(FUELPUMP)

2200686

Unavailable

4

Hose, Fuel

3050143

Unavailable

5

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

6

SCREW

7516406

Unavailable

7

BASE,VORTEC

5131317

$49.21

8

GASKET,CARB.,UPPER

5830062

Unavailable

9

JET,R.BLOCK COMP

3050146

Unavailable

9

JET,R.BLOCK COMP

3050146

Unavailable

10

JOINT,CONNECTING

3050156

$26.19

11

TUBE,RUBBER

3050157

Unavailable

12

SCREEN,FUELSTRAINER

3050144

Unavailable

13

KIT,NDLE VLVE,97DOM,NOT SL 1050 (1 Per Carb)

2200733

Unavailable

14

JET-MAIN,142 KEIHIN (Per Carb) #142

3050187

$8.98

14

JET-MAIN,142 KEIHIN (Per Carb) #142

3050187

$8.98

15

JET-PILOT,68 KEIHIN

3050129

$7.24

15

JET-PILOT,68 KEIHIN

3050129

$7.24

16

SCREW,JET BLOCK COVER

3050135

Unavailable

17

COVER,JET BLOCK

3050139

$45.24

18

KIT,DIAPHRAGM-JET BLOCK (Per Carb)

2200730

Unavailable

19

Screw, Jet Block

3050137

$3.98

20

O-Ring, Jet Block

3050147

Unavailable

21

Collar

3050138

Unavailable

22

O-RING,(VALVE SEAT)

3050148

Unavailable

23

KIT,CHECKVALVE,MAIN(KEIHIN) (1 Per Carb)

2200688

$34.21

24

Cap, Limiter

3050140

Unavailable

25

KIT,MAINMIX.SCREW(KEIHIN) (1 Per Carb)

2200690

Unavailable

26

KIT,IDLESTOP SCREW

2200731

$27.92

27

E-Clip

3050158

Unavailable

28

Washer, Plain

3050152

Unavailable

29

Lever, Synchronizing

3050153

Unavailable

30

Washer, Lock

3050154

Unavailable

31

Nut, Throttle Shaft

3050155

Unavailable

32

Kit - Synchronizing Screw

2200734

Unavailable

33

Gasket, Carb

5830043

Unavailable

34

Plate, Connecting

3050160

Unavailable

35

Screw, Connecting Plate

3050159

Unavailable
