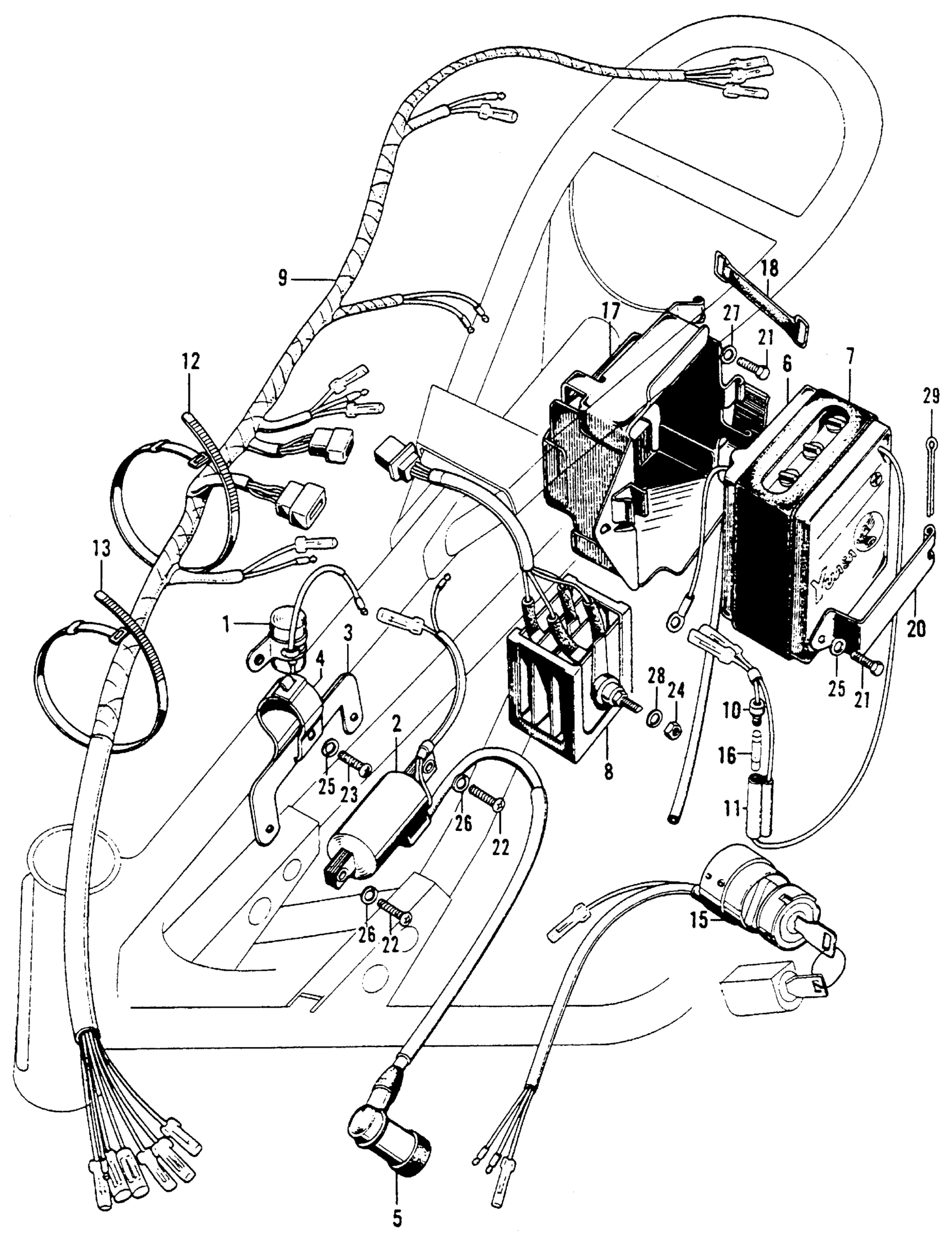

Honda SL90A MOTORCYCLE, JPN, VIN# SL90-100001 WIRE HARNESS + BATTERY Diagram

#

Description
Price

1

CONDENSER

30250-074-003

Unavailable

2

COIL, IGNITION (NOT AVAILABLE)

30400-074-000

Unavailable

3

STAY, IGNITION COIL SETTING (NOT AVAILABLE)

30505-074-000

Unavailable

4

BAND, IGINITION COIL SETTING (NOT AVAILABLE)

30506-074-000

Unavailable

5

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-153.

30700-KE2-942

$17.87

5

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-158.

30700-KE2-942

$17.87

5

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-163.

30700-KE2-942

$17.87

5

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-259-810.

30700-KE2-942

$17.87

6

BATTERY (6V-5.5A) This part replaces 31500-102-772.

31500-102-772AH

Unavailable

7

RUBBER, BATTERY MOUNT (NOT AVAILABLE)

31510-046-000

Unavailable

8

RECTIFIER (NOT AVAILABLE) This part replaces 31700-240-000.

31700-235-305

Unavailable

9

WIRE HARNESS (NOT AVAILABLE)

32100-074-671

Unavailable

10

CONNECTOR A, FUSE (NOT AVAILABLE)

32106-046-000

Unavailable

11

CONNECTOR B, FUSE (YUASA) This part replaces 32112-041-000.

32112-041-008

Unavailable

11

CONNECTOR B, FUSE (YUASA)

32112-041-008

Unavailable

12

BAND B2, CABLE HARNESS This part replaces 32161-286-000.

95014-62200

$2.11

12

BAND B2, CABLE HARNESS

95014-62200

$2.11

13

BAND B2, CABLE HARNESS This part replaces 32161-286-000.

95014-62200

$2.11

13

BAND B2, CABLE HARNESS This part replaces 32162-286-000.

95014-62200

$2.11

13

BAND B2, CABLE HARNESS

95014-62200

$2.11

15

SWITCH ASSY. (NOT AVAILABLE)

35010-074-007

Unavailable

16

FUSE A (10A) This part replaces 38201-030-000.

98200-11000

$1.80

16

FUSE A (10A)

98200-11000

$1.80

17

BOX, BATTERY HANGER *NH1* (BLACK) (NOT AVAILABLE)

50381-074-010B

Unavailable

18

BAND, TOOL (NOT AVAILABLE)

50382-074-000

Unavailable

20

BAND, BATTERY *NH1* (BLACK) (NOT AVAILABLE)

83631-074-000B

Unavailable

21

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

21

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

21

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

22

SCREW, PAN (5X20)

93500-05020-0A

$1.49

23

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

23

SCREW, PAN (6X20)

93500-06020-0A

$1.49

24

NUT, HEX. (8MM) This part replaces 94001-08000.

94030-08000

$1.49

24

NUT, HEX. (8MM)

94030-08000

$1.49

24

NUT, HEX. (8MM) This part replaces 94030-08200.

94030-08000

$1.49

25

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

25

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

25

WASHER, PLAIN (6MM)

94101-06800

$1.49

26

WASHER, SPRING (5MM)

94111-05000

$1.49

27

WASHER, SPRING (6MM)

94111-06000

$1.49

28

WASHER, SPRING (8MM)

94111-08000

$1.49

29

PIN, COTTER (3.0X45)

94201-30450

$1.49
