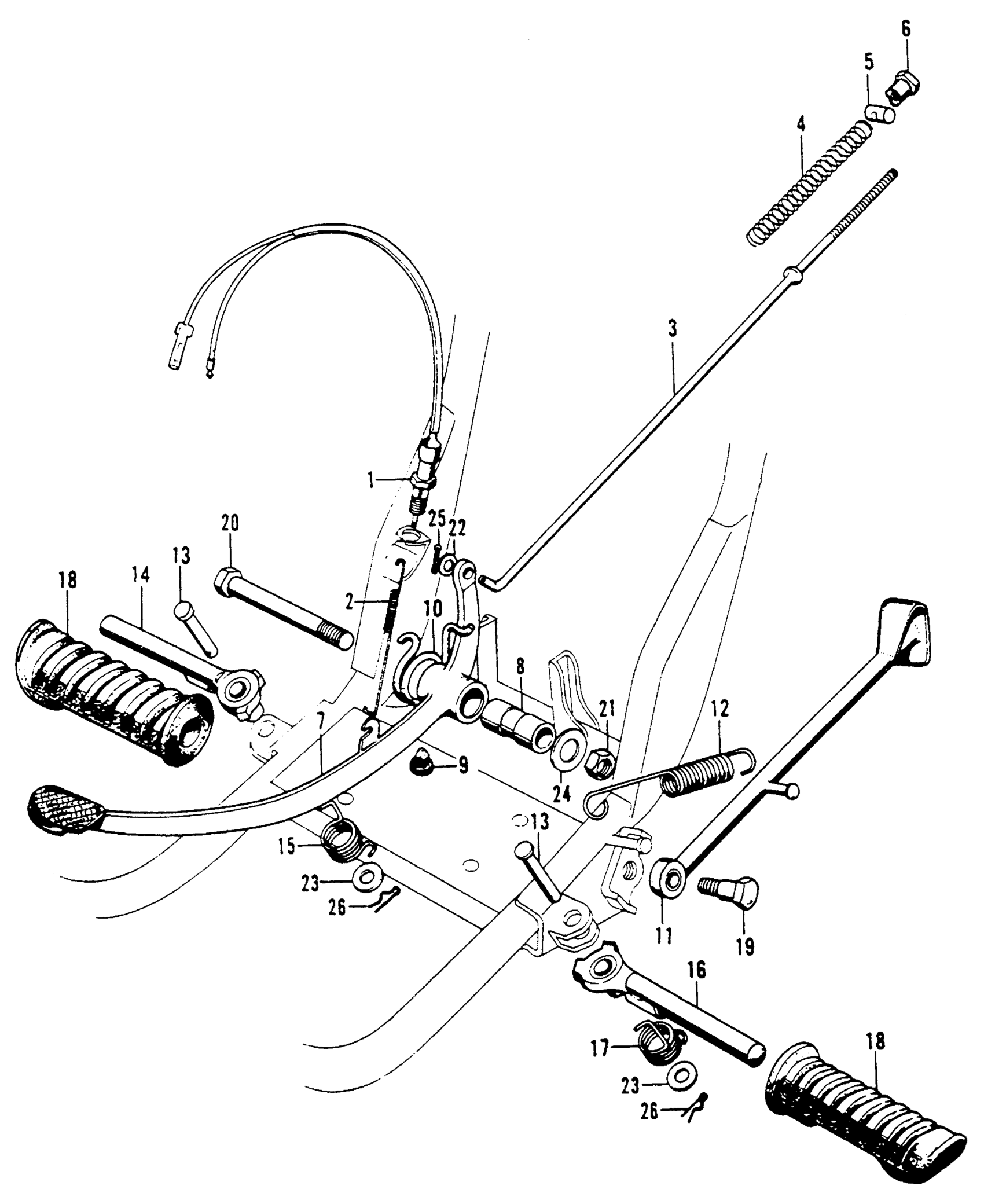

Honda SL90A MOTORCYCLE, JPN, VIN# SL90-100001 STEP + SIDE STAND Diagram

#

Description
Price

1

SWITCH ASSY., STOP This part replaces 35350-028-000.

35350-098-005

Unavailable

1

SWITCH ASSY., STOP This part replaces 35350-051-000.

35350-098-005

Unavailable

1

SWITCH ASSY., STOP This part replaces 35350-098-003.

35350-098-005

Unavailable

1

SWITCH ASSY., STOP

35350-098-005

Unavailable

2

SPRING, STOP SWITCH (NOT AVAILABLE) This part replaces 35357-074-000.

35357-074-010

Unavailable

2

SPRING, STOP SWITCH (NOT AVAILABLE)

35357-074-010

Unavailable

3

ROD, RR. BRAKE This part replaces 43450-041-000.

43451-397-000

$7.34

3

ROD, RR. BRAKE This part replaces 43451-041-000.

43451-397-000

$7.34

3

ROD, RR. BRAKE

43451-397-000

$7.34

4

SPRING A, BRAKE ROD This part replaces 43472-001-000.

95014-73100

$1.49

4

SPRING A, BRAKE ROD This part replaces 43472-212-000.

95014-73100

$1.49

4

SPRING A, BRAKE ROD

95014-73100

$1.49

4

SPRING A, BRAKE ROD This part replaces 95014-73300.

95014-73100

$1.49

5

JOINT A, BRAKE ARM This part replaces 45461-001-000.

95015-31001

$1.53

5

JOINT A, BRAKE ARM This part replaces 95015-31000.

95015-31001

$1.53

5

JOINT A, BRAKE ARM

95015-31001

$1.53

6

NUT A, BRAKE ROD ADJUSTING This part replaces 45462-028-000.

95015-41000

$1.49

6

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.49

7

PEDAL, BRAKE (NOT AVAILABLE)

46500-074-000

Unavailable

8

COLLAR, BRAKE PEDAL

46506-074-000

Unavailable

9

STOPPER, BRAKE PEDAL (NOT AVAILABLE)

46507-074-000

Unavailable

10

SPRING, BRAKE PEDAL (NOT AVAILABLE)

46514-074-000

Unavailable

11

BAR, SIDE STAND (NOT AVAILABLE)

50530-074-000

Unavailable

12

SPRING D, SIDE STAND This part replaces 50542-273-000.

95014-72402

$2.92

12

SPRING D, SIDE STAND This part replaces 50542-286-000.

95014-72402

$2.92

12

SPRING D, SIDE STAND This part replaces 95014-72400.

95014-72402

$2.92

12

SPRING D, SIDE STAND This part replaces 95014-72401.

95014-72402

$2.92

12

SPRING D, SIDE STAND

95014-72402

$2.92

13

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

13

PIN, STEP BAR JOINT

50603-033-010

$3.30

14

ARM, R. STEP

50616-056-670

Unavailable

15

SPRING, R. STEP RETURN

50617-056-670

Unavailable

16

ARM, L. STEP (NOT AVAILABLE)

50642-056-670

Unavailable

17

SPRING, L. STEP RETURN

50644-056-670

Unavailable

18

RUBBER, STEP This part replaces 50661-056-000.

50661-110-000

$10.76

18

RUBBER, STEP

50661-110-000

$10.76

19

SCREW, SIDE STAND PIVOT (NOT AVAILABLE)

90108-074-000

Unavailable

20

BOLT, HEX. (12X80) (SOURCE: VINTAGE PARTS INC.) This part replaces 92000-12080-0A.

92101-12080-0A

Unavailable

20

BOLT, HEX. (12X80) (SOURCE: VINTAGE PARTS INC.)

92101-12080-0A

Unavailable

21

NUT, HEX. (12MM)

94001-12000-0S

$1.66

22

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

22

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

22

WASHER, PLAIN (6MM)

94101-06800

$1.49

23

WASHER, PLAIN (8MM)

94101-08000

$1.49

24

WASHER, PLAIN (12MM)

94101-12000

$1.49

25

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

25

PIN, COTTER (1.6X25)

94201-16250

$1.49

26

PIN, LOCK (8MM)

94251-08000

$1.49
