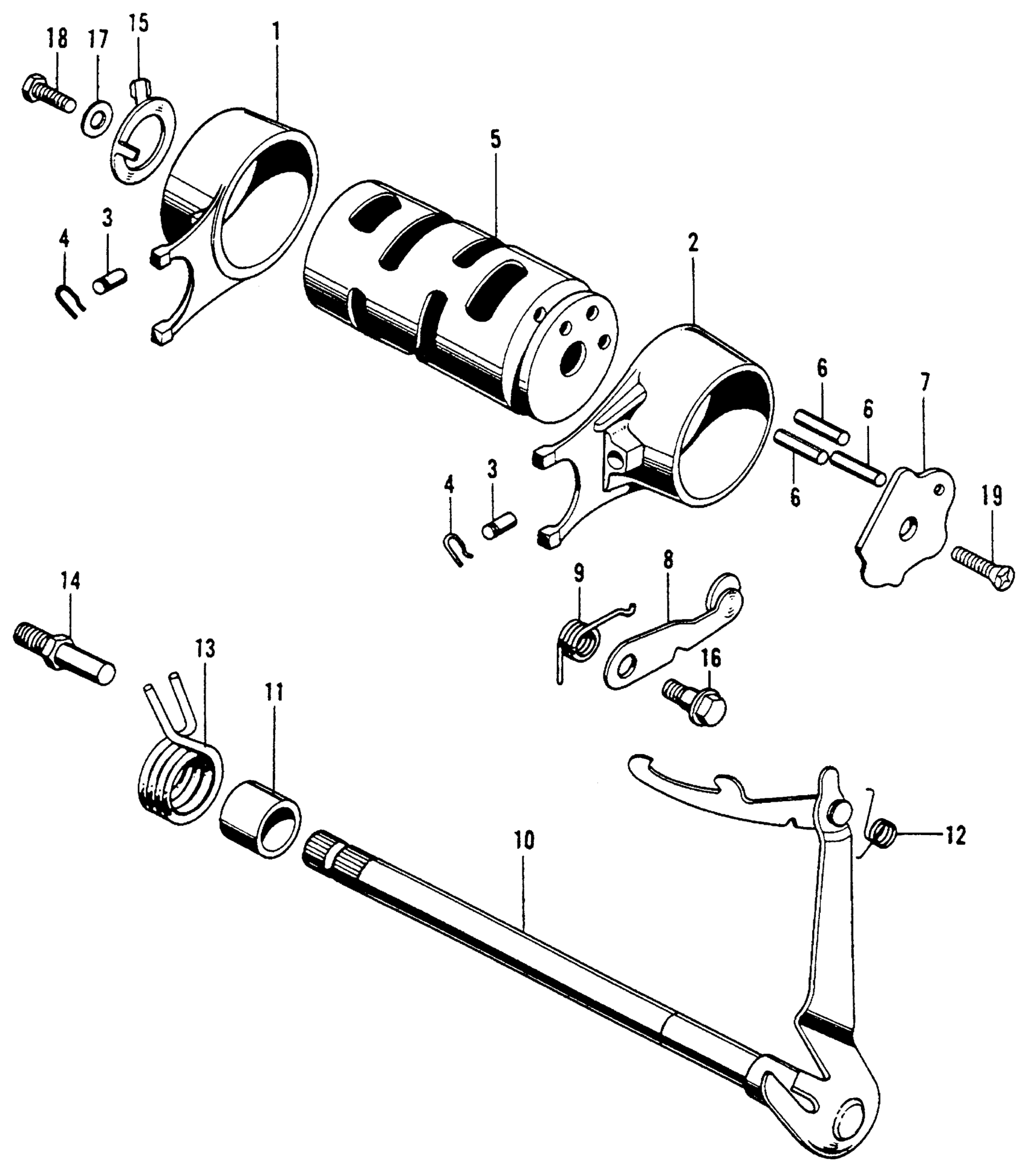

Honda SL90A MOTORCYCLE, JPN, VIN# SL90-100001 SHIFT DRUM + GEARSHIFT SPINDLE Diagram

#

Description
Price

1

FORK, R. GEARSHIFT

24211-028-345

Unavailable

2

FORK, L. GEARSHIFT

24221-028-335

Unavailable

3

PIN, GEARSHIFT FORK GUIDE This part replaces 24261-028-010.

24261-121-742

$2.33

3

PIN, GEARSHIFT FORK GUIDE This part replaces 24261-121-740.

24261-121-742

$2.33

3

PIN, GEARSHIFT FORK GUIDE This part replaces 24261-121-741.

24261-121-742

$2.33

4

CLIP, GEARSHIFT FORK GUIDE

24263-028-000

$2.66

5

DRUM, GEARSHIFT (NOT AVAILABLE) This part replaces 24301-028-605.

24301-028-606

Unavailable

5

DRUM, GEARSHIFT (NOT AVAILABLE)

24301-028-606

Unavailable

6

PIN, GEARSHIFT DRUM This part replaces 24421-200-000.

24421-230-000

$5.80

6

PIN, GEARSHIFT DRUM

24421-230-000

$5.80

7

PLATE, SHIFT DRUM STOPPER (NOT AVAILABLE) This part replaces 24425-028-602.

24425-128-000

Unavailable

7

PLATE, SHIFT DRUM STOPPER (NOT AVAILABLE)

24425-128-000

Unavailable

8

ARM This part replaces 24430-028-602.

24430-459-950

$15.78

8

ARM This part replaces 24430-028-603.

24430-459-950

$15.78

8

ARM This part replaces 24430-943-000.

24430-459-950

$15.78

8

ARM This part replaces 24430-943-010.

24430-459-950

$15.78

9

SPRING, SHIFT DRUM STOPPER (NOT AVAILABLE)

24435-028-680

Unavailable

10

SPINDLE, GEARSHIFT (NOT AVAILABLE) This part replaces 24610-028-020.

24610-028-030

Unavailable

10

SPINDLE, GEARSHIFT (NOT AVAILABLE)

24610-028-030

Unavailable

11

COLLAR (12.5MM) (NOT AVAILABLE)

24621-028-000

Unavailable

12

SPRING, GEARSHIFT ARM

24641-028-000

$1.33

13

SPRING, GEARSHIFT RETURN (NOT AVAILABLE)

24651-028-000

Unavailable

14

PIN, SHIFT RETURN SPRING

24652-028-000

$9.72

15

ROTOR, NEUTRAL SWITCH

35753-KG2-951

$4.76

15

ROTOR, NEUTRAL SWITCH This part replaces 35753-028-601.

35753-KG2-951

$4.76

16

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT This part replaces 90023-041-000.

90023-041-010

$2.25

16

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

90023-041-010

$2.25

17

WASHER, GEARSHIFT DRUM SIDE

90417-041-000

$2.19

18

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

18

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

18

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

18

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

18

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

18

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

19

SCREW, OVAL (6X16) This part replaces 93700-06016.

93700-06016-0A

$1.49

19

SCREW, OVAL (6X16)

93700-06016-0A

$1.49
