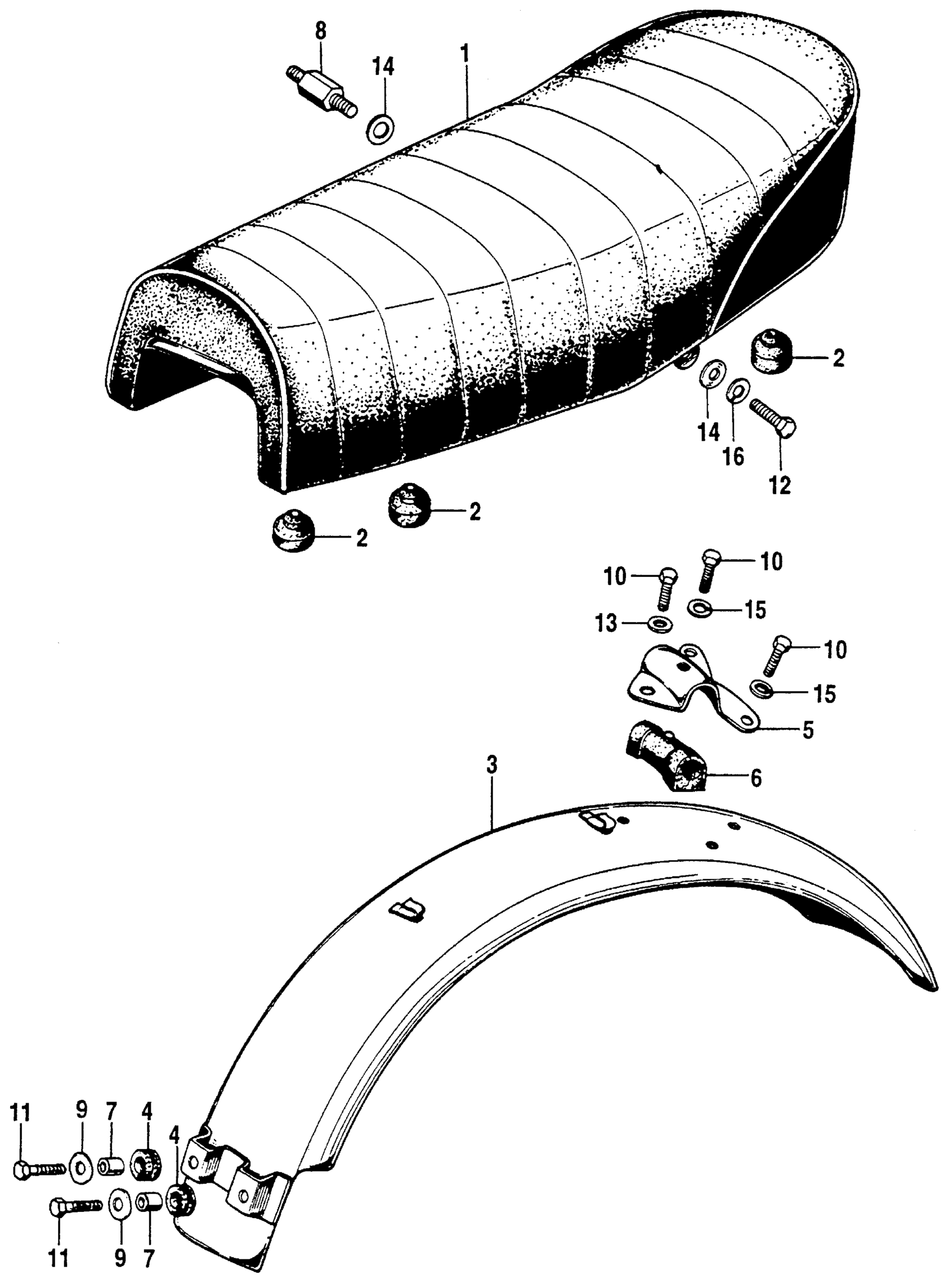

Honda SL90A MOTORCYCLE, JPN, VIN# SL90-100001 SEAT + REAR FENDER Diagram

#

Description
Price

1

SEAT *NH1L* (BLACK) (NOT AVAILABLE)

77200-074-010A

Unavailable

2

RUBBER, SEAT CUSHION

77201-074-000

$3.82

3

FENDER, RR. (NOT AVAILABLE)

80100-074-672Z

Unavailable

4

RUBBER, RR. FENDER CUSHION

80101-283-000

$4.57

5

STAY, RR. FENDER SETTING *NH1* (BLACK) (NOT AVAILABLE)

80105-074-000B

Unavailable

6

RUBBER, RR. FENDER MOUNT (NOT AVAILABLE)

80106-074-000

Unavailable

7

COLLAR A, RR. FENDER

80108-061-010

$3.82

8

BOLT, RR. MUFFLER SETTING (NOT AVAILABLE)

90120-074-670

Unavailable

9

WASHER, PLAIN (8MM) This part replaces 90504-700-000.

94101-08000

$0.75

9

WASHER, PLAIN (8MM) This part replaces 90541-035-000.

94101-08000

$0.75

9

WASHER, PLAIN (8MM)

94101-08000

$0.75

10

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.29

10

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.29

10

BOLT, HEX. (6X12)

92101-06012-0A

$1.29

11

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.33

11

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.33

11

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.33

11

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.33

11

BOLT, HEX. (6X16)

92101-06016-0A

$1.33

11

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.33

12

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.35

12

BOLT, HEX. (8X16)

92101-08016-0A

$1.35

13

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

13

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

13

WASHER, PLAIN (6MM)

94101-06800

Unavailable

14

WASHER, PLAIN (8MM)

94101-08000

$0.75

15

WASHER, SPRING (6MM)

94111-06000

$0.86

16

WASHER, SPRING (8MM)

94111-08000

$0.90
