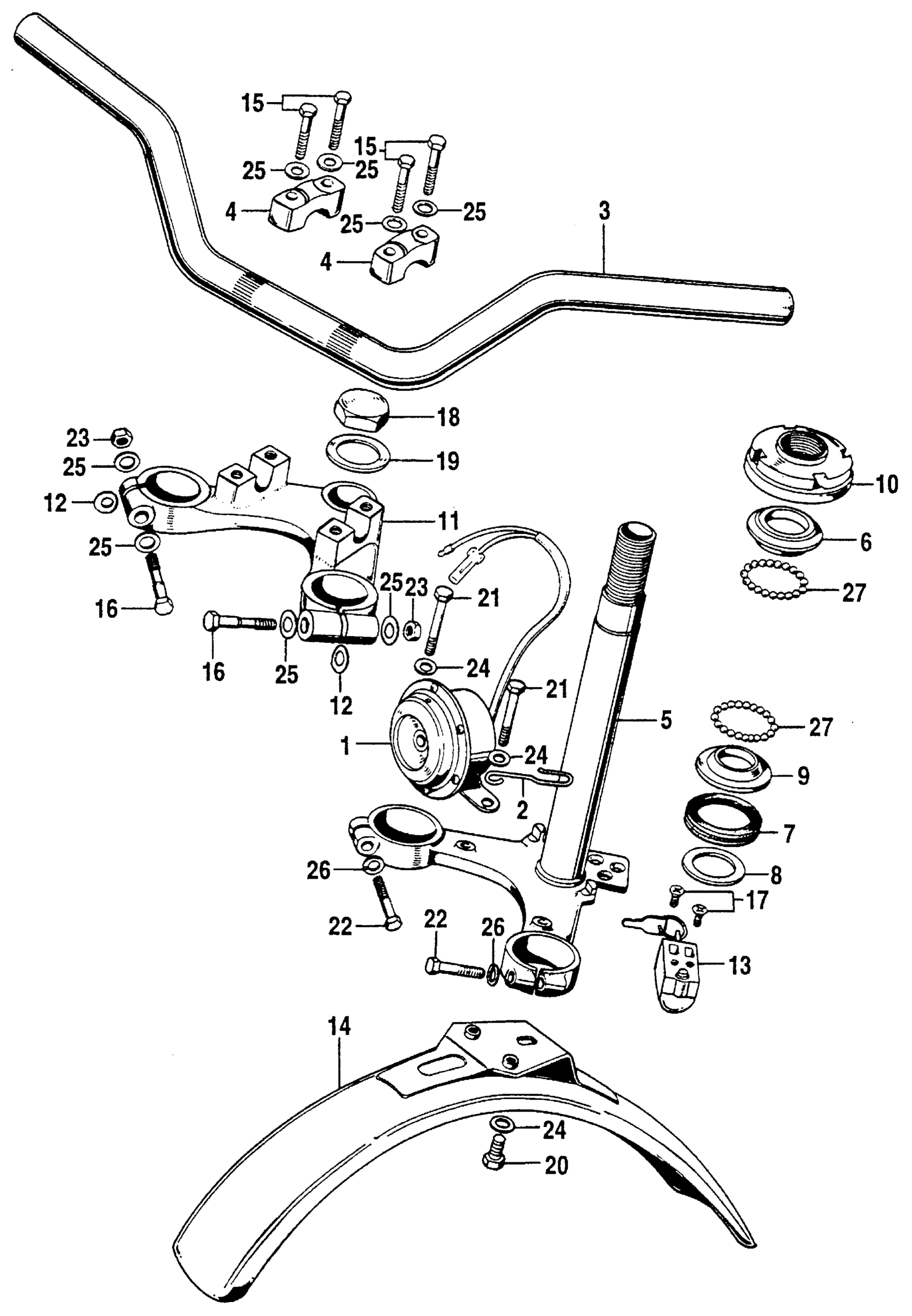

Honda SL90A MOTORCYCLE, JPN, VIN# SL90-100001 HANDLE + STEERING STEM + FRONT FENDER Diagram

#

Description
Price

1

HORN ASSY. (NOT AVAILABLE)

38100-074-004

Unavailable

2

CLIP, FR. BRAKE CABLE (NOT AVAILABLE)

45465-051-690

Unavailable

3

HANDLEBAR (NOT AVAILABLE) This part replaces 53100-074-000.

53100-074-690

Unavailable

3

HANDLEBAR (NOT AVAILABLE)

53100-074-690

Unavailable

4

HOLDER, HANDLEBAR (UPPER)

53131-028-000

$6.41

4

HOLDER A1, HANDLEBAR (UPPER) This part replaces 95014-21100.

95014-21101

$6.02

4

HOLDER A1, HANDLEBAR (UPPER)

95014-21101

$6.02

5

STEM, STEERING *NH35* (CLOUD SILVER) (NOT AVAILABLE)

53200-074-000AU

Unavailable

5

STEM, STEERING (NOT AVAILABLE)

53200-074-000Z

Unavailable

6

RACE, STEERING TOP CONE This part replaces 53211-028-000.

53211-028-010

$10.18

6

RACE, STEERING CONE (UPPER)

53211-028-010

$10.18

6

RACE, STEERING TOP CONE This part replaces 53211-028-305.

53211-028-010

$10.18

7

DUST SEAL, STEERING HEAD This part replaces 53214-001-010.

53214-GJG-C20

$2.40

8

WASHER, STEERING HEAD DUST SEAL

53215-001-000

$2.74

9

RACE, STEERING CONE (LOWER) This part replaces 53212-030-000.

53212-030-010

$9.85

9

RACE, STEERING CONE (LOWER)

53212-030-010

$9.85

9

RACE, STEERING CONE (LOWER) This part replaces 53212-937-000.

53212-030-010

$9.85

9

RACE, STEERING CONE (LOWER) This part replaces 53217-030-305.

53212-030-010

$9.85

10

THREAD, STEERING HEAD TOP

53220-074-000

$14.54

11

BRIDGE, FORK TOP (NOT AVAILABLE)

53231-074-000

Unavailable

12

SPACER, FORK TOP BRIDGE

53233-074-000

Unavailable

13

SWITCH, HANDLE LOCK (NOT AVAILABLE)

35010-001-010

Unavailable

13

SWITCH, HANDLE LOCK (NOT AVAILABLE) This part replaces 53600-001-020.

35010-001-010

Unavailable

14

FENDER, FR. (NOT AVAILABLE)

61100-074-000Z

Unavailable

15

BOLT, HEX. (6X28)

90117-065-000

$2.43

16

BOLT, FORK TOP BRIDGE (NOT AVAILABLE)

90124-074-000

Unavailable

17

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.66

18

NUT, STEERING STEM This part replaces 90304-011-000.

90304-159-000

$6.71

18

NUT, STEERING STEM

90304-159-000

$6.71

18

NUT, STEERING STEM This part replaces 95020-11100.

90304-159-000

$6.71

19

WASHER, STEERING STEM This part replaces 90503-011-000.

90503-051-870

$2.62

19

WASHER, STEERING STEM

90503-051-870

$2.62

20

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.43

20

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.43

20

BOLT, HEX. (6X12)

92101-06012-0A

$1.43

21

BOLT, HEX. (6X35) This part replaces 92000-06036.

92201-06035-0A

Unavailable

21

BOLT, HEX. (6X35) This part replaces 92200-06035.

92201-06035-0A

Unavailable

21

BOLT, HEX. (6X36)

92201-06035-0A

Unavailable

22

BOLT, HEX. (8X45) This part replaces 92000-08045.

92101-08045-0A

$2.71

22

BOLT, HEX. (8X45) This part replaces 92000-08045-0A.

92101-08045-0A

$2.71

22

BOLT, HEX. (8X45) This part replaces 92000-08045-00.

92101-08045-0A

$2.71

22

BOLT, HEX. (8X45)

92101-08045-0A

$2.71

23

NUT, HEX. (8MM) This part replaces 94001-08000.

94030-08000

Unavailable

23

NUT, HEX. (8MM)

94030-08000

Unavailable

23

NUT, HEX. (8MM) This part replaces 94030-08200.

94030-08000

Unavailable

24

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

24

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

24

WASHER, PLAIN (6MM)

94101-06800

Unavailable

25

WASHER, PLAIN (8MM)

94101-08000

Unavailable

26

WASHER, SPRING (8MM)

94111-08000

Unavailable

27

BALL, STEEL (#6) (3/16)

96211-06000

Unavailable
