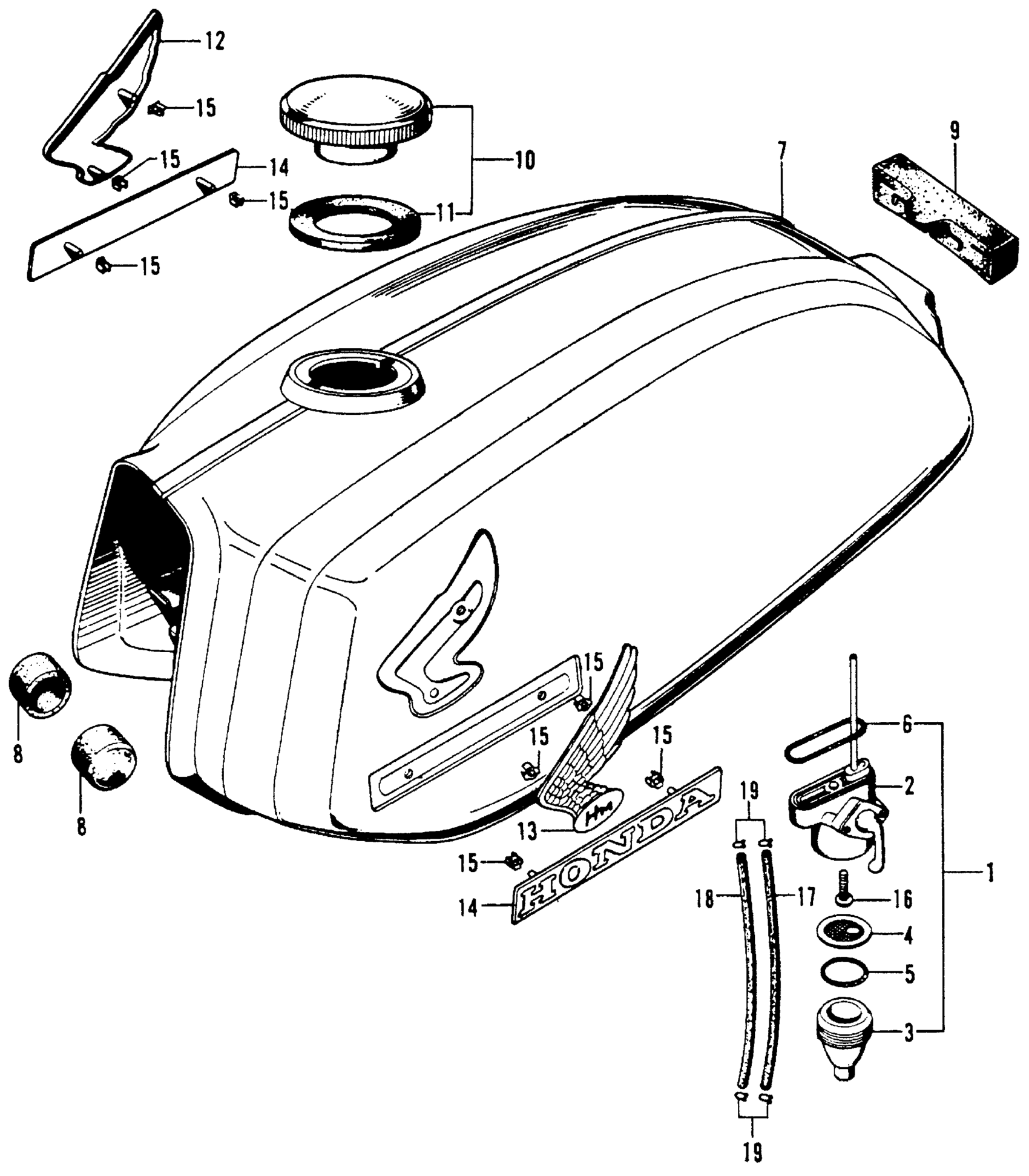

Honda SL90A MOTORCYCLE, JPN, VIN# SL90-100001 FUEL TANK Diagram

#

Description
Price

1

PETCOCK ASSY. This part replaces 16950-028-010.

16950-070-700

$41.57

1

PETCOCK ASSY. This part replaces 16950-028-015.

16950-070-700

$41.57

1

PETCOCK ASSY.

16950-070-700

$41.57

2

BODY SET, PETCOCK (NOT AVAILABLE)

16951-028-010

Unavailable

3

CUP, FUEL STRAINER

16952-028-000

Unavailable

4

SCREEN, FUEL STRAINER

16957-028-000

$16.22

5

GASKET SET, PETCOCK (CONTAINS 1 LARGE & 1 SMALL. USE AS NEEDED)

16080-898-631

$24.34

5

O-RING (2.4X18.6) This part replaces 16955-283-000.

16075-GHB-B00

$4.67

5

O-RING (2.4X18.6) This part replaces 16958-011-000.

16075-GHB-B00

$4.67

5

O-RING (2.4X18.6) This part replaces 16958-028-000.

16075-GHB-B00

$4.67

6

GASKET, PETCOCK BODY

16997-273-006

$6.74

7

TANK, FUEL (NOT AVAILABLE)

17500-074-000Z

Unavailable

8

RUBBER, FR. FUEL TANK (NOT AVAILABLE)

17611-240-000

Unavailable

9

RUBBER, RR. FUEL TANK

17613-051-010

$9.78

10

CAP, FUEL FILLER This part replaces 17620-292-020.

17620-402-020

$17.03

10

CAP, FUEL FILLER This part replaces 17620-317-000.

17620-402-020

$17.03

10

CAP, FUEL FILLER This part replaces 17620-329-000.

17620-402-020

$17.03

10

CAP, FUEL FILLER This part replaces 17620-329-010.

17620-402-020

$17.03

10

CAP, FUEL FILLER This part replaces 17620-402-000.

17620-402-020

$17.03

10

CAP, FUEL FILLER This part replaces 17620-402-010.

17620-402-020

$17.03

11

GASKET (39X58X3) This part replaces 17631-259-000.

17631-ZE1-000

$2.85

11

GASKET (39X58X3) This part replaces 17631-329-000.

17631-ZE1-000

$2.85

11

GASKET (39X58X3) This part replaces 17631-329-003.

17631-ZE1-000

$2.85

12

EMBLEM A, R. FUEL TANK (NOT AVAILABLE)

87121-286-010

$46.33

13

EMBLEM A, L. FUEL TANK (NOT AVAILABLE)

87122-286-010

Unavailable

14

EMBLEM B, FUEL TANK (NOT AVAILABLE)

87123-286-010

Unavailable

15

NUT, EMBLEM CLAMP This part replaces 87311-516-000.

87311-634-600

$4.79

15

NUT, EMBLEM CLAMP

87311-634-600

$4.79

16

SCREW, PAN (6X16) This part replaces 93500-06016.

93500-06016-0A

$1.49

16

SCREW, PAN (6X16)

93500-06016-0A

$1.49

17

BULK HOSE, FUEL (4.5X3000) (4.5)

95001-45003-60M

$36.67

17

TUBE (4.5) This part replaces 95001-45000-90.

95001-45000-40

Unavailable

17

TUBE (4.5) This part replaces 95001-45100.

95001-45000-40

Unavailable

17

TUBE (4.5) This part replaces 95001-45100-90.

95001-45000-40

Unavailable

18

TUBE (4.5) This part replaces 95001-45000.

95001-45000-40

Unavailable

18

BULK HOSE, FUEL (4.5X3000) (4.5)

95001-45003-60M

$36.67

18

TUBE (4.5) This part replaces 95001-45000-90.

95001-45000-40

Unavailable

18

TUBE (4.5) This part replaces 95001-45085.

95001-45000-40

Unavailable

18

TUBE (4.5) This part replaces 95001-45100.

95001-45000-40

Unavailable

18

TUBE (4.5) This part replaces 95001-45100-90.

95001-45000-40

Unavailable

18

TUBE (4.5) This part replaces 95001-45105.

95001-45000-40

Unavailable

18

TUBE (4.5) This part replaces 95001-45120.

95001-45000-40

Unavailable

18

TUBE (4.5) This part replaces 95001-45130.

95001-45000-40

Unavailable

18

TUBE (4.5) This part replaces 95001-45140.

95001-45000-40

Unavailable

18

TUBE (4.5) This part replaces 95001-45150.

95001-45000-40

Unavailable

18

TUBE (4.5) This part replaces 95001-45180.

95001-45000-40

Unavailable

18

TUBE (4.5) This part replaces 95001-45190.

95001-45000-40

Unavailable

18

TUBE (4.5) This part replaces 95001-45210.

95001-45000-40

Unavailable

18

TUBE (4.5) This part replaces 95001-45475.

95001-45000-40

Unavailable

19

CLIP, TUBE (4.5)

95002-45000

$1.49
