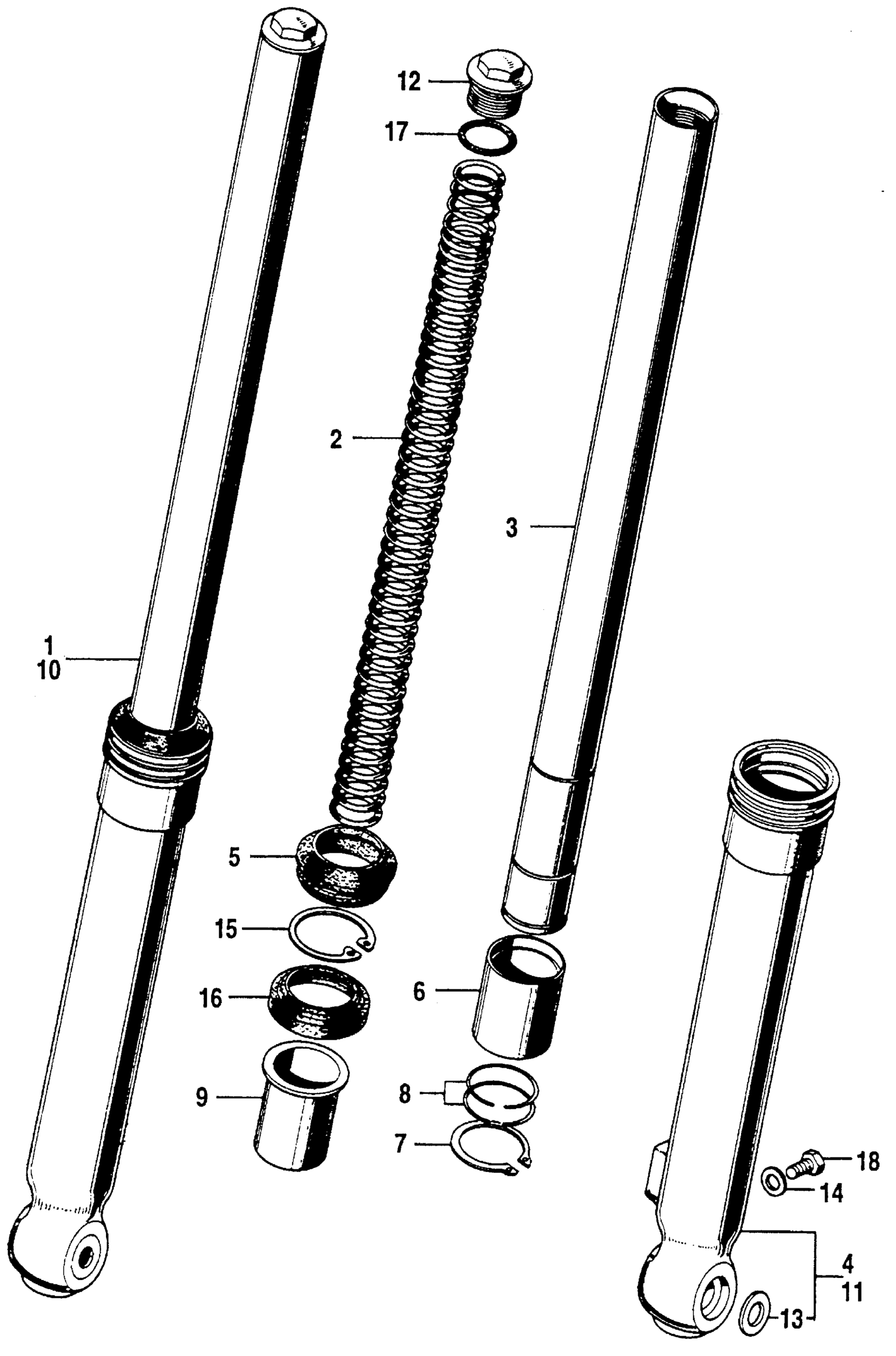

Honda SL90A MOTORCYCLE, JPN, VIN# SL90-100001 FRONT FORK Diagram

FORK ASSY., R. FR.

51400-074-000

Unavailable

SPRING, FR. FORK (NOT AVAILABLE) This part replaces 51401-074-000.

51401-074-010

Unavailable

SPRING, FR. FORK (NOT AVAILABLE)

51401-074-010

Unavailable

PIPE, FR. FORK (NOT AVAILABLE)

51410-074-000

Unavailable

CASE, R. FR. FORK (LOWER)

51420-074-000

Unavailable

DUST SEAL, FR. FORK (NOT AVAILABLE) This part replaces 51425-074-003.

51425-074-305

Unavailable

DUST SEAL, FR. FORK (NOT AVAILABLE)

51425-074-305

Unavailable

PISTON, FR. FORK (NOT AVAILABLE) This part replaces 51442-230-320.

94603-31200

Unavailable

PISTON, FR. FORK (NOT AVAILABLE)

94603-31200

Unavailable

RING, FR. FORK PISTON SNAP (NOT AVAILABLE)

51445-216-000

Unavailable

RING, FR. FORK PISTON STOPPER (NOT AVAILABLE)

51447-216-000

Unavailable

GUIDE, FR. FORK PIPE (NOT AVAILABLE)

51451-216-010

Unavailable

FORK ASSY., L. FR.

51500-074-000

Unavailable

CASE, L. FR. FORK (LOWER)

51520-074-000

Unavailable

BOLT D1, FORK This part replaces 90123-074-000.

94605-27101

$8.00

BOLT D1, FORK This part replaces 94605-27100.

94605-27101

$8.00

BOLT D1, FORK

94605-27101

$8.00

WASHER (12.5MM)

90528-229-000

$2.02

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

CIRCLIP (INNER) (41MM) (NOT AVAILABLE) This part replaces 90667-216-000.

94536-41120

Unavailable

CIRCLIP (INNER) (41MM) (NOT AVAILABLE)

94536-41120

Unavailable

OIL SEAL, FR. FORK (NOT AVAILABLE) This part replaces 91255-074-003.

91255-074-305

Unavailable

OIL SEAL, FR. FORK (NOT AVAILABLE)

91255-074-305

Unavailable

O-RING (23X2.4) This part replaces 91305-028-305.

94608-30000

$1.49

O-RING (23X2.4)

94608-30000

$1.49

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

BOLT, HEX. (6X8)

92101-06008-0A

$1.49
