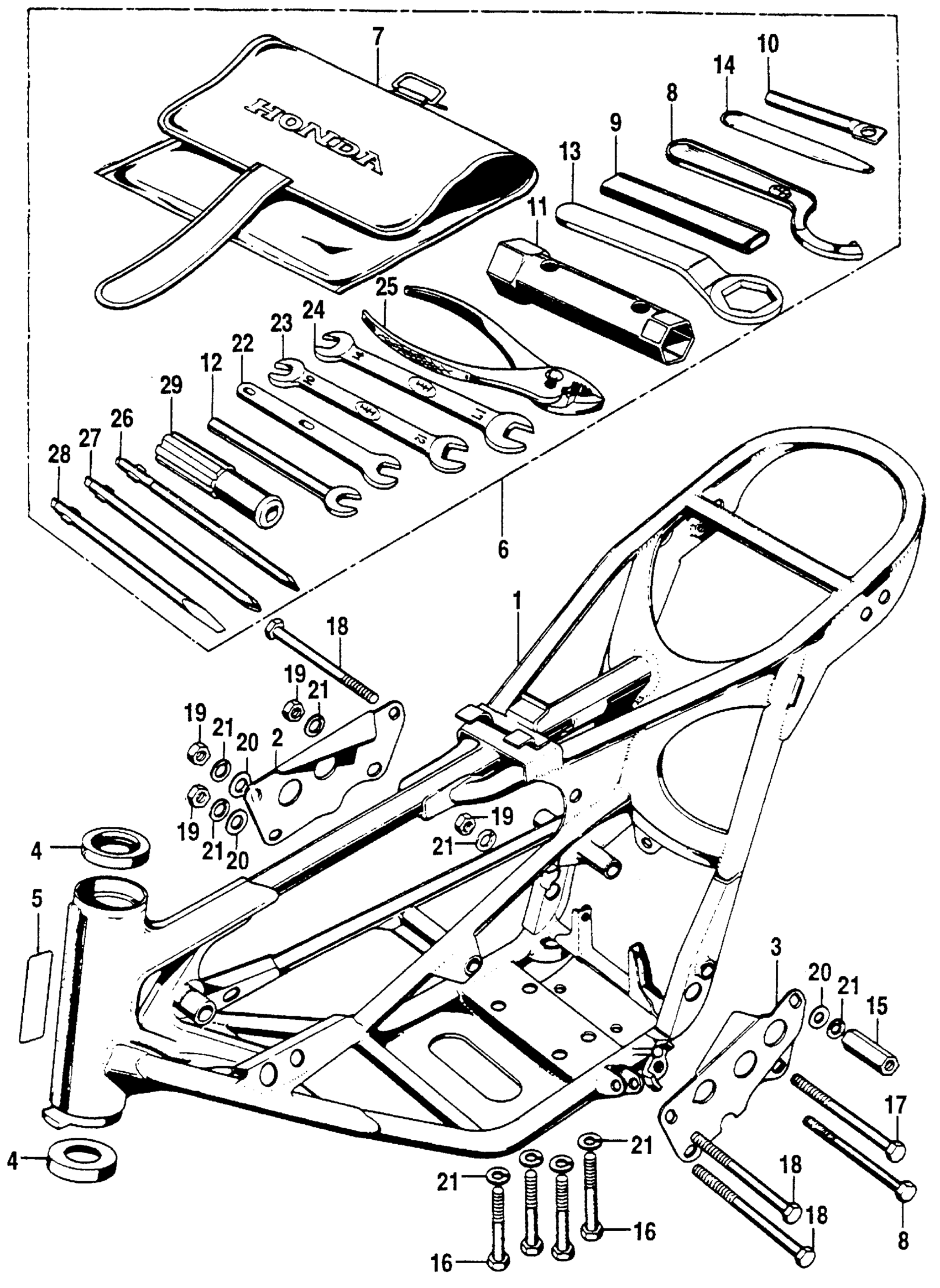

Honda SL90A MOTORCYCLE, JPN, VIN# SL90-100001 FRAME + TOOL Diagram

#

Description
Price

1

FRAME

50100-074-000Z

Unavailable

2

PLATE, R. ENGINE HANGER (NOT AVAILABLE)

50201-074-010Z

Unavailable

3

PLATE, L. ENGINE HANGER (NOT AVAILABLE)

50202-074-010Z

Unavailable

4

RACE, STEERING BALL This part replaces 50301-041-000.

50301-041-010

$12.39

4

RACE, STEERING TOP BALL

50301-041-010

$12.39

4

RACE, STEERING BALL This part replaces 50301-041-305.

50301-041-010

$12.39

5

LABEL, CAUTION (NOT AVAILABLE)

87131-045-670

Unavailable

6

TOOL SET (NOT AVAILABLE)

89010-074-000

Unavailable

7

BAG, TOOL (160MM) This part replaces 89101-011-010.

99008-01600

$2.22

7

BAG, TOOL (160MM) This part replaces 89101-028-010.

99008-01600

$2.22

7

BAG, TOOL (160MM) This part replaces 89101-107-000.

99008-01600

$2.22

7

BAG, TOOL (160MM)

99008-01600

$2.22

8

WRENCH (45MM) (OPEN END) (NOT AVAILABLE)

89206-283-000

Unavailable

9

WRENCH, BOX (9MM) (NOT AVAILABLE)

89211-001-000

Unavailable

10

WRENCH, SOCKET (3MM)

89215-001-000

Unavailable

10

WRENCH, SOCKET (3MM) (NOT AVAILABLE)

89215-107-000

Unavailable

11

WRENCH, SPARK PLUG

89216-074-000

Unavailable

11

WRENCH, SPARK PLUG

89216-107-000

Unavailable

11

WRENCH, BOX (P18X19)

99004-18190

$3.40

12

SPANNER, BAR HANDLE (8MM)

89218-028-000

Unavailable

12

BAR B, HANDLE

99005-02000

$2.52

13

WRENCH, BOX (27MM) (NOT AVAILABLE)

89219-074-000

Unavailable

14

GAUGE, TAPPET CLEARANCE

89231-001-000

Unavailable

15

NUT, ENGINE HANGER (NOT AVAILABLE)

90125-074-000

Unavailable

16

BOLT, HEX. (8X45) This part replaces 92000-08045.

92101-08045-0A

$2.13

16

BOLT, HEX. (8X45) This part replaces 92000-08045-0A.

92101-08045-0A

$2.13

16

BOLT, HEX. (8X45) This part replaces 92000-08045-00.

92101-08045-0A

$2.13

16

BOLT, HEX. (8X45)

92101-08045-0A

$2.13

17

BOLT, HEX. (8X108) (SOURCE: VINTAGE PARTS INC.)

92200-08108

Unavailable

18

BOLT, HEX. (8X118) (SOURCE: VINTAGE PARTS INC.)

92200-08118

Unavailable

19

NUT, HEX. (8MM) This part replaces 94001-08000.

94030-08000

$1.49

19

NUT, HEX. (8MM)

94030-08000

$1.49

19

NUT, HEX. (8MM) This part replaces 94030-08200.

94030-08000

$1.49

20

WASHER, PLAIN (8MM)

94101-08000

$1.49

21

WASHER, SPRING (8MM)

94111-08000

$1.49

22

WRENCH (9MM) (OPEN END) (NOT AVAILABLE)

99001-09000

Unavailable

23

WRENCH (10X12) (OPEN END)

99001-10120

$4.69

24

WRENCH (14X17) (OPEN END)

99001-14170

$7.49

25

PLIERS (135) (KOWA) This part replaces 99002-13500.

89210-GBJ-J10

$13.57

26

SCREWDRIVER 1, PHILLIPS (NO.2)

99003-10000

$3.27

27

SCREWDRIVER 2, PHILLIPS (NO.3)

99003-20000

$3.27

28

SCREWDRIVER 3, STRAIGHT SLOT (NO.2)

99003-30000

$3.27

29

GRIP

99003-50000

$3.27
