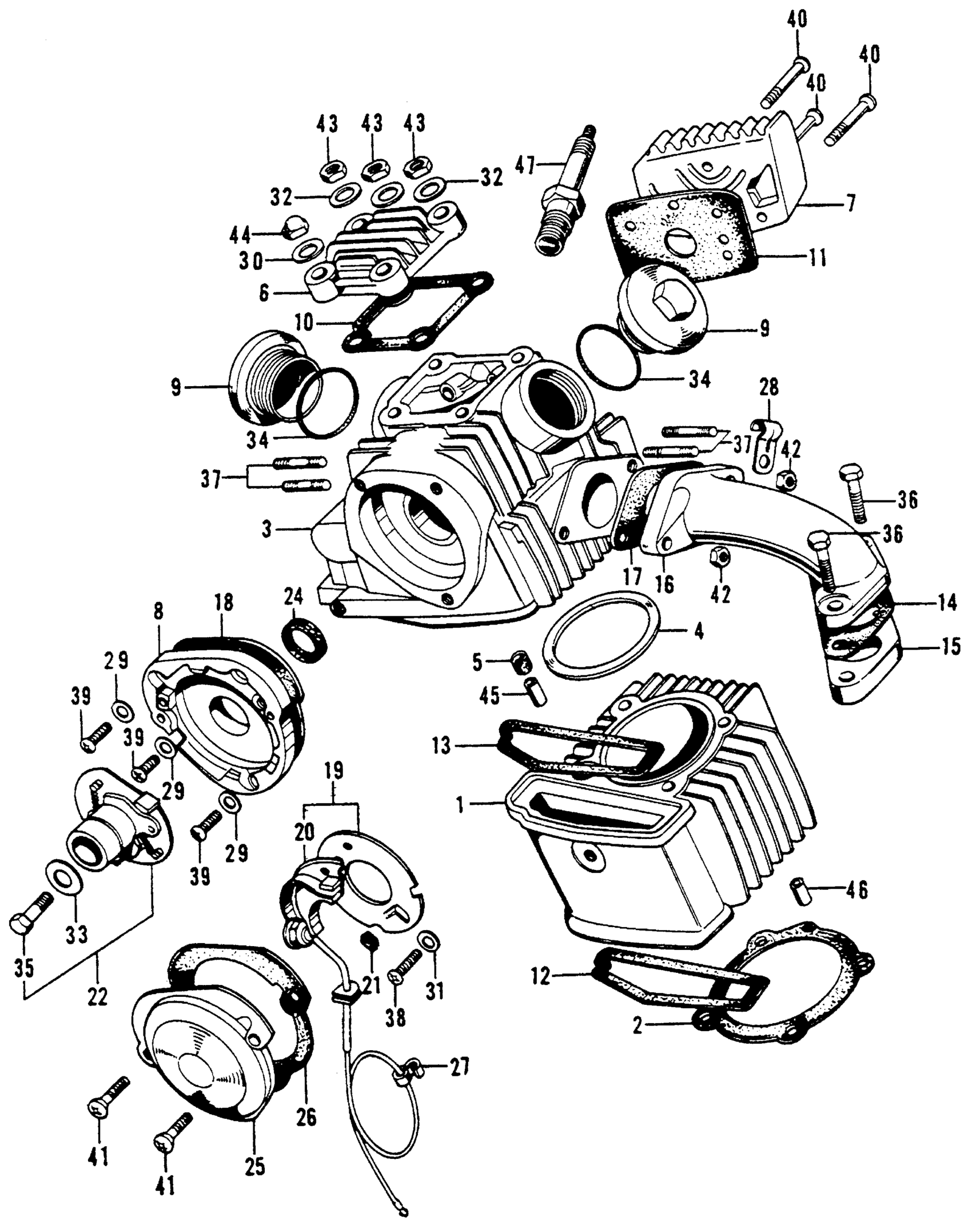

Honda SL90A MOTORCYCLE, JPN, VIN# SL90-100001 CYLINDER + CYLINDER HEAD + POINT BASE Diagram

#

Description
Price

1

CYLINDER (NOT AVAILABLE)

12100-028-150

Unavailable

1

CYLINDER (NOT AVAILABLE) This part replaces 12100-056-670.

12100-028-150

Unavailable

2

GASKET, CYLINDER This part replaces 12191-028-020.

12191-121-630

$7.16

2

GASKET, CYLINDER This part replaces 12191-028-306.

12191-121-630

$7.16

2

GASKET, CYLINDER

12191-121-630

$7.16

3

CYLINDER HEAD (NOT AVAILABLE)

12200-028-120

Unavailable

4

GASKET, CYLINDER HEAD

12251-028-030

Unavailable

5

GASKET, CYLINDER STUD This part replaces 12261-028-000.

12261-105-690

$7.96

5

GASKET, CYLINDER STUD

12261-105-690

$7.96

6

COVER, CYLINDER HEAD (NOT AVAILABLE) This part replaces 12301-028-000.

12301-028-010

Unavailable

6

COVER, CYLINDER HEAD (NOT AVAILABLE)

12301-028-010

Unavailable

7

COVER, VALVE ROCKER ARM SIDE This part replaces 12331-028-010.

12331-028-020

Unavailable

7

COVER, VALVE ROCKER ARM SIDE

12331-028-020

Unavailable

8

BASE, POINTS (NOT AVAILABLE) This part replaces 12332-028-030.

12332-028-040

Unavailable

9

CAP, VALVE ADJ.

12361-028-000

$8.80

10

GASKET, CYLINDER HEAD COVER This part replaces 12391-028-000.

12391-121-630

$5.23

10

GASKET, CYLINDER HEAD COVER This part replaces 12391-028-306.

12391-121-630

$5.23

10

GASKET, CYLINDER HEAD COVER

12391-121-630

$5.23

11

GASKET, R. CYLINDER HEAD SIDE COVER This part replaces 12394-028-010.

12394-121-630

$4.84

11

GASKET, R. CYLINDER HEAD SIDE COVER This part replaces 12394-028-020.

12394-121-630

$4.84

11

GASKET, R. CYLINDER HEAD SIDE COVER

12394-121-630

$4.84

12

GASKET A, CAM CHAIN CHAMBER

12901-028-020

$3.77

13

GASKET B, CAM CHAIN CHAMBER This part replaces 12902-028-020.

12902-121-710

$30.85

13

GASKET B, CAM CHAIN CHAMBER This part replaces 12902-105-690.

12902-121-710

$30.85

13

GASKET B, CAM CHAIN CHAMBER

12902-121-710

$30.85

14

GASKET, CARBURETOR This part replaces 16201-028-000.

16201-028-306

Unavailable

15

INSULATOR, IN. PIPE (NOT AVAILABLE)

16211-028-000

Unavailable

16

PIPE, INLET

17111-056-000

Unavailable

17

GASKET, IN. PIPE This part replaces 17119-046-000.

17119-046-306

$5.04

17

GASKET, IN. PIPE

17119-046-306

$5.04

18

GASKET, POINTS BASE This part replaces 30392-028-020.

30392-028-306

Unavailable

18

GASKET, POINTS BASE

30392-028-306

Unavailable

19

POINTS ASSY. (DENSO)

30200-107-014

$58.62

20

POINTS (KOKUSAN)

30202-028-003

Unavailable

20

POINTS (DENSO)

30202-107-004

$43.04

20

POINTS (TOYO)

30202-107-154

$27.89

20

POINTS (DENSO) This part replaces 30202-216-004.

30202-107-004

$43.04

21

FELT, OIL (KOKUSAN) (NOT AVAILABLE)

30205-028-003

Unavailable

21

FELT, OIL (KOKUSAN) (NOT AVAILABLE) This part replaces 30205-028-004.

30205-028-003

Unavailable

22

ADVANCER ASSY., SPARK (TOYO) (NOT AVAILABLE) This part replaces 30220-053-003.

30220-053-154

Unavailable

22

ADVANCER ASSY., SPARK (DENSO)

30220-053-004

Unavailable

22

ADVANCER ASSY., SPARK (TOYO) (NOT AVAILABLE)

30220-053-154

Unavailable

24

OIL SEAL (13X22X5) This part replaces 30362-028-000.

91201-028-005

$8.11

24

OIL SEAL (13X22X5) This part replaces 91201-028-000.

91201-028-005

$8.11

24

OIL SEAL (13X22X5)

91201-028-005

$8.11

25

COVER, POINTS

30370-028-000

Unavailable

26

GASKET, POINT COVER This part replaces 30391-028-000.

30391-459-952

$4.21

26

GASKET, POINT COVER This part replaces 30391-459-950.

30391-459-952

$4.21

27

CLIP, POINT LEAD WIRE (NOT AVAILABLE)

32901-028-000

Unavailable

28

CLIP, COIL CABLE

32906-028-000

Unavailable

29

WASHER, SEALING (6MM)

90441-028-010

$2.92

30

WASHER, SEALING (8MM)

90442-028-000

$1.77

31

WASHER (5MM)

90482-028-000

$2.09

32

WASHER (8MM)

90483-028-000

$1.51

33

WASHER, SPARK ADVANCER SETTING

90486-028-000

$2.13

34

O-RING (33.5X3.0) This part replaces 91302-200-000.

91304-HB3-003

$7.70

34

O-RING (33.5X3.0) This part replaces 91302-943-003.

91304-HB3-003

$7.70

34

O-RING (33.5X3.0)

91304-HB3-003

$7.70

35

BOLT, HEX. (6X14) BOLT, FLANGE (6X14) This part replaces 92000-06014.

92101-06014-0A

$1.49

35

BOLT, HEX. (6X14)

92101-06014-0A

$1.49

36

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

36

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

37

BOLT, STUD (6X18) This part replaces 92700-06030.

92900-06018-0B

$1.55

37

BOLT, STUD (6X18) This part replaces 92700-06031.

92900-06018-0B

$1.55

37

BOLT, STUD (6X18) This part replaces 92700-06032.

92900-06018-0B

$1.55

37

BOLT, STUD (6X18) This part replaces 92700-06032-30.

92900-06018-0B

$1.55

37

BOLT, STUD (6X18)

92900-06018-0B

$1.55

38

SCREW, PAN (5X10)

93500-05010-0A

$1.49

39

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

39

SCREW, PAN (6X12)

93500-06012-0A

$1.49

39

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

40

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

40

SCREW, PAN (6X20)

93500-06020-0A

$1.49

41

SCREW, OVAL (5X22)

93700-05022-0B

$1.49

42

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

42

NUT, HEX. (6MM)

94001-06200-0S

$1.49

43

NUT, HEX. (8MM) This part replaces 94001-08000.

94030-08000

$1.49

43

NUT, HEX. (8MM)

94030-08000

$1.49

43

NUT, HEX. (8MM) This part replaces 94030-08200.

94030-08000

$1.49

44

NUT, CAP (8MM) This part replaces 90012-286-000.

94021-08000-0S

$1.55

44

NUT, CAP (8MM) This part replaces 94021-08000.

94021-08000-0S

$1.55

44

NUT, CAP (8MM)

94021-08000-0S

$1.55

44

NUT, CAP (8MM) This part replaces 94022-08000-0S.

94021-08000-0S

$1.55

45

PIN A, DOWEL (10X14)

94301-10140

$2.28

46

PIN A, DOWEL (10X20)

94301-10200

$2.35

47

SPARK PLUG (D8HA) (NGK) This part replaces 98066-58714.

98066-58717

$2.44

47

SPARK PLUG (D8HA) (NGK)

98066-58717

$2.44
