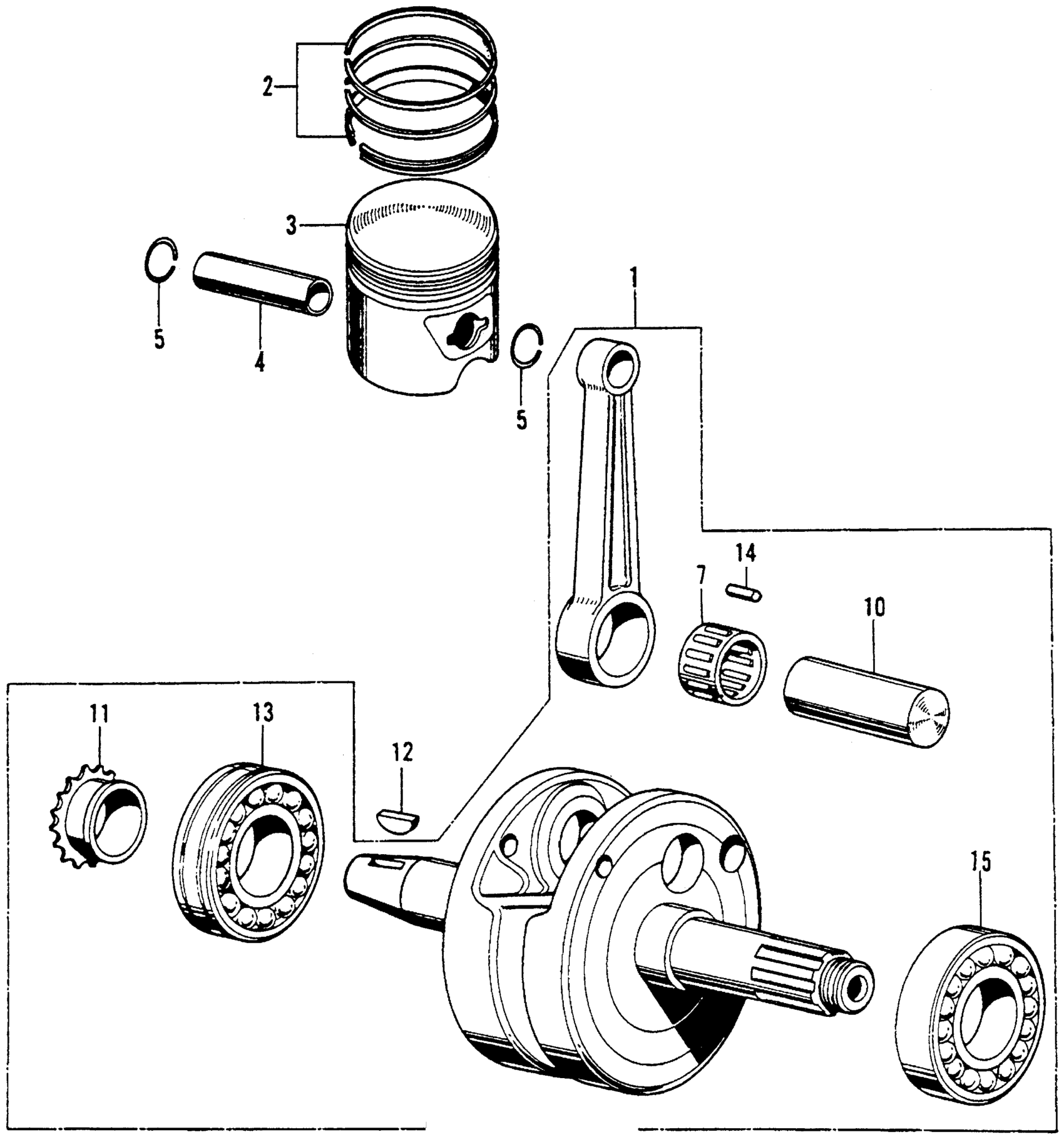

Honda SL90A MOTORCYCLE, JPN, VIN# SL90-100001 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY. (NOT AVAILABLE)

13000-056-680

Unavailable

2

RING SET, PISTON (OS 0.25)

130A1-121-762

Unavailable

2

RING SET, PISTON (OS 0.50)

130B1-121-762

Unavailable

2

RING SET, PISTON (0.75)

130C1-121-762

Unavailable

2

RING SET, PISTON (1.00)

130D1-121-762

Unavailable

2

RING SET, PISTON This part replaces 13010-028-020.

13011-121-762

$23.12

2

RING SET, PISTON This part replaces 13010-028-025.

13011-121-762

$23.12

2

RING SET, PISTON This part replaces 13010-028-035.

13011-121-762

$23.12

2

RING SET, PISTON This part replaces 13010-121-732.

13011-121-762

$23.12

2

RING SET, PISTON

13011-121-762

$23.12

2

RING SET, PISTON (OS 0.25) This part replaces 13020-028-020.

130A1-121-762

Unavailable

2

RING SET, PISTON (OS 0.25) This part replaces 13020-028-025.

130A1-121-762

Unavailable

2

RING SET, PISTON (OS 0.25) This part replaces 13020-028-035.

130A1-121-762

Unavailable

2

RING SET, PISTON (OS 0.50) This part replaces 13030-028-020.

130B1-121-762

Unavailable

2

RING SET, PISTON (OS 0.50) This part replaces 13030-028-025.

130B1-121-762

Unavailable

2

RING SET, PISTON (OS 0.50) This part replaces 13030-028-035.

130B1-121-762

Unavailable

2

RING SET, PISTON (OS 0.50) This part replaces 13030-121-732.

130B1-121-762

Unavailable

2

RING SET, PISTON (OS 0.50) This part replaces 13031-028-005.

130B1-121-762

Unavailable

2

RING SET, PISTON (OS 0.50) This part replaces 13031-102-732.

130B1-121-762

Unavailable

2

RING SET, PISTON (OS 0.50) This part replaces 13031-102-733.

130B1-121-762

Unavailable

2

RING SET, PISTON (0.75) This part replaces 13040-028-020.

130C1-121-762

Unavailable

2

RING SET, PISTON (0.75) This part replaces 13040-028-025.

130C1-121-762

Unavailable

2

RING SET, PISTON (0.75) This part replaces 13040-028-035.

130C1-121-762

Unavailable

2

RING SET, PISTON (0.75) This part replaces 13040-121-732.

130C1-121-762

Unavailable

2

RING SET, PISTON (1.00) This part replaces 13050-028-020.

130D1-121-762

Unavailable

2

RING SET, PISTON (1.00) This part replaces 13050-028-025.

130D1-121-762

Unavailable

2

RING SET, PISTON (1.00) This part replaces 13050-028-035.

130D1-121-762

Unavailable

2

RING SET, PISTON (1.00) This part replaces 13050-121-732.

130D1-121-762

Unavailable

3

PISTON (STD)

13101-028-070

Unavailable

3

PISTON (OS 0.25)

13102-028-070

$37.74

3

PISTON (OS 0.50)

13103-028-070

Unavailable

3

PISTON (0.75)

13104-028-070

Unavailable

3

PISTON (1.00)

13105-028-070

Unavailable

4

PIN, PISTON

13111-028-000

$11.08

5

CLIP, PISTON PIN

13115-200-000

$1.49

5

CLIP, PISTON PIN (14MM)

94601-14000

$1.49

7

RETAINER, CONNECTING ROD ROLLER

13211-235-000

Unavailable

10

PIN, CRANK This part replaces 13381-028-000.

13381-121-761

Unavailable

10

PIN, CRANK

13381-121-761

Unavailable

11

SPROCKET, TIMING (15T)

14311-028-010

Unavailable

12

KEY, WOODRUFF

90741-253-000

Unavailable

13

BEARING, BALL (6305) This part replaces 91001-056-681.

91007-300-008

Unavailable

13

BEARING, BALL (6305)

91007-300-008

Unavailable

14

ROLLER, ROD (2.5X10)

91101-001-030

$2.92

15

BEARING, RADIAL BALL (6305) This part replaces 96100-63050.

96100-63050-00

$15.27

15

BEARING, RADIAL BALL (6305)

96100-63050-00

$15.27
