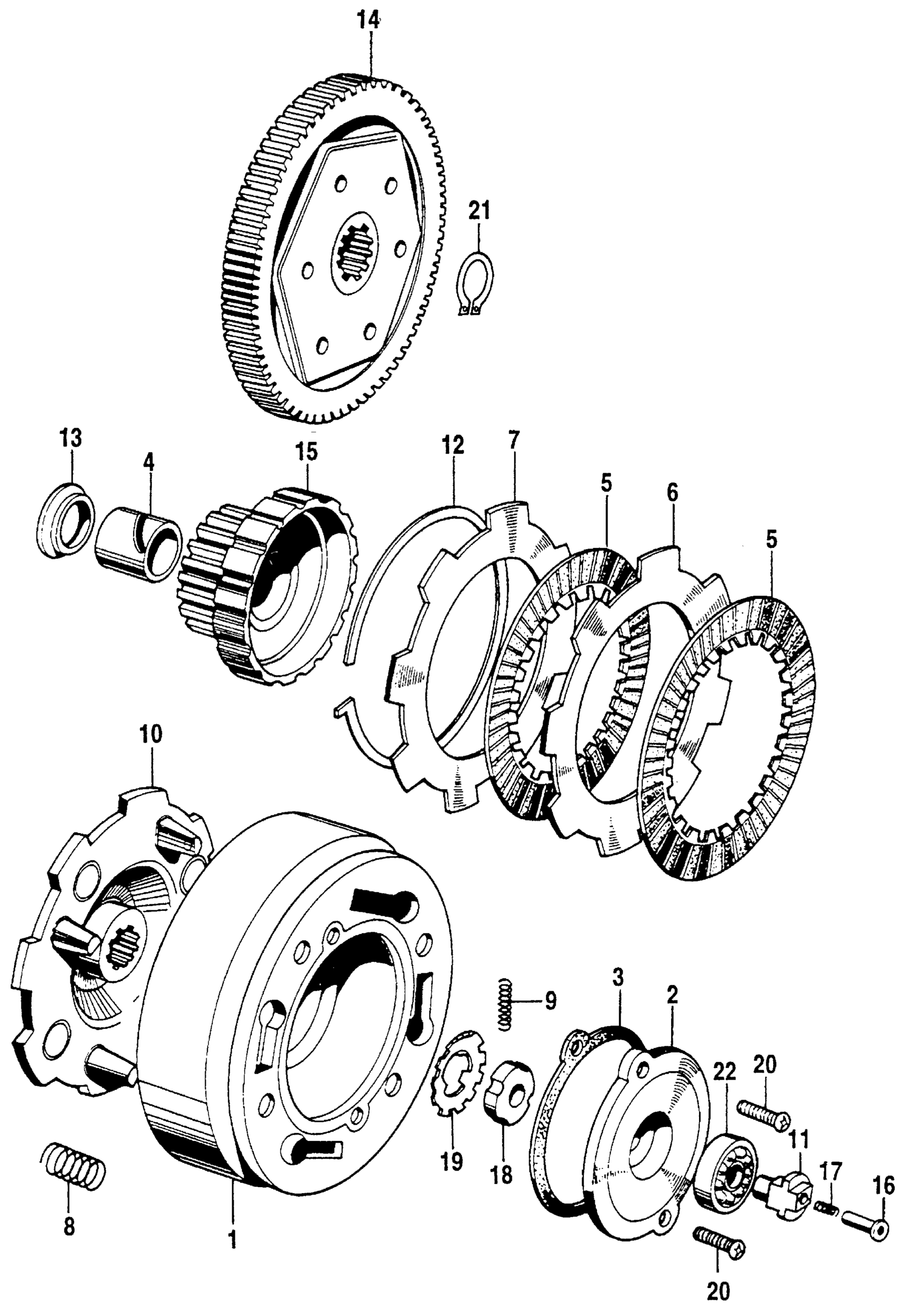

Honda SL90A MOTORCYCLE, JPN, VIN# SL90-100001 CLUTCH Diagram

#

Description
Price

1

CLUTCH (OUTER) (NOT AVAILABLE)

22101-028-020

Unavailable

2

COVER, CLUTCH (OUTER)

22111-028-010

Unavailable

3

GASKET, CLUTCH COVER This part replaces 22112-028-000.

22112-121-632

$3.60

3

GASKET, CLUTCH COVER This part replaces 22112-028-306.

22112-121-632

$3.60

3

GASKET, CLUTCH COVER This part replaces 22112-121-630.

22112-121-632

$3.60

4

GUIDE, CLUTCH CENTER This part replaces 22131-028-000.

22131-121-690

Unavailable

4

GUIDE, CLUTCH CENTER

22131-121-690

Unavailable

5

DISK, CLUTCH FRICTION This part replaces 22201-028-000.

22201-030-405

Unavailable

5

DISK, CLUTCH FRICTION

22201-030-405

Unavailable

6

PLATE A, CLUTCH (NOT AVAILABLE)

22311-030-000

Unavailable

7

PLATE B, CLUTCH (NOT AVAILABLE)

22321-030-000

Unavailable

8

SPRING, CLUTCH (NOT AVAILABLE)

22401-028-000

Unavailable

9

SPRING, CLUTCH DAMPER This part replaces 22421-001-000.

22421-035-000

$4.15

9

SPRING, CLUTCH DAMPER

22421-035-000

$4.15

10

PLATE, DRIVE (NOT AVAILABLE)

22511-028-010

Unavailable

11

LIFTER, CLUTCH (NOT AVAILABLE)

22831-028-000

Unavailable

12

SET-RING (102.5MM) This part replaces 22901-028-000.

22901-102-700

Unavailable

12

SET-RING (102.5MM)

22901-102-700

Unavailable

13

COLLAR (20MM) (NOT AVAILABLE)

22911-028-000

Unavailable

14

GEAR, PRIMARY DRIVEN (67T)

23110-028-000

Unavailable

15

GEAR, DRIVE (18T) (NOT AVAILABLE)

23111-030-000

Unavailable

16

GUIDE, OIL (NOT AVAILABLE)

25551-028-000

Unavailable

17

SPRING, OIL GUIDE (NOT AVAILABLE)

25555-028-000

Unavailable

17

SPRING, OIL GUIDE (NOT AVAILABLE) This part replaces 25555-028-010.

25555-028-000

Unavailable

18

NUT, LOCK (16MM) This part replaces 90231-028-000.

90231-KCS-651

$4.21

19

WASHER, LOCK (16MM)

90431-028-010

$2.75

20

SCREW, FLAT (5X12)

93600-05012-0A

$1.49

21

CIRCLIP (OUTER) (20MM)

94510-20000

$1.49

22

BEARING, RADIAL BALL (6000) This part replaces 96100-60000.

96100-60000-00

$8.13

22

BEARING, RADIAL BALL (6000)

96100-60000-00

$8.13
