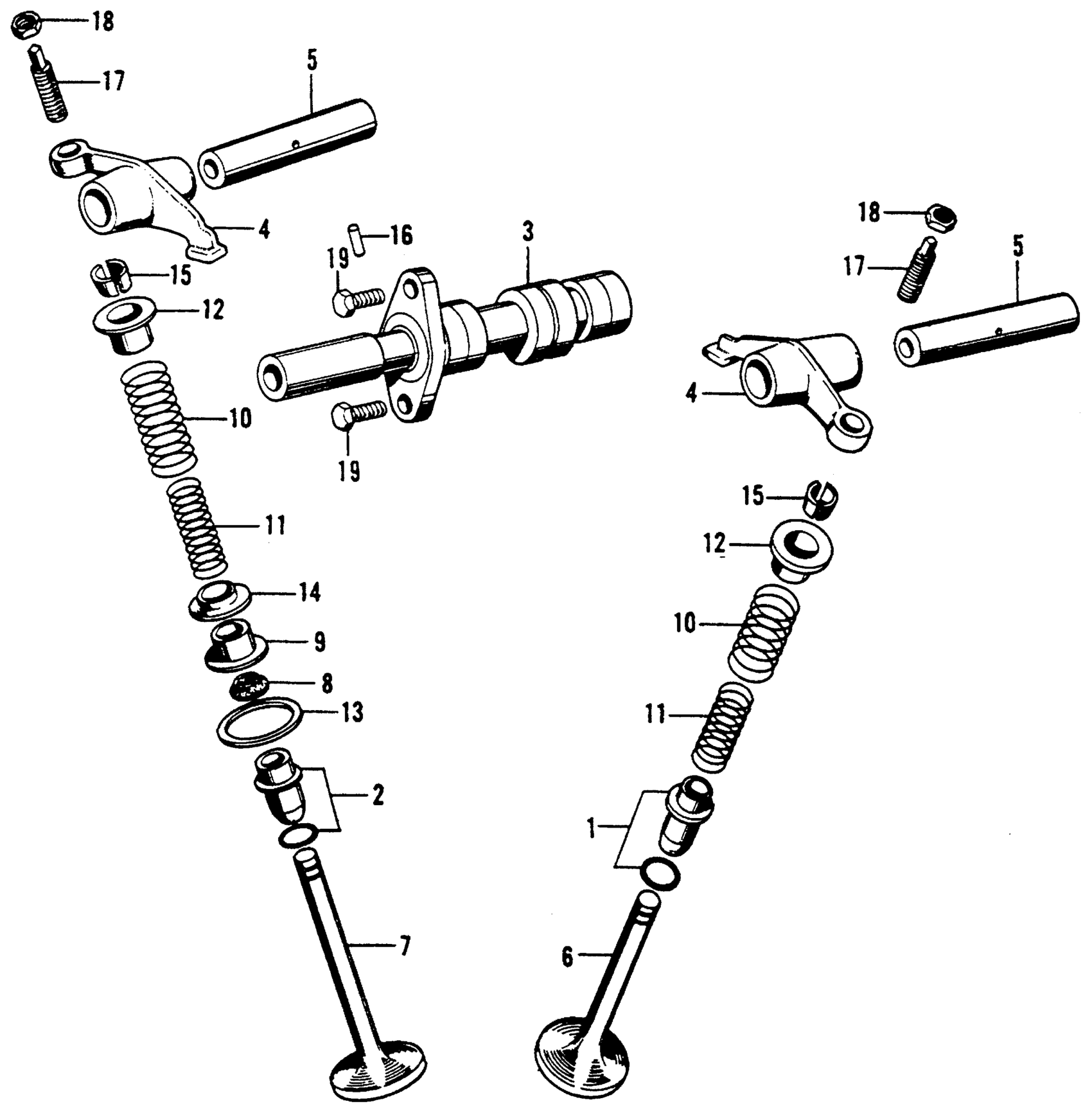

Honda SL90A MOTORCYCLE, JPN, VIN# SL90-100001 CAMSHAFT + VALVE Diagram

#

Description
Price

1

GUIDE, VALVE This part replaces 12021-VM6-000.

12021-943-000

Unavailable

1

GUIDE, VALVE This part replaces 12021-028-340.

12021-943-000

Unavailable

1

GUIDE, VALVE

12021-943-000

Unavailable

1

GUIDE, VALVE This part replaces 12201-028-340.

12021-943-000

Unavailable

2

GUIDE, IN./EX. VALVE

12021-128-405

$17.91

2

GUIDE, IN./EX. VALVE This part replaces 12023-028-330.

12021-128-405

$17.91

2

GUIDE, IN./EX. VALVE This part replaces 12023-943-000.

12021-128-405

$17.91

3

CAMSHAFT

14101-028-000

Unavailable

4

ARM, VALVE ROCKER This part replaces 14431-028-010.

14431-028-020

Unavailable

4

ARM, VALVE ROCKER

14431-028-020

Unavailable

5

SHAFT, VALVE ROCKER ARM

14451-028-010

Unavailable

6

VALVE, IN.

14711-028-000

Unavailable

7

VALVE, EX. This part replaces 14721-028-602.

14721-028-790

Unavailable

7

VALVE, EX.

14721-028-790

Unavailable

8

SEAL, VALVE STEM This part replaces 14730-028-000.

14730-028-013

$9.71

8

SEAL, VALVE STEM

14730-028-013

$9.71

9

CAP, VALVE STEM SEAL

14731-028-000

$4.35

10

SPRING, VALVE (OUTER)

14751-028-010

Unavailable

11

SPRING, VALVE (INNER)

14761-028-020

Unavailable

12

RETAINER, VALVE SPRING

14771-030-000

Unavailable

13

SEAT, VALVE SPRING

14775-028-010

$4.07

14

SEAT, VALVE SPRING (INNER)

14776-028-000

$4.37

15

COTTER, VALVE

14781-001-004

$4.95

15

COTTER, VALVE

14781-001-010

$5.66

16

PIN, CAMSHAFT (3X5.2)

30905-216-000

$2.67

17

SCREW, TAPPET ADJ. This part replaces 90012-200-000.

90012-333-000

$2.75

17

SCREW, TAPPET ADJ.

90012-333-000

$2.75

18

NUT, TAPPET ADJ.

90206-001-000

$1.66

19

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

19

BOLT, HEX. (6X10)

92101-06010-0A

$1.49
