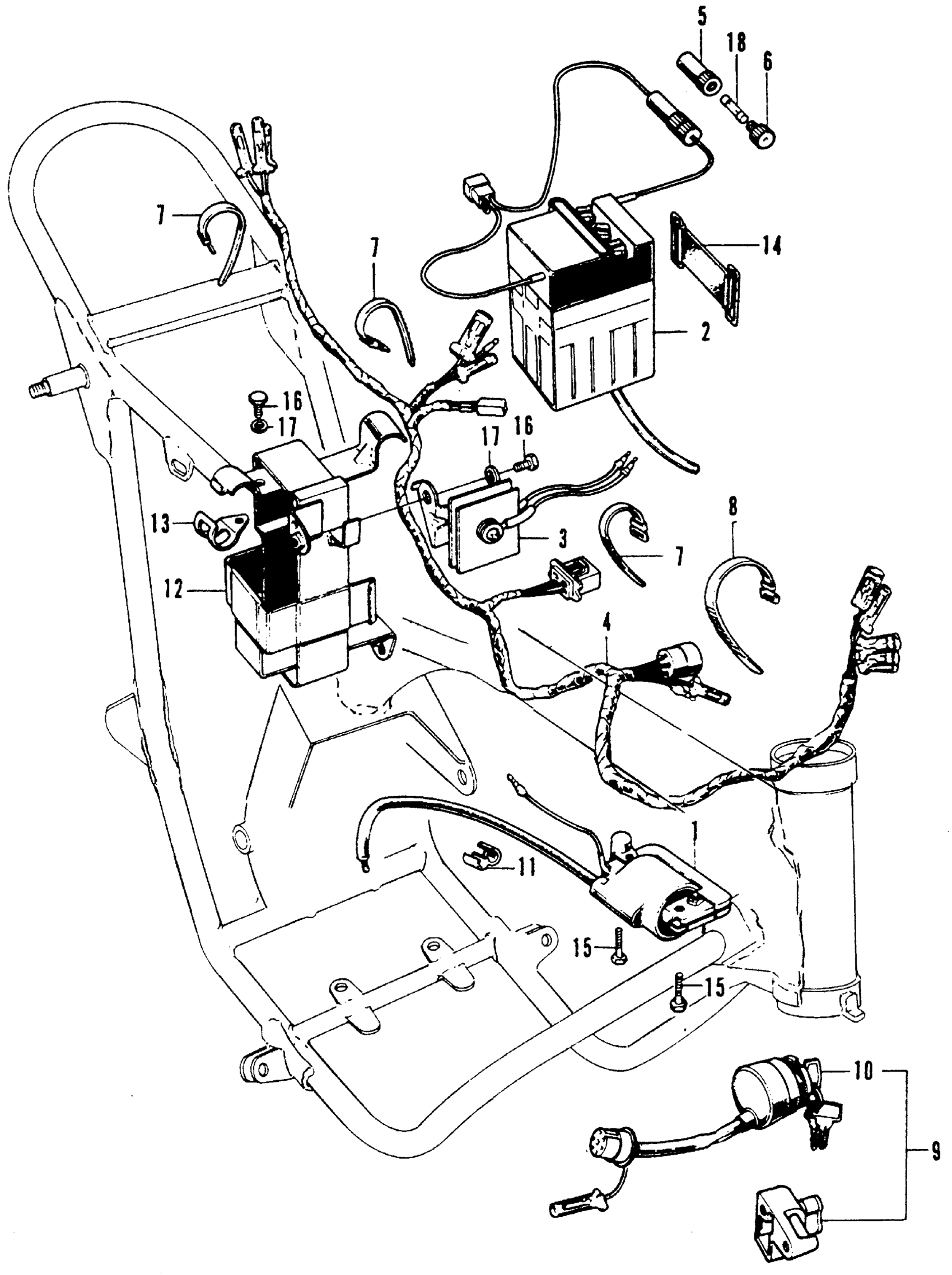

Honda SL70K1A MOTORCYCLE, JPN, VIN# SL70-1100001 WIRE HARNESS + BATTERY Diagram

#

Description
Price

1

COIL ASSY., IGNITION (NOT AVAILABLE)

30400-118-017

Unavailable

2

BATTERY (6N2) This part replaces 31500-098-971.

31500-147-505AH

Unavailable

2

BATTERY (6N2) This part replaces 31500-147-505.

31500-147-505AH

Unavailable

2

BATTERY (6N2) This part replaces 31500-147-671.

31500-147-505AH

Unavailable

2

BATTERY (6N2) This part replaces 31500-147-672.

31500-147-505AH

Unavailable

3

RECTIFIER ASSY.

31700-098-305

Unavailable

3

RECTIFIER ASSY. This part replaces 31700-098-921.

31700-098-305

Unavailable

3

RECTIFIER ASSY. This part replaces 31700-118-771.

31700-098-305

Unavailable

4

WIRE HARNESS (NOT AVAILABLE)

32100-118-771

Unavailable

5

CONNECTOR A, FUSE (YUASA) This part replaces 32106-041-000.

32106-437-300

Unavailable

5

CONNECTOR A, FUSE (YUASA) This part replaces 32106-041-008.

32106-437-300

Unavailable

5

CONNECTOR A, FUSE (YUASA)

32106-437-300

Unavailable

6

CONNECTOR B, FUSE (YUASA) This part replaces 32112-041-000.

32112-041-008

Unavailable

6

CONNECTOR B, FUSE (YUASA)

32112-041-008

Unavailable

7

BAND B1, CABLE This part replaces 32161-098-000.

95014-62100

$1.64

7

BAND B1, CABLE

95014-62100

$1.64

8

BAND B2, CABLE HARNESS This part replaces 32161-286-000.

95014-62200

$2.11

8

BAND B2, CABLE HARNESS This part replaces 32162-286-000.

95014-62200

$2.11

8

BAND B2, CABLE HARNESS

95014-62200

$2.11

9

LOCK SET (NOT AVAILABLE)

35010-137-670

Unavailable

9

LOCK SET (NOT AVAILABLE) This part replaces 35030-118-771.

35010-137-670

Unavailable

10

SWITCH ASSY., COMBINATION (NOT AVAILABLE) This part replaces 35100-118-771.

35100-137-007

Unavailable

10

SWITCH ASSY., COMBINATION

35100-137-007

Unavailable

11

CLIP, FR. BRAKE CABLE

45465-270-000

$4.94

12

TRAY, BATTERY *NH1* (BLACK) (NOT AVAILABLE)

50380-118-670B

Unavailable

13

STAY, BATTERY TRAY SUPPORT *NH1* (BLACK) (NOT AVAILABLE)

50381-118-670B

Unavailable

14

BAND A, BATTERY This part replaces 50382-045-670.

95012-11001

$2.92

14

BAND A, BATTERY This part replaces 95012-11000.

95012-11001

$2.92

14

BAND A, BATTERY

95012-11001

$2.92

15

BOLT, HEX. (5X20) This part replaces 92000-05020-0A.

92101-05020-0A

$1.49

15

BOLT, HEX. (5X20)

92101-05020-0A

$1.49

15

BOLT, HEX. (5X20) This part replaces 92301-05020-0A.

92101-05020-0A

$1.49

16

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

16

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

16

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

17

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

17

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

17

WASHER, PLAIN (6MM)

94101-06800

$1.49

18

FUSE A (7A)

98200-10700

$1.49
