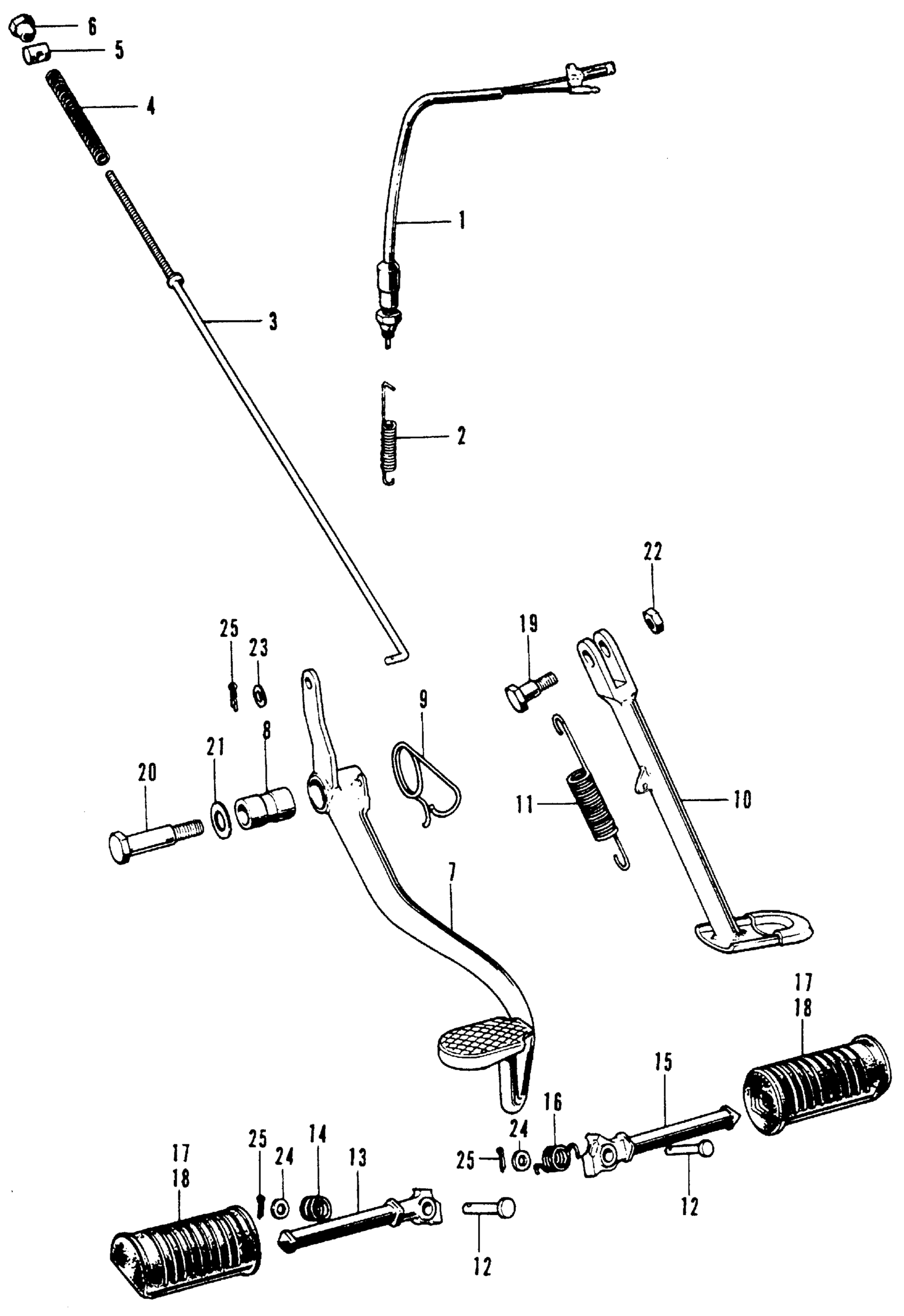

Honda SL70K1A MOTORCYCLE, JPN, VIN# SL70-1100001 REAR BRAKE + SIDE STAND Diagram

#

Description
Price

1

SWITCH ASSY. This part replaces 35350-046-020.

35350-046-025

Unavailable

2

SPRING, STOP SWITCH This part replaces 35357-045-020.

35357-426-610

Unavailable

2

SPRING, STOP SWITCH

35357-426-610

Unavailable

3

ROD, RR. BRAKE (NOT AVAILABLE)

43450-001-010

Unavailable

4

SPRING A, BRAKE ROD This part replaces 43472-001-000.

95014-73100

$1.49

4

SPRING A, BRAKE ROD This part replaces 43472-212-000.

95014-73100

$1.49

4

SPRING A, BRAKE ROD

95014-73100

$1.49

4

SPRING A, BRAKE ROD This part replaces 95014-73300.

95014-73100

$1.49

5

JOINT A, BRAKE ARM This part replaces 45461-001-000.

95015-31001

$1.53

5

JOINT A, BRAKE ARM This part replaces 95015-31000.

95015-31001

$1.53

5

JOINT A, BRAKE ARM

95015-31001

$1.53

6

NUT A, BRAKE ROD ADJUSTING This part replaces 45462-028-000.

95015-41000

$1.49

6

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.49

7

PEDAL, BRAKE (NOT AVAILABLE)

46500-118-670

Unavailable

8

COLLAR, BRAKE PEDAL PIVOT (NOT AVAILABLE)

46506-045-720

Unavailable

9

SPRING, BRAKE PEDAL (NOT AVAILABLE)

46514-118-000

Unavailable

10

BAR, SIDE STAND *NH35* (CLOUD SILVER) (NOT AVAILABLE)

50530-118-770AU

Unavailable

11

SPRING D, SIDE STAND This part replaces 50542-286-000.

95014-72402

$2.92

11

SPRING D, SIDE STAND This part replaces 95014-72400.

95014-72402

$2.92

11

SPRING D, SIDE STAND This part replaces 95014-72401.

95014-72402

$2.92

11

SPRING D, SIDE STAND

95014-72402

$2.92

12

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

12

PIN, STEP BAR JOINT

50603-033-010

$3.30

13

ARM, R. STEP

50616-312-010

Unavailable

14

SPRING, R. STEP RETURN

50617-056-670

Unavailable

15

ARM, L. STEP

50642-312-010

Unavailable

16

SPRING, L. STEP RETURN

50644-056-670

Unavailable

18

RUBBER, STEP

50661-331-770

$16.37

19

BOLT, SIDE STAND PIVOT

90108-223-000

$5.13

20

BOLT, RR. BRAKE PIVOT (NOT AVAILABLE)

90128-313-000

Unavailable

21

WASHER (14X26) This part replaces 90526-216-000.

90527-634-670

Unavailable

21

WASHER (14X26)

90527-634-670

Unavailable

22

NUT, HEX. (10MM)

94002-10000-0S

$4.06

23

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

23

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

23

WASHER, PLAIN (6MM)

94101-06800

$1.49

24

WASHER, PLAIN (8MM)

94101-08000

$1.49

25

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

25

PIN, COTTER (1.6X25)

94201-16250

$1.49
