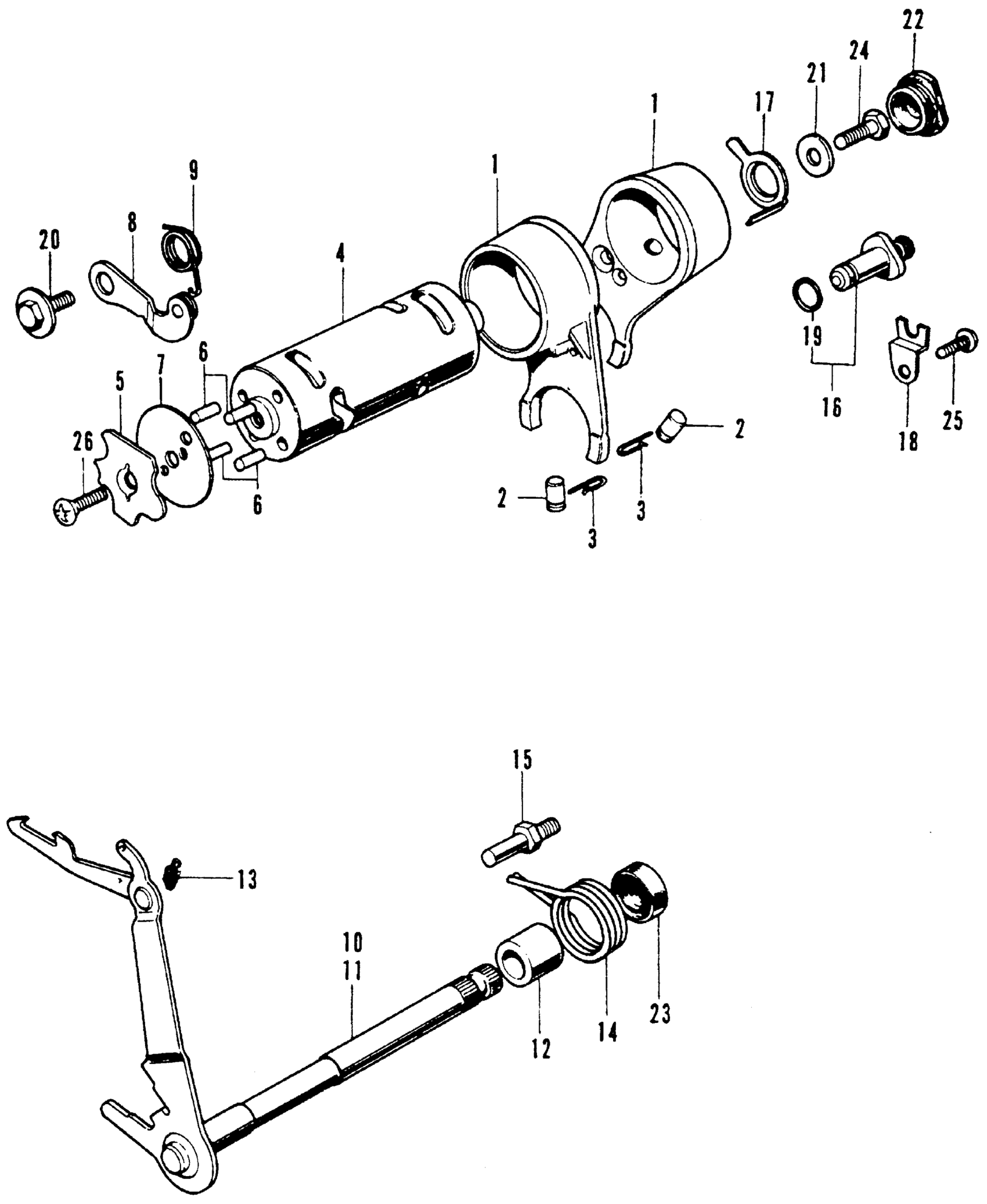

Honda SL70K1A MOTORCYCLE, JPN, VIN# SL70-1100001 GEARSHIFT Diagram

#

Description
Price

1

FORK, GEARSHIFT

24211-065-000

$68.56

1

FORK, R. GEARSHIFT (NOT AVAILABLE) | (Optional).

24211-118-305

Unavailable

2

PIN, GEARSHIFT FORK GUIDE This part replaces 24261-028-010.

24261-121-742

$2.33

2

PIN, GEARSHIFT FORK GUIDE This part replaces 24261-121-740.

24261-121-742

$2.33

2

PIN, GEARSHIFT FORK GUIDE This part replaces 24261-121-741.

24261-121-742

$2.33

3

CLIP, GEARSHIFT FORK GUIDE

24263-028-000

$2.66

4

DRUM, GEARSHIFT This part replaces 24301-065-680.

24301-065-684

Unavailable

4

DRUM, GEARSHIFT This part replaces 24301-065-681.

24301-065-684

Unavailable

5

PLATE, SHIFT DRUM STOPPER (NOT AVAILABLE)

24411-118-670

Unavailable

6

PIN, GEARSHIFT DRUM This part replaces 24421-200-000.

24421-230-000

$5.80

6

PIN, GEARSHIFT DRUM

24421-230-000

$5.80

7

PLATE, SHIFT DRUM SIDE

24425-051-010

Unavailable

8

STOPPER, GEARSHIFT DRUM This part replaces 24430-041-000.

24430-041-010

Unavailable

8

STOPPER, GEARSHIFT DRUM

24430-041-010

Unavailable

9

SPRING, DRUM STOPPER

24435-051-000

Unavailable

11

SPINDLE, GEARSHIFT

24610-098-740

Unavailable

12

COLLAR (12.2MM) (NOT AVAILABLE)

24639-035-000

Unavailable

13

SPRING, GEARSHIFT ARM

24641-061-000

Unavailable

14

SPRING, GEARSHIFT RETURN

24651-035-000

Unavailable

15

PIN, SHIFT RETURN SPRING

24652-035-000

$4.01

16

CONTACT ASSY., NEUTRAL SWITCH

35750-001-020

$9.16

17

ROTOR, NEUTRAL SWITCH This part replaces 35753-035-661.

35753-035-662

Unavailable

17

ROTOR, NEUTRAL SWITCH

35753-035-662

Unavailable

18

PLATE, CONTACT FIXING

35755-001-020

Unavailable

19

O-RING (7X1.6)

37551-001-000

Unavailable

20

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT This part replaces 90023-041-000.

90023-041-010

$2.25

20

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

90023-041-010

$2.25

21

WASHER, GEARSHIFT DRUM SIDE

90417-041-000

$2.19

22

PLUG, RUBBER (19MM)

90801-035-000

$2.92

23

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-035-000.

91208-KB4-671

$4.06

23

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-035-003.

91208-KB4-671

$4.06

23

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-121-000.

91208-KB4-671

$4.06

23

OIL SEAL (11.6X23X10) (ARAI)

91208-KB4-671

$4.06

24

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

24

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

24

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

24

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

24

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

24

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

25

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

25

SCREW, PAN (6X12)

93500-06012-0A

$1.49

25

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

26

SCREW, OVAL (6X20) This part replaces 93700-06020.

93700-06020-0A

$1.49

26

SCREW, OVAL (6X20)

93700-06020-0A

$1.49
