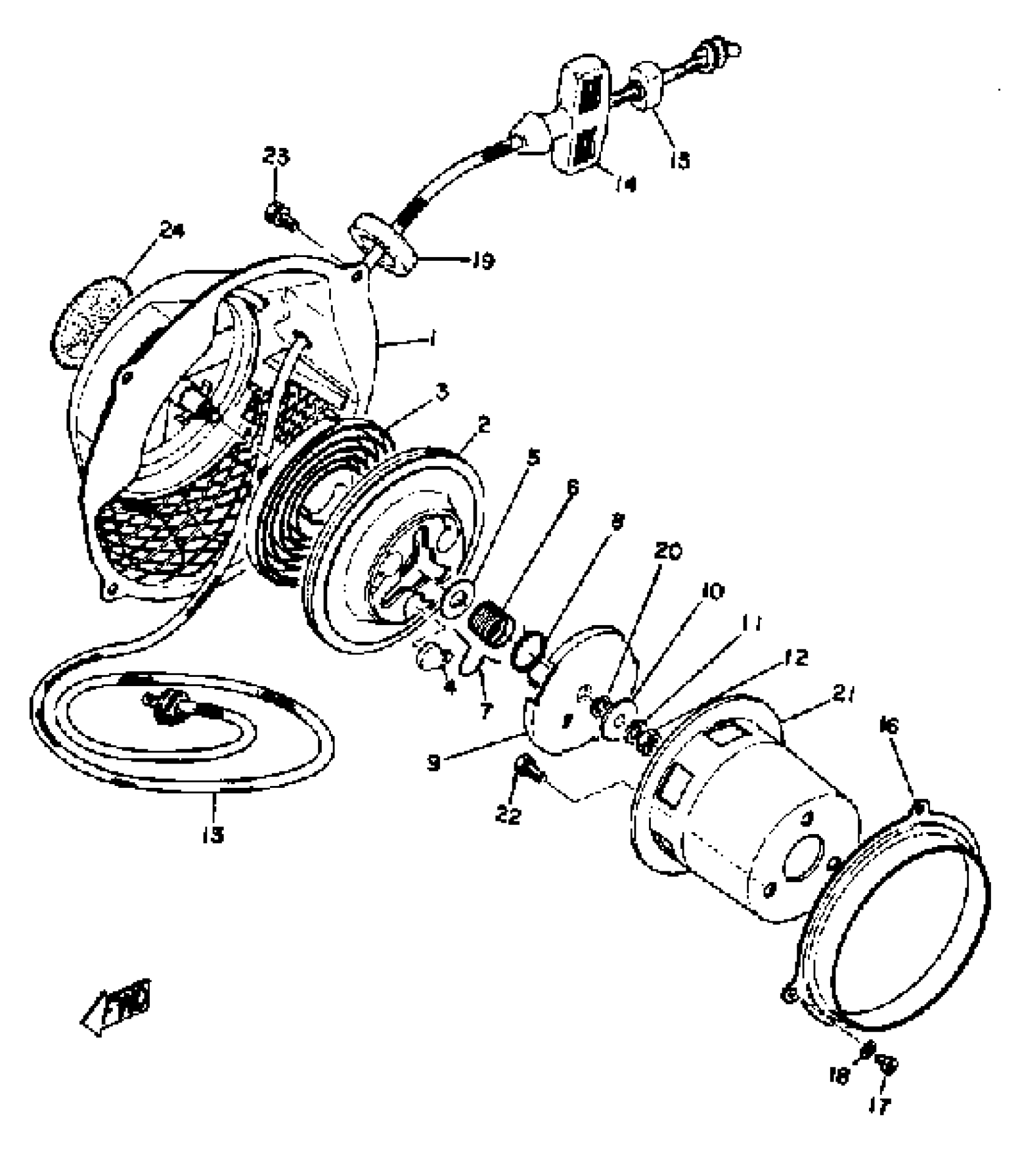

Find the part on the Starter diagram for your 1974 Yamaha SL433F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha SL433F Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STARTER ASSEMBLY

(821-15710-00-00)

1
Out of stock

1

CASE, STARTER

(821-15711-00-00)

1
Out of stock

1

WASHER, SPRING

92907-06100-00

1
Out of stock

2

. DRUM, SHEAVE

811-15714-00-00

1
Out of stock

3

SPRING, STARTER

8F3-15713-01-00

1

$41.31

In stock

4

. PAWL, DRIVE

616-15741-01-00

1
Out of stock

5

WASHER, FLAT

(802-15726-00-00)

1
Out of stock

6

SPRING,DRIVE PLATE

626-15715-01-00

—

$2.42

In stock

7

. SPRING, RETURN

811-15784-00-00

1
Out of stock

8

. SPRING, RETURN

811-15734-00-00

1
Out of stock

9

. PLATE, DRIVE

811-15716-00-00

1
Out of stock

10

WASHER,FLAT

807-15726-01-00

—

$3.54

In stock

11

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

12

. NUT

95380-08700-00

1

$3.07

In stock

13

ROPE, STARTER

(807-15751-00-00)

1
Out of stock

14

. HANDLE, STARTER

807-15755-00-00

1
Out of stock

15

. CONNECTOR 1

619-15756-00-00

1
Out of stock

16

COVER, SHEAVE

(811-15782-00-00)

1
Out of stock

17

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

18

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

19

KNOB, STOPPER RING

(811-15775-00-00)

1
Out of stock

20

SHIM

(811-15722-00-00)

1
Out of stock

21

PULLEY, STARTER

(811-15723-00-00)

1
Out of stock

22

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

22

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

23

BOLT, HEXAGON

97017-06016-00

—

$6.18

In stock

24

EMBLEM

(838-15791-00-00)

1
Out of stock
