1974 Yamaha SL433F Electrical Diagram

← All diagrams

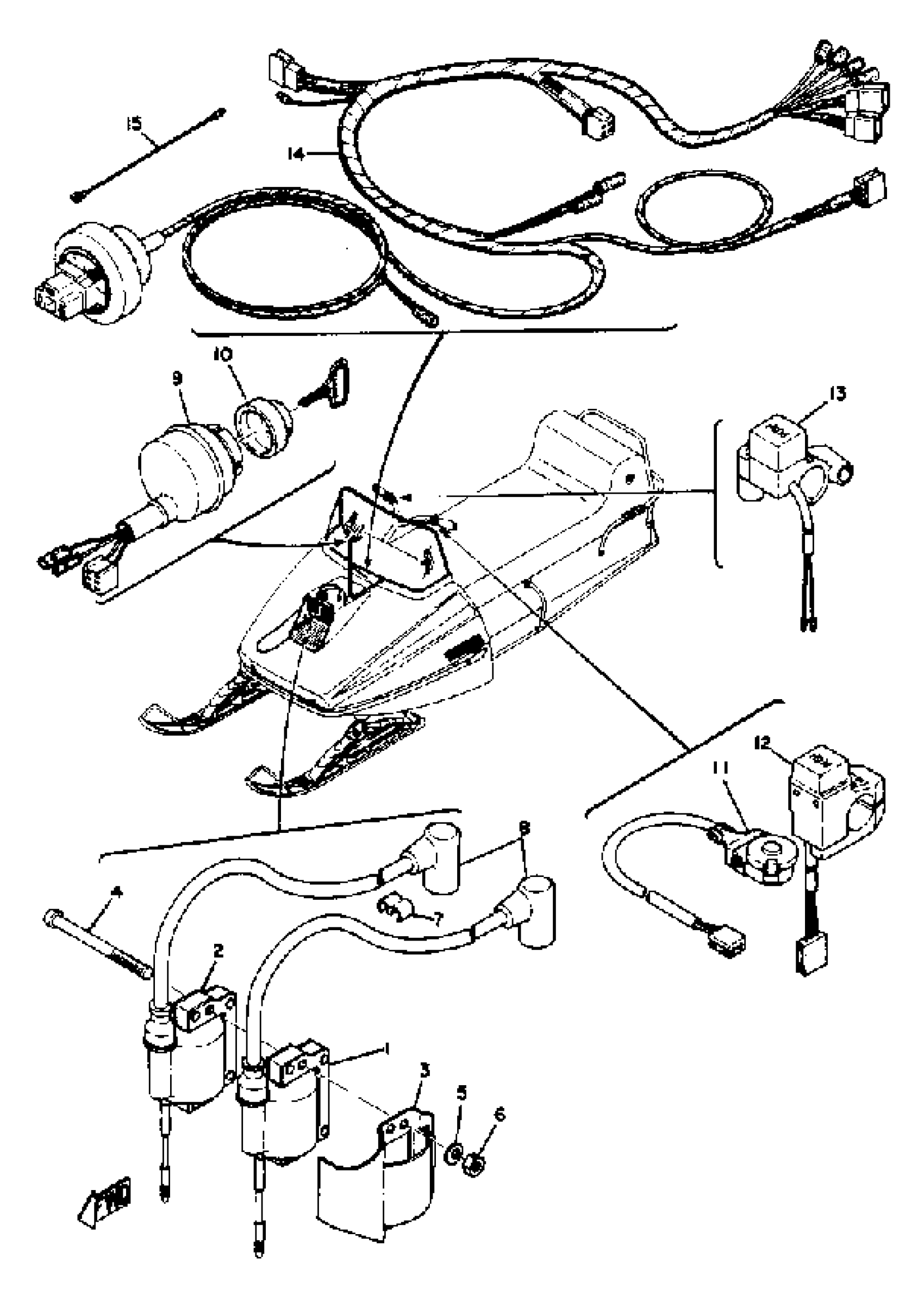

Find the part on the Electrical diagram for your 1974 Yamaha SL433F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha SL433F Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

IGNITION COIL ASSEMBLY

838-82310-40-00

1
Out of stock

2

IGNITION COIL ASSEMBLY

(839-82310-40-00)

1
Out of stock

3

COVER, IGNITN COIL

(838-82314-00-00)

1
Out of stock

4

SCREW, PAN HEAD

98507-06070-00

1

$6.91

In stock

5

WASHER, SPRING

92907-06100-00

1
Out of stock

6

NUT(6TA)

95317-06600-00

1

$2.69

In stock

7

CLAMP, CORD

861-82361-00-00

—

$5.34

In stock

8

PLUG CAP ASSY

663-82370-01-00

1

$13.45

In stock

9

MAIN SWITCH ASSEMBLY

898-82508-20-00

1
Out of stock

10

COLLAR, MAIN SWITCH

806-82516-00-00

1
Out of stock

11

STOP SWITCH ASSEMBLY

822-82530-00-00

1
Out of stock

12

BEAM SWITCH ASSEMBLY

861-83950-01-00

1
Out of stock

13

SWITCH, HANDLE 1

883-83976-00-00

1
Out of stock

14

WIRE HARNESS ASSEMBLY

(861-82590-21-00)

1
Out of stock

15

WIRE, EARTH LEAD

(838-82519-00-00)

1
Out of stock
