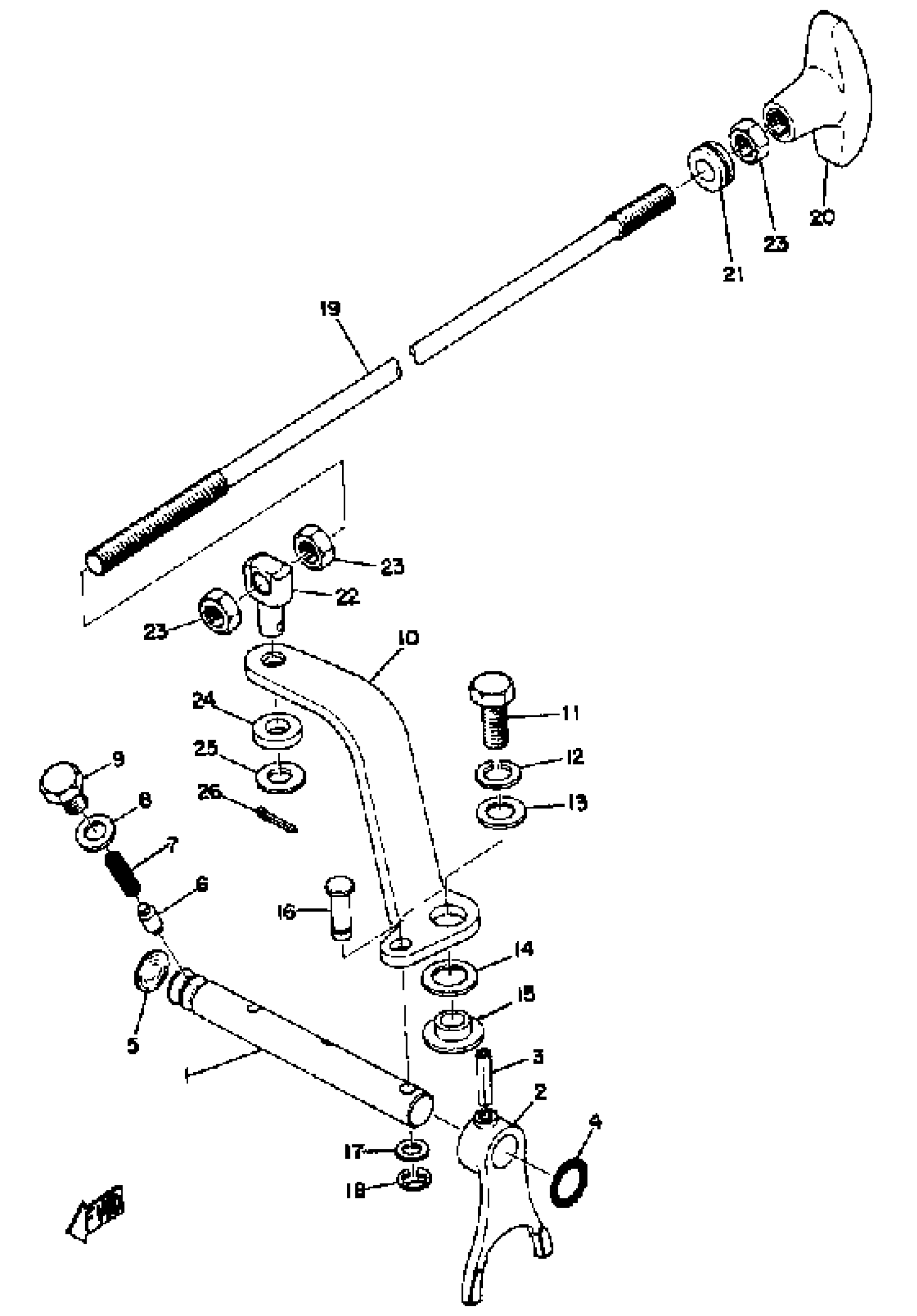

Yamaha SL433F 1974 SHIFTER Diagram

#

Description
Price

1

BAR, SHIF FRK GDE 1

(874-18531-00-00)

Unavailable

2

FORK, SHIFT 1

826-18511-01-00

Unavailable

3

PIN, SPRING

91690-40020-00

Unavailable

4

O-RING (137)

93210-12014-00

$7.49

5

PLUG, EXPANSION

(90330-16002-00)

Unavailable

6

PIN, SPEC''L SHAPE

90249-07004-00

Unavailable

7

SPRING COMPRESSION826181830000

90501-10060-00

Unavailable

8

GASKET

90430-08023-00

Unavailable

9

BOLT(8X2)

90101-08344-00

Unavailable

10

LEVER

(863-18198-00-00)

Unavailable

11

BOLT(JA9)

90101-08691-00

$4.29

12

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

13

WASHER, WAVE (17W)

90206-12074-00

$9.49

14

SPACER

(90560-08065-00)

Unavailable

15

SPACER

90560-08067-00

Unavailable

16

PIN, SPEC''L SHAPE

(90249-06019-00)

Unavailable

17

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

18

CIRCLIP(22K)

99080-05600-00

Unavailable

19

ROD, SHIFT

874-18115-00-00

Unavailable

20

KNOB, CHANGE

874-18199-00-00

Unavailable

21

GROMMET (2T4)

90480-12237-00

Unavailable

22

PIN, SPEC''L SHAPE

90249-07011-00

Unavailable

23

. NUT

95380-08700-00

Unavailable

24

WASHER, PLATE

(90202-08018-00)

Unavailable

25

WASHER, PLAIN

92990-08200-00

Unavailable

26

PIN, COTTER

91490-25020-00

Unavailable
