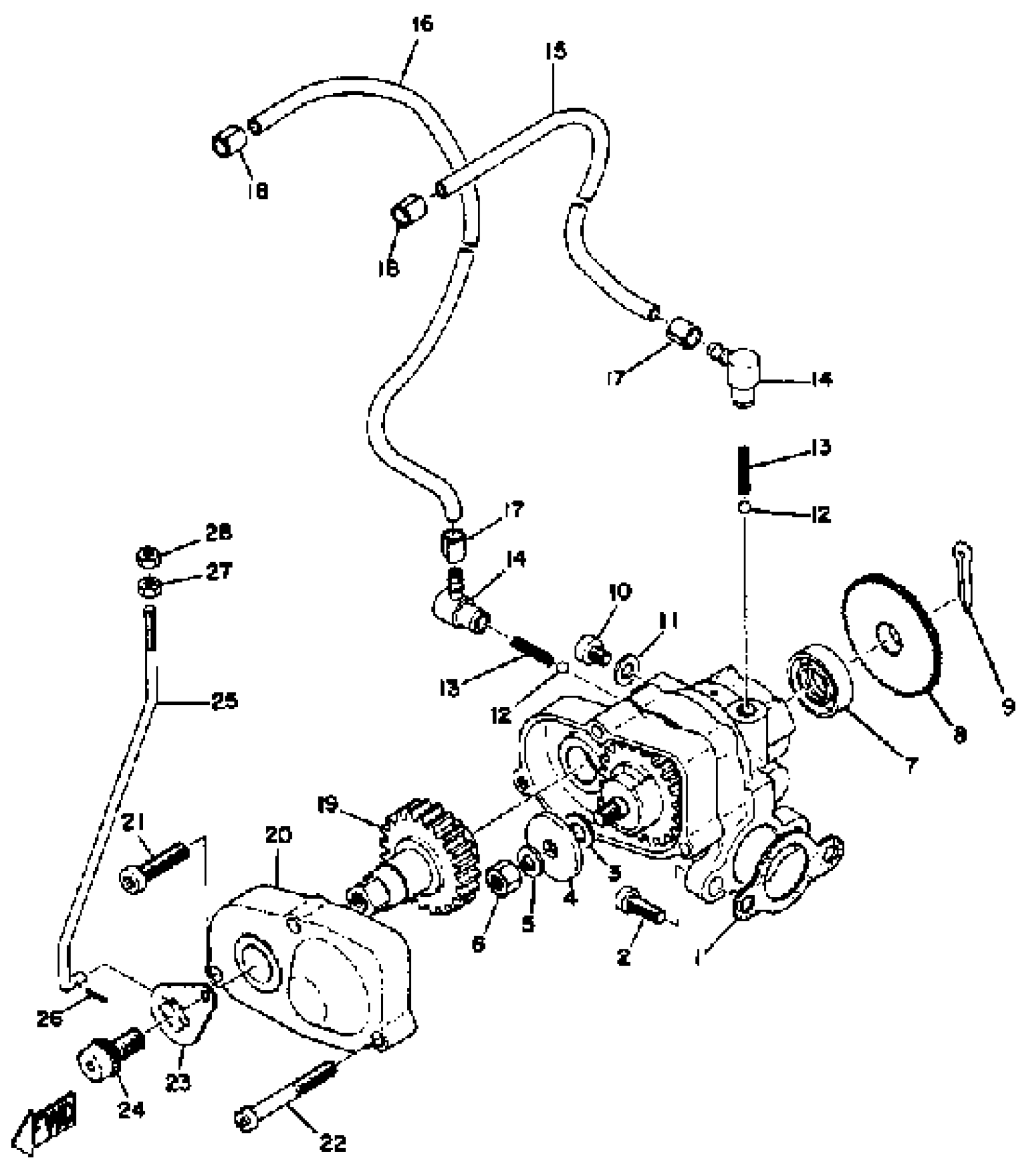

Yamaha SL433F 1974 OIL PUMP Diagram

#

Description
Price

1

GASKET, PUMP CASE

126-13116-01-00

$8.99

1

OIL PUMP ASSEMBLY

(861-13101-00-00)

Unavailable

2

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

3

SHIM,PLUNGER

137-13137-00-03

$5.49

3

SHIM,PLUNGER

137-13137-00-05

$6.99

3

SHIM,PLUNGER

137-13137-00-10

$7.99

4

PLATE, ADJUSTING

137-13138-01-00

Unavailable

5

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

6

NUT, HEXAGON (663)

95380-05600-00

$8.49

7

OIL SEAL (J10)

93101-10090-00

$8.49

8

GASKET 137131870000

90430-04004-00

$9.49

9

. PIN, COTTER

91401-12018-00

Unavailable

10

SCREW, BIND

98980-04008-00

Unavailable

11

GASKET 137131870000

90430-04004-00

$9.49

12

BALL

93505-32002-00

$2.92

13

SPRING (278-13169-00)

90501-02018-00

Unavailable

14

NOZZLE

353-13552-01-00

Unavailable

15

HOSE (L200)

90445-05N13-00

Unavailable

16

HOSE (L200)

90445-05N13-00

Unavailable

17

CLIP (214-13164-00)

90468-02033-00

Unavailable

18

CLIP (214-13164-00)

90468-02033-00

Unavailable

19

GEAR, PUMP CONTROL

(838-13154-01-00)

Unavailable

20

COVER, AJST PULLEY

(859-13146-00-00)

Unavailable

21

SCREW, PAN HEAD

98517-04020-00

Unavailable

22

SCREW, PAN HEAD(MK5)

98507-04035-00

Unavailable

23

LEVER, PUMP CONTROL

(812-13156-00-00)

Unavailable

24

SCREW, PAN

98507-06014-00

Unavailable

25

ROD, PUMP CONTROL

(840-13157-00-00)

Unavailable

26

. PIN, COTTER

91490-12012-00

Unavailable

27

NUT, HEXAGON (807-13139-00)

90170-03008-00

Unavailable

28

NUT, SELF-LOCKING (838-13139-00)

90185-03007-00

Unavailable
