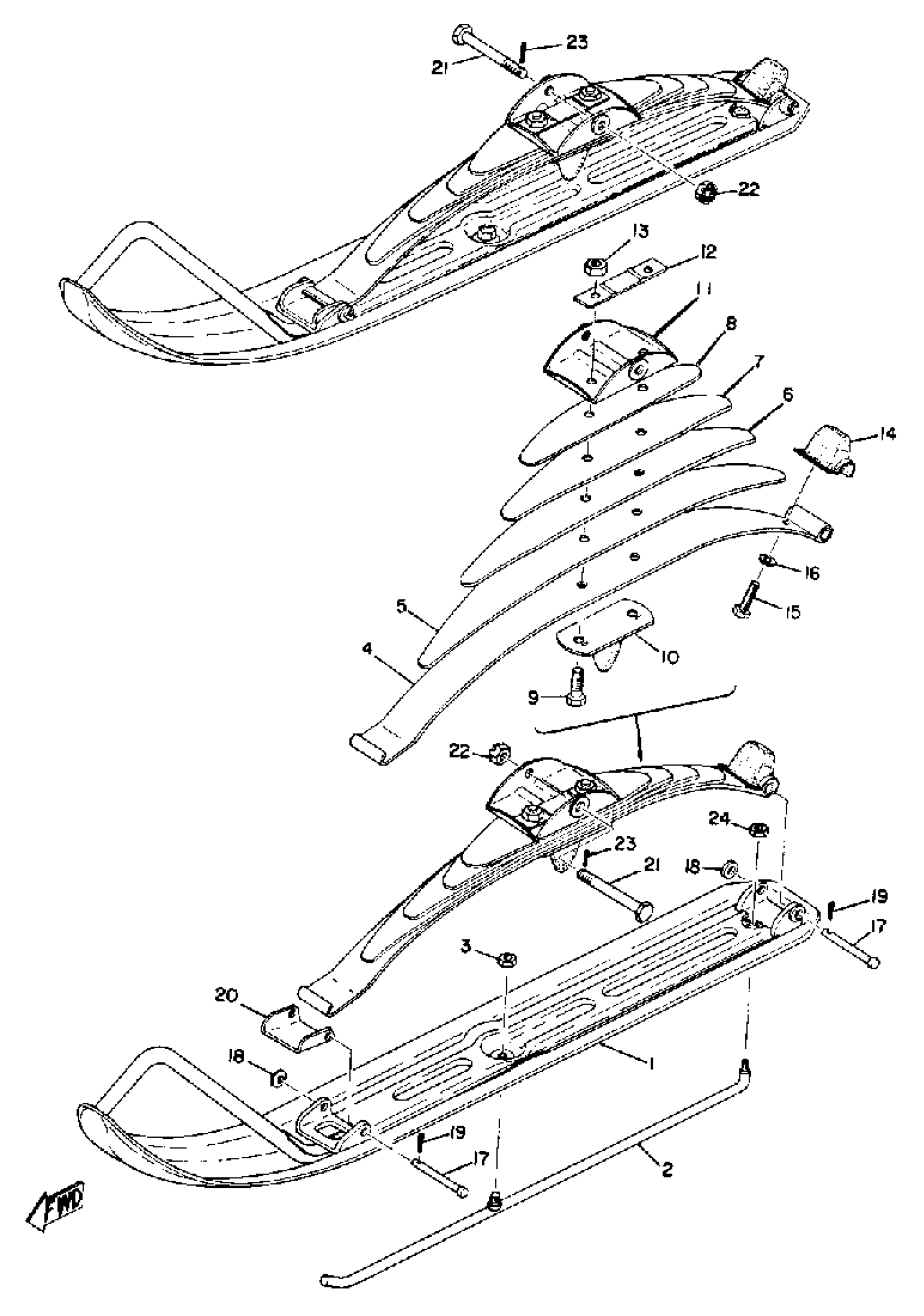

Yamaha SL433B 1973 SKI Diagram
#
Description
Price
1
SKI 1
(838-23710-01-00)
Unavailable
1
SPRING ASSEMBLY 1
(841-23760-03-00)
Unavailable
2
RUNNER 1
838-23731-03-00
Unavailable
2
RUNNER 1
841-23731-02-00
Unavailable
2
SPRING ASSEMBLY 2
841-23770-03-00
Unavailable
3
NUT(6TA)
95337-08600-00
$8.49
4
. LEAF 1
841-23761-02-00
Unavailable
5
LEAF 2
(841-23762-02-00)
Unavailable
6
LEAF 3
(841-23763-01-00)
Unavailable
7
. LEAF 4
841-23764-01-00
Unavailable
8
. LEAF 5
841-23771-01-00
Unavailable
9
. BOLT
90101-10060-00
Unavailable
10
. SEAT, SPRING 1
878-23768-00-00
Unavailable
11
SADDLE 1
(841-23766-00-00)
Unavailable
12
. WASHER, SPEC''L SHAP
90209-10069-00
Unavailable
13
NUT(6TD)
95337-10600-00
Unavailable
14
STOPPER 1
(841-23743-01-00)
Unavailable
15
BOLT (11T)
90101-06576-00
Unavailable
16
WASHER, SPRING
92995-06100-00
Unavailable
17
PIN, CLEVIS (801-23733-00)
90240-08035-00
Unavailable
18
WASHER(6TC)
92907-08200-00
Unavailable
19
PIN COTTER
91490-30025-00
Unavailable
20
PLATE, WEAR 1
802-23735-00-00
Unavailable
21
BOLT, WITH HOLE
90102-10009-00
Unavailable
22
NUT, SLOTTED
95306-10900-00
Unavailable
23
PIN, COTTER
91490-20025-00
Unavailable
24
NUT, HEXAGON SMALL
95317-08700-00
Unavailable
