INTAKE

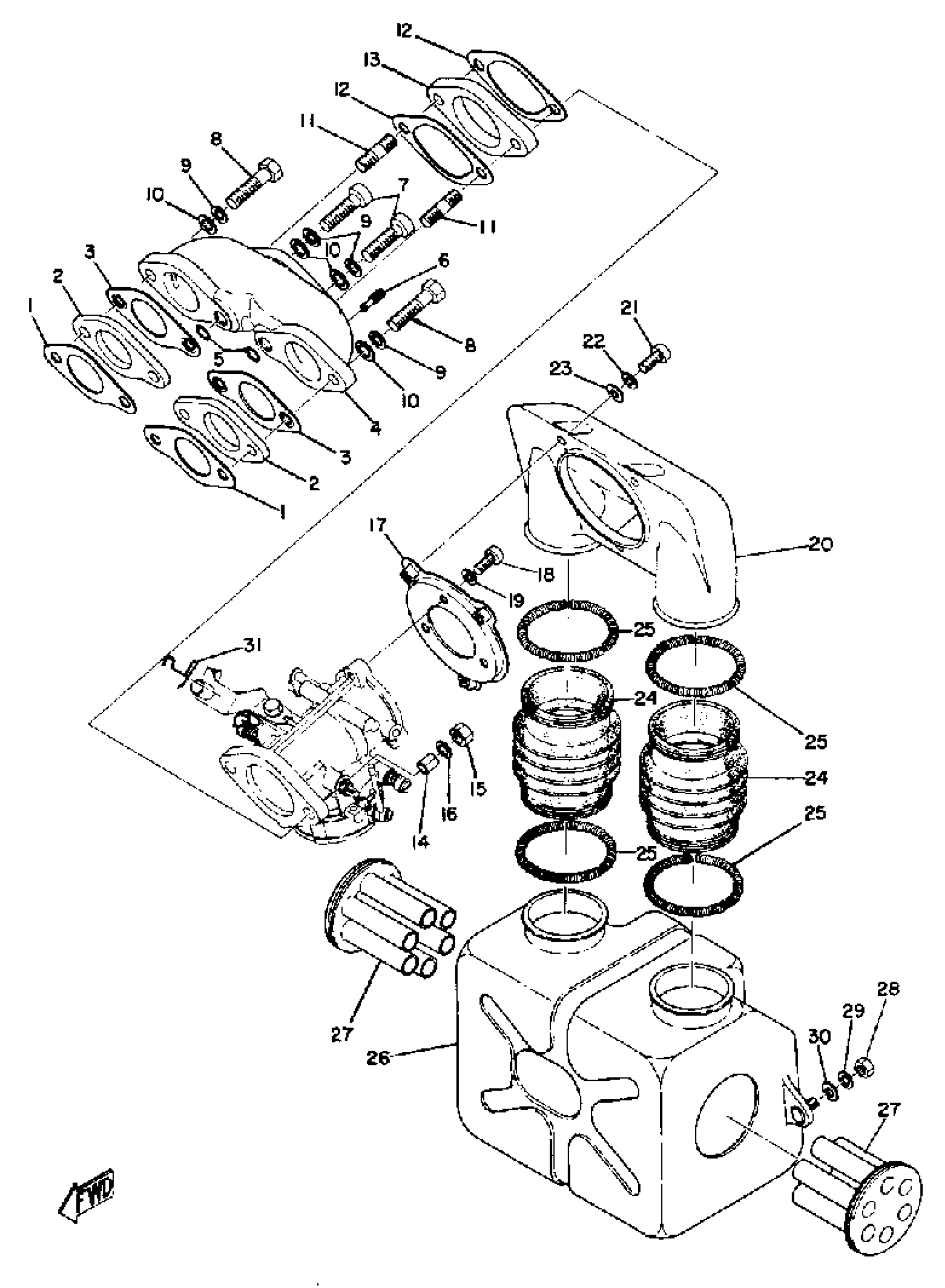

Yamaha SL433B 1973 INTAKE Diagram
#
1
GASKET,MANIFOLD
811-13556-09-00
Unavailable
2
MANIFOLD, INTAKE
(8F1-13555-00-00)
Unavailable
3
GASKET
811-13563-09-00
Unavailable
4
JOINT, CARBURETOR
(826-13565-00-00)
Unavailable
5
O-RING (11M)
93210-07540-00
$7.49
6
NOZZLE
824-13552-00-00
Unavailable
7
BOLT, SOCKET
91317-08030-00
$8.49
8
BOLT
97013-08035-00
$5.60
9
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
10
WASHER, PLAIN
92990-08200-00
Unavailable
11
BOLT, STUD
(90116-08051-00)
Unavailable
12
GASKET
810-13566-09-00
Unavailable
13
MANIFOLD, INTAKE
(812-13555-70-00)
Unavailable
14
SPACER
(810-13576-00-00)
Unavailable
15
. NUT
95380-08700-00
Unavailable
16
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
17
PLATE
(841-14477-00-00)
Unavailable
18
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
19
WASHER, SPRING
92995-06100-00
Unavailable
20
SILENCER, INTAKE 1
(841-14431-00-00)
Unavailable
21
SCREW, PAN
98507-06014-00
Unavailable
22
WASHER, SPRING
92995-06100-00
Unavailable
23
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
24
JOINT, AIR CLNR 1
841-14453-00-00
Unavailable
25
SPRING, TENSION
90506-06082-00
Unavailable
26
SILENCER, INTAKE 2
(841-14441-01-00)
Unavailable
27
GROMMET
(841-14435-01-00)
Unavailable
28
NUT(6TA)
95317-06600-00
Unavailable
29
WASHER, SPRING
92995-06100-00
Unavailable
30
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
31
CLAMP, THROTTLE
822-41222-00-00
Unavailable
