FUEL TANK

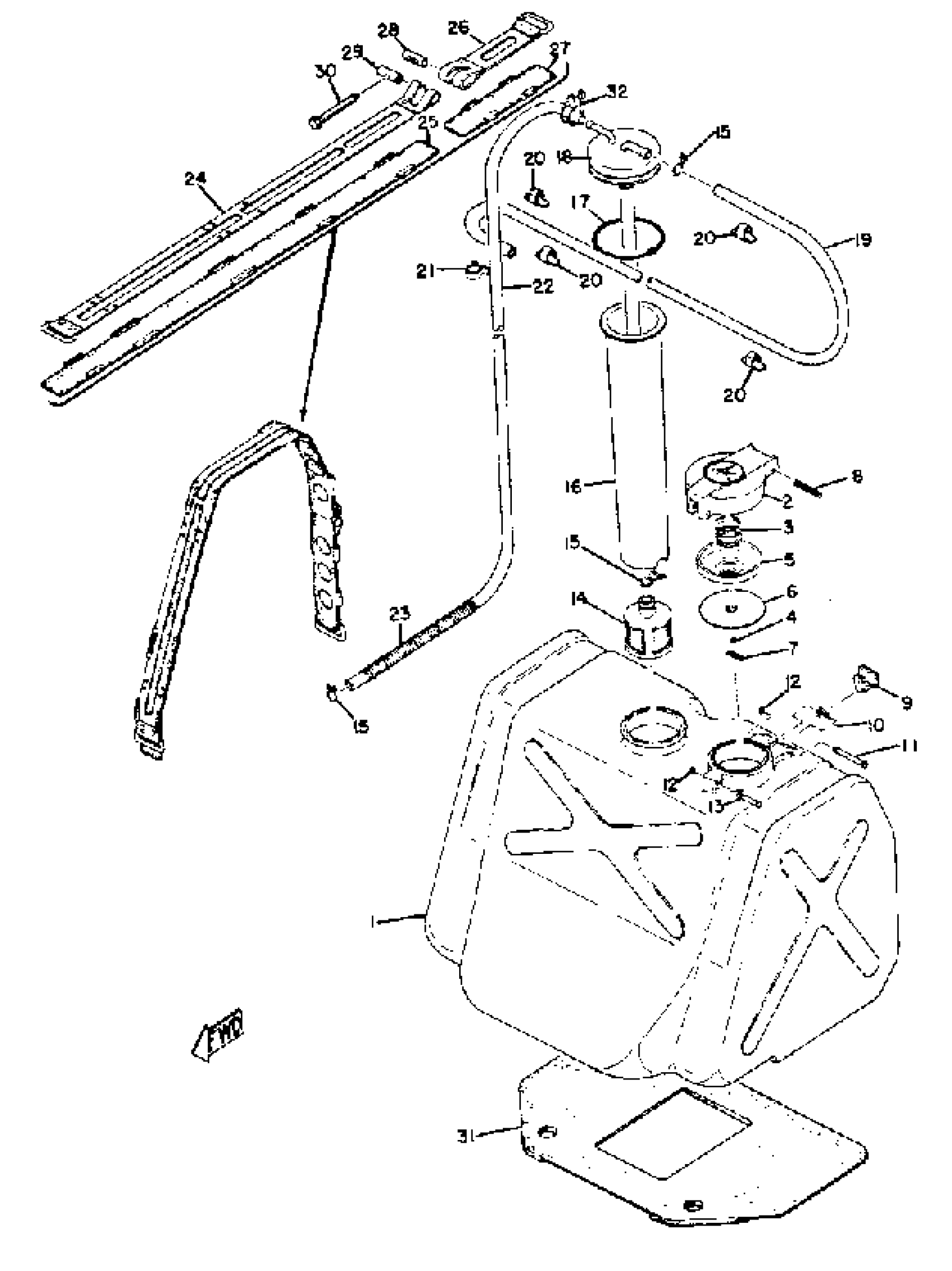

Yamaha SL433 1972 FUEL TANK Diagram
#
1
FUEL TANK
(822-24111-00-00)
Unavailable
2
BODY, CAP
8A5-24611-00-00
Unavailable
3
SPRING, CAP
90501-20130-00
$8.49
4
O-RING (256)
93210-04122-00
$8.49
5
DISK,CAP
813-24613-01-00
$20.99
6
GASKET, CAP
256-24612-00-00
Unavailable
7
PIN, SPRING
91690-30016-00
Unavailable
8
PIN, SPRING
91609-25032-00
$2.49
9
HOOK
83M-24628-00-00
$24.99
10
SPRING, TORSION (813-24637-00)
90508-08003-00
Unavailable
11
PIN (813)
90249-03017-00
$7.49
12
CIRCLIP (604)
93430-02001-00
$8.49
13
PIN, SPEC''L SHAPE
90249-03016-00
Unavailable
14
FILTER ASSEMBLY
(813-24560-01-00)
Unavailable
15
CLIP (8J7)
90467-11009-00
$10.49
16
PIPE, SUCTION 2
(822-24336-00-00)
Unavailable
17
SPRING, TENSION (8R4)
90506-06261-00
Unavailable
18
PIPE, SUCTION 1
813-24335-00-00
Unavailable
19
CLAMP, FUEL PIPE 1
(813-24366-00-00)
Unavailable
20
TUBE, FLEXIBLE VINYL(8AK)
91A20-05080-00
Unavailable
21
CLAMP
(90463-07002-00)
Unavailable
22
UNAVAILABLE IN PRICE BOOK (813-24311-00)
90556-11040-00
Unavailable
23
SPRING, COMPRESSION (3LD4)
90501-084G9-00
Unavailable
24
BAND, TNK FITTING 1
(822-24173-00-00)
Unavailable
25
DAMPER, LOCATING 3
822-24183-00-00
Unavailable
26
BAND, TNK FITTING 2
810-24199-00-00
Unavailable
26
BAND, TNK FITTING 1
(822-24173-00-00)
Unavailable
27
DAMPER, LOCATING 4
(822-24184-00-00)
Unavailable
28
NUT, SPEC''L SHAPE (806-24146-00)
90179-05030-00
Unavailable
29
CLAMP
806-24135-00-00
Unavailable
30
SCREW, SPEC''L SHAPE (821-24176-00)
90149-05006-00
Unavailable
31
DAMPER, LOCATING 1
(822-24181-00-00)
Unavailable
32
BAND, TNK FITTING 2
(822-24199-00-00)
Unavailable
32
CLIP (8J7)
90467-11009-00
$10.49
