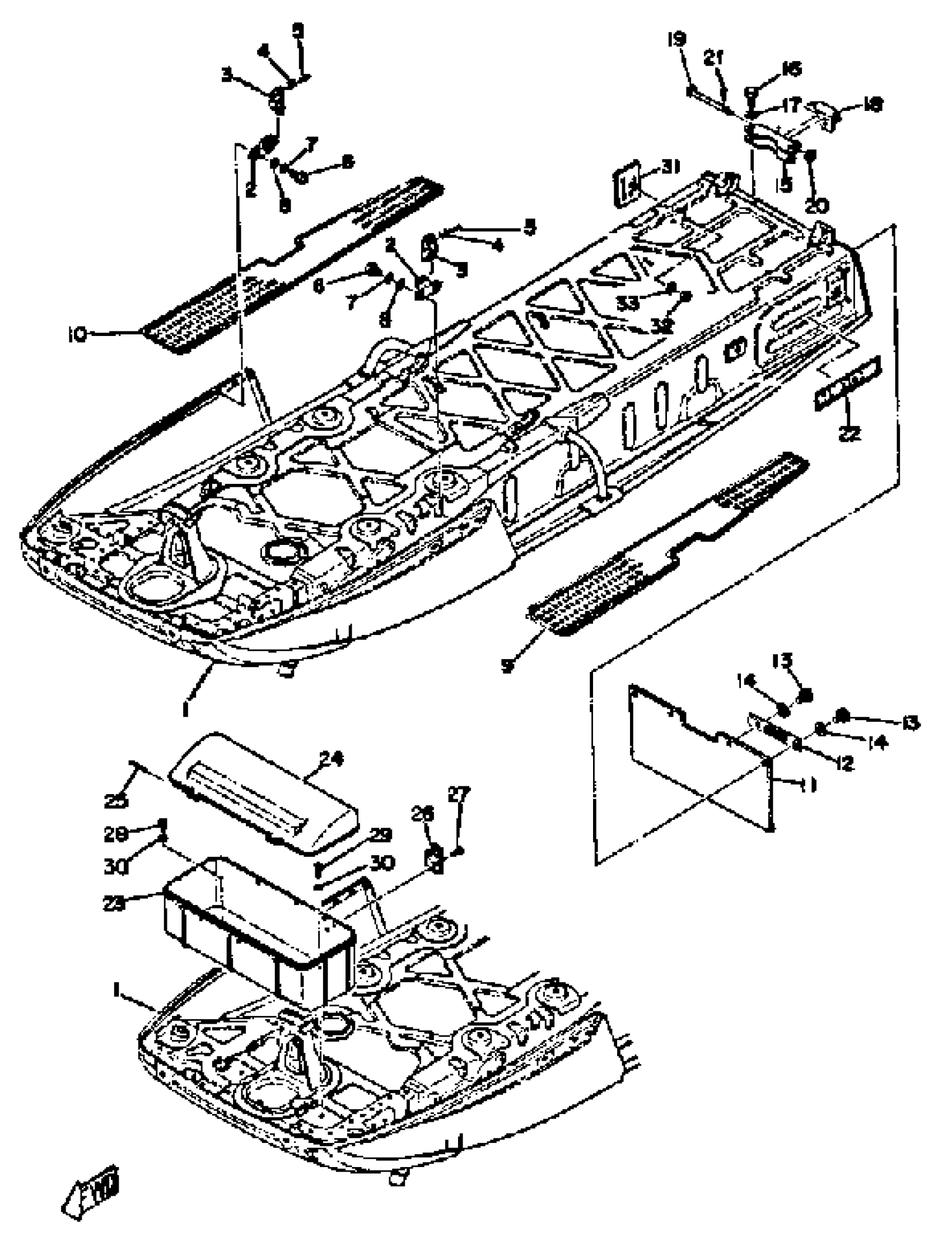

Yamaha SL433 1972 FRAME Diagram
#
1
LATCH ASSEMBLY
806-77170-00-00
Unavailable
1
FRAME
(822-21910-00-00)
Unavailable
2
BODY, LATCH 2
(806-77172-00-00)
Unavailable
2
. LEVER, LATCH 1
806-77173-00-00
Unavailable
4
. SPRING, TORSION
90508-10012-00
Unavailable
5
. PIN, SPECIAL SHAPE
90249-04068-00
Unavailable
6
BOLT, HEXAGON
97313-05016-00
Unavailable
7
YBS67-5 WASHER, SPRING
92990-05100-00
$0.35
8
WASHER, PLATE 8067717800
90201-05029-00
$8.49
9
COVER, FOOTREST
(806-27413-00-00)
Unavailable
10
COVER, FOOTREST
(806-27423-00-00)
Unavailable
11
FLAP
(802-77595-02-00)
Unavailable
12
PLATE, FLAP 1
(802-77593-00-00)
Unavailable
13
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
$2.76
14
WASHER, SPRING
92995-06100-00
Unavailable
15
BRACKET, HITCH 2
(802-77592-00-00)
Unavailable
16
BOLT (682)
97095-06040-00
Unavailable
17
WASHER, SPRING
92995-06100-00
Unavailable
18
BRACKET, HITCH 1
802-77591-00-00
Unavailable
19
PIN, CLEVIS
(91701-08102-00)
Unavailable
20
WASHER, PLAIN
92990-08200-00
Unavailable
21
PIN, COTTER
91490-25020-00
Unavailable
22
EMBLEM 4
(837-77354-00-00)
Unavailable
23
LUGGAGE BOX ASSEMBLY
(822-77301-00-00)
Unavailable
24
COVER, LUGGAGE BOX
(822-77392-00-00)
Unavailable
25
PIN, SPEC''L SHAPE
90249-03021-00
Unavailable
26
LUGGE BOX LTCH ASSEMBLY
(822-77340-00-00)
Unavailable
27
SCREW, FLAT
98707-03008-00
Unavailable
28
SCREW, PAN
98507-06014-00
Unavailable
29
SCREW, PAN HEAD (76T)
98517-06025-00
Unavailable
30
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
31
REFLECTOR, REAR 1
(821-85131-00-00)
Unavailable
32
NUT, HEXAGON
95380-06600-00
Unavailable
33
WASHER, SPRING
92995-06100-00
Unavailable
