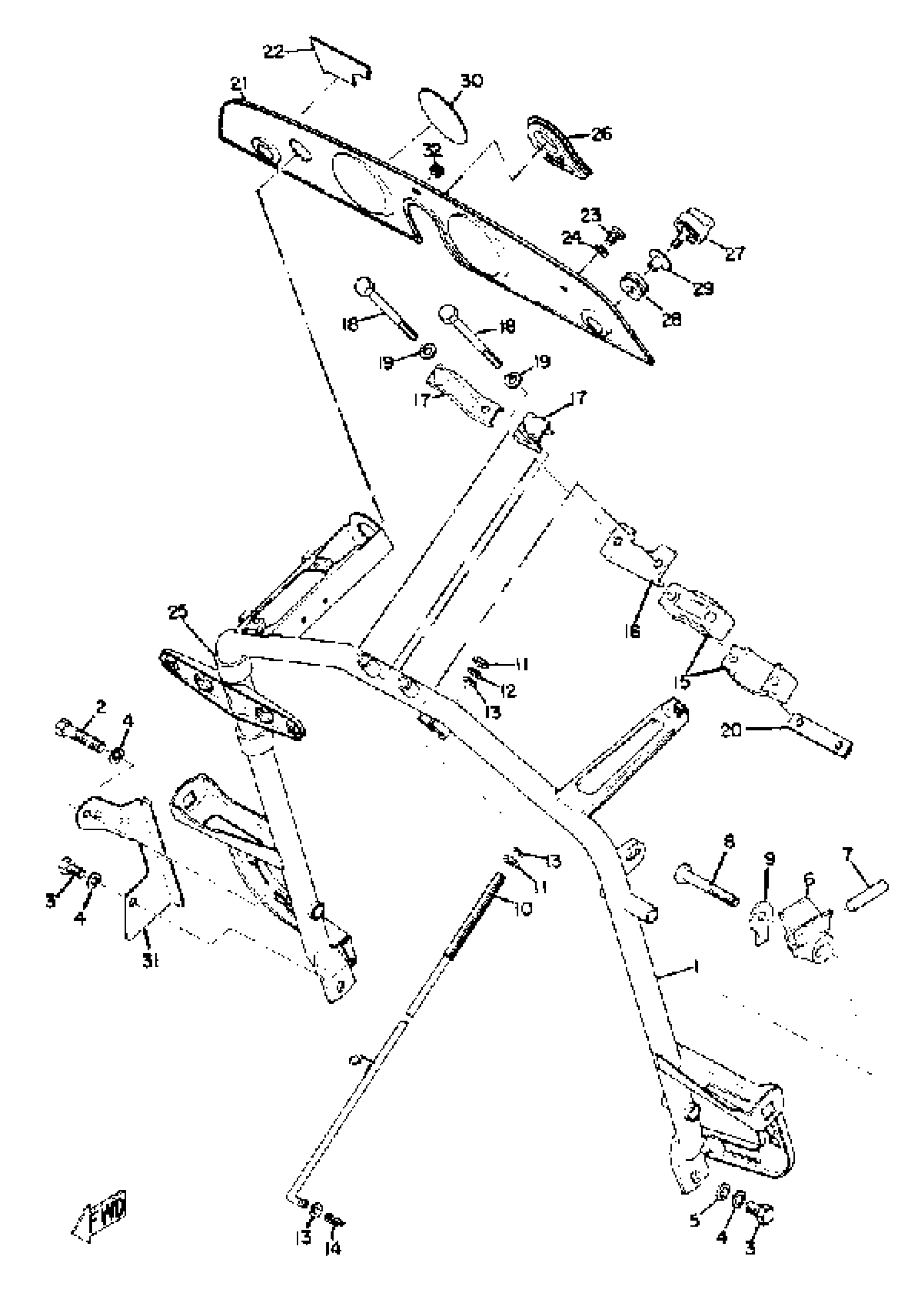

Yamaha SL396 1969 STEERING GATE Diagram

#

Description
Price

1

GATE, STEERING

(807-23871-00-00)

Unavailable

2

BOLT

97013-08045-00

Unavailable

3

BOLT(JA9)

90101-08691-00

$4.29

4

WASHER(JN5)

92907-08100-00

$8.49

5

WASHER(6TC)

92907-08200-00

$8.49

6

CLAMP 3

(806-77137-00-00)

Unavailable

7

STOPPER

(802-77188-00-00)

Unavailable

8

BOLT, HEXAGON

(97306-08060-00)

Unavailable

9

WASHER, LOCK

(90215-08039-00)

Unavailable

10

TENSION BAR

(806-23860-00-00)

Unavailable

11

NUT(650)

95380-06700-00

$8.49

12

WASHER, SPRING

92995-06100-00

Unavailable

13

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

14

CLIP (156-83525-00)

90468-10050-00

$3.05

15

BEARING, STRG UPPER

(806-23873-00-00)

Unavailable

16

HOLDER, BEARING

(802-23872-00-00)

Unavailable

17

DAMPER, SHROUD

(807-77196-00-00)

Unavailable

18

BOLT, HEXAGON

(97306-08085-00)

Unavailable

19

WASHER(JN5)

92907-08100-00

$8.49

20

NUT

(807-23877-00-00)

Unavailable

21

PANEL, INSTRUMENT

(807-77711-00-00)

Unavailable

22

INDICATOR 1

(806-77741-00-00)

Unavailable

23

SCREW, BINDING

98907-06012-00

Unavailable

24

WASHER(6TA)

92907-06200-00

Unavailable

25

DAMPER

(802-21746-00-00)

Unavailable

26

GROMMET

(807-77746-00-00)

Unavailable

27

KNOB

(807-77445-00-00)

Unavailable

28

GROMMET 1

(807-77431-00-00)

Unavailable

29

COLLAR (90387-066J9)

90387-064W1-00

Unavailable

30

EMBLEM 1

(807-77725-00-00)

Unavailable

31

PROTECTOR, PIPE

(807-24327-00-00)

Unavailable

32

GROMMET

(102-82598-00-00)

Unavailable
