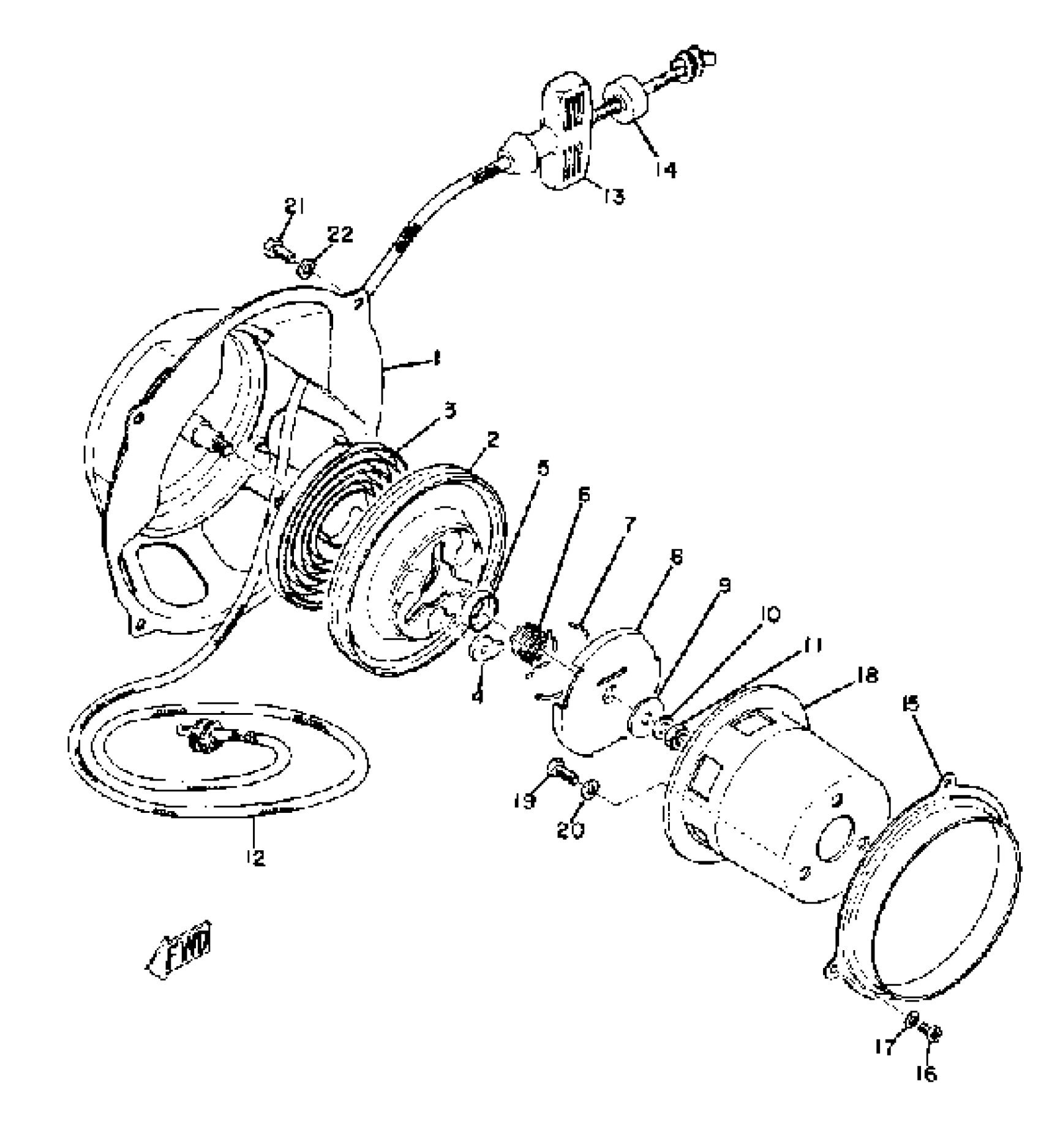

Find the part on the Starter diagram for your 1969 Yamaha SL396, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1969 Yamaha SL396 Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE, STARTER

(807-15711-00-00)

1
Out of stock

1

STARTER ASSEMBLY

(821-15710-00-00)

1
Out of stock

2

STARTER ASSEMBLY

(821-15710-00-00)

1
Out of stock

3

. SPRING, STARTER

802-15713-00-00

1
Out of stock

4

PAWL, DRIVE

(626-15741-01-00)

1
Out of stock

5

WASHER, THRUST

(807-15719-00-00)

1
Out of stock

6

SPRING,DRIVE PLATE

626-15715-01-00

—

$2.42

In stock

7

. SPRING, RETURN

807-15784-00-00

1
Out of stock

8

. PLATE, DRIVE

626-15716-00-00

1
Out of stock

9

WASHER,FLAT

807-15726-01-00

—

$3.54

In stock

10

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

11

. NUT

95380-08700-00

1

$3.07

In stock

12

ROPE, STARTER

(807-15751-00-00)

1
Out of stock

13

. HANDLE, STARTER

807-15755-00-00

1
Out of stock

14

. CONNECTOR 1

619-15756-00-00

1
Out of stock

15

COVER, SHEAVE

(807-15782-00-00)

1
Out of stock

16

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

17

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

18

PULLEY, STARTER

(807-15723-00-00)

1
Out of stock

19

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

20

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

21

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

22

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
