1969 Yamaha SL396 Electrical Diagram

← All diagrams

Find the part on the Electrical diagram for your 1969 Yamaha SL396, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

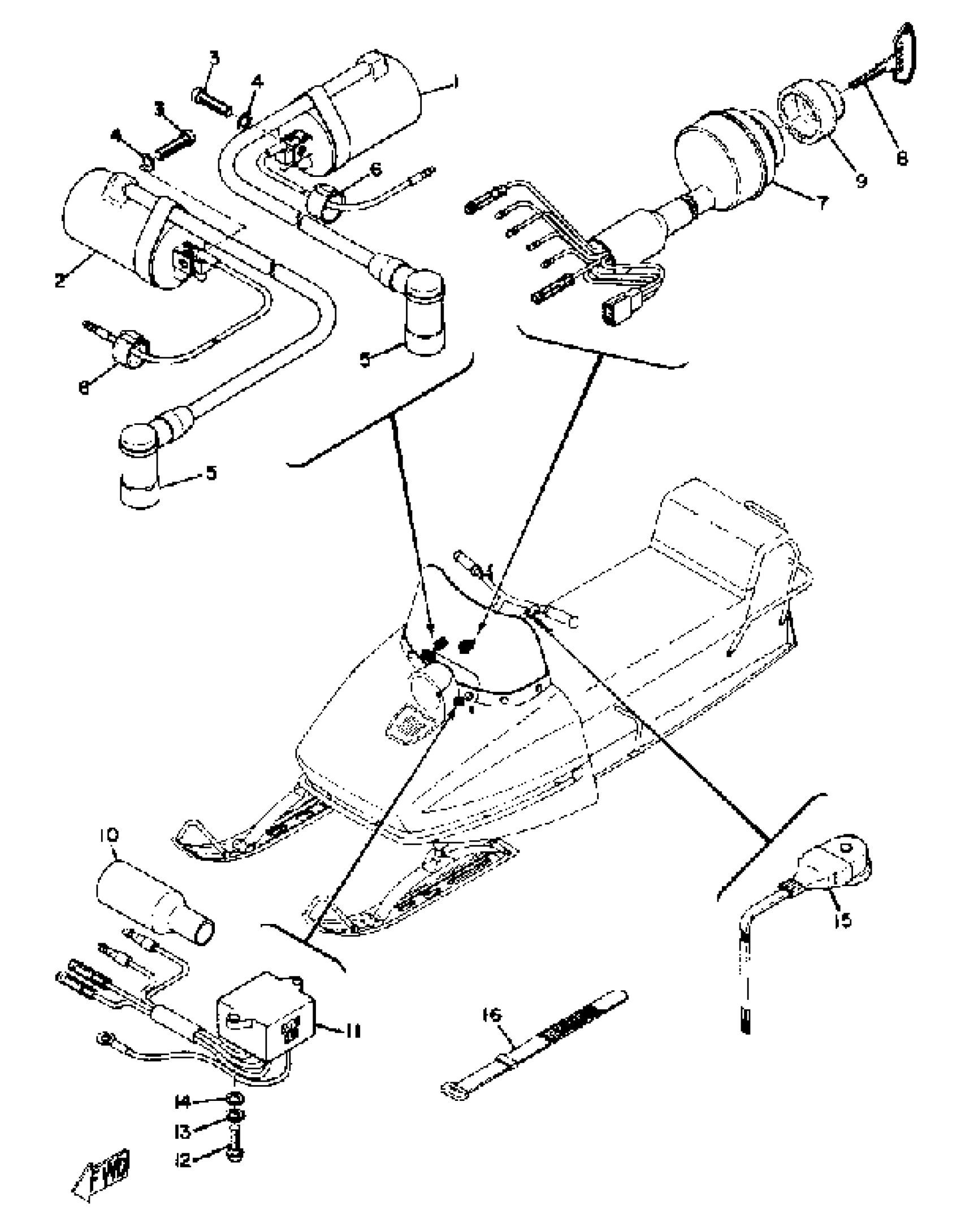

1969 Yamaha SL396 Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

IGNITION COIL ASSEMBLY

807-82310-40-00

1
Out of stock

2

IGNITION COIL ASSEMBLY

206-82310-41-00

1
Out of stock

3

SCREW, PAN HEAD

98517-05020-00

1

$1.35

In stock

4

WASHER(3SX)

92907-05100-00

1

$6.18

In stock

5

PLUG CAP ASSY

56J-82370-00-00

1

$56.63

In stock

6

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock

7

MAIN SWITCH ASSEMBLY

(806-82510-21-00)

1
Out of stock

9

COLLAR, MAIN SWITCH

806-82516-00-00

1
Out of stock

10

COVER, CONNECTER

(806-82599-00-00)

1
Out of stock

11

SILICOM STACK ASSEMBLY

806-82390-20-00

1
Out of stock

12

SCREW, PAN HEAD

(98506-04015-00)

1
Out of stock

13

WASHER(6TA)

92907-04100-00

1

$5.98

In stock

14

WASHER(6E1)

92907-04200-00

—

$1.20

In stock

15

STOP SWITCH ASSEMBLY

(806-82530-00-00)

1
Out of stock

16

BAND, SWITCH CORD

437-83936-11-00

1

$3.20

In stock
