1969 Yamaha SL396 Fuel Tank Diagram

← All diagrams

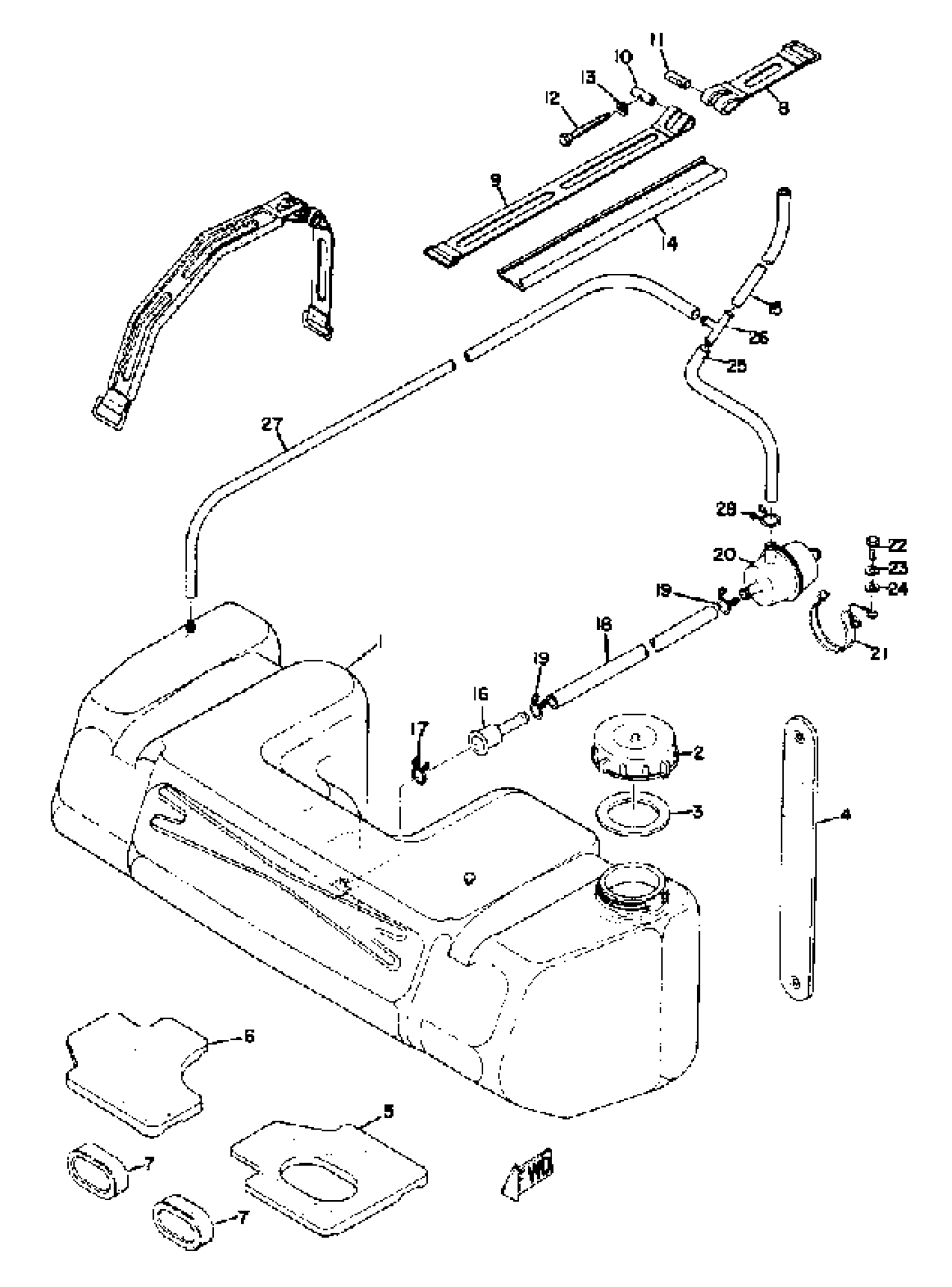

Find the part on the Fuel Tank diagram for your 1969 Yamaha SL396, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1969 Yamaha SL396 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL TANK

(807-24111-00-00)

1
Out of stock

2

BODY, CAP

(809-24611-00-00)

1
Out of stock

3

GASKET, CAP

(806-24612-00-00)

1
Out of stock

4

PROTECTOR, FUEL TNK

(807-24141-00-00)

1
Out of stock

5

DAMPER, LOCATING 1

(807-24181-00-00)

1
Out of stock

6

DAMPER, LOCATING 2

(807-24182-00-00)

1
Out of stock

7

DAMPER, LOCATING 4

(807-24184-00-00)

1
Out of stock

8

BAND, TNK FITTING 1

806-24173-00-00

1
Out of stock

9

BAND, TNK FITTING 2

(807-24199-00-00)

1
Out of stock

10

CLAMP

806-24135-00-00

—

$3.20

In stock

11

NUT, SPEC''L SHAPE (806-24146-00)

90179-05030-00

1
Out of stock

12

SCREW, HEXAGON

(90153-05002-00)

1
Out of stock

13

WASHER, LOCK

(90215-05058-00)

1
Out of stock

14

DAMPER, LOCATING 3

(807-24183-00-00)

1
Out of stock

15

PIPE 10

(807-24321-00-00)

1
Out of stock

16

PIPE, SUCTION 1

807-24335-00-00

1
Out of stock

17

CLIP, PIPE 3

(806-24358-00-00)

1
Out of stock

18

HOSE

90446-11326-00

1
Out of stock

19

CLIP(3BM)

90467-10135-00

—

$6.91

In stock

20

FILTER ASSEMBLY

(806-24560-01-00)

1
Out of stock

21

HOLDER, FILTER

(807-24558-00-00)

1
Out of stock

22

BOLT, HEXAGON

(97306-05015-00)

1
Out of stock

23

WASHER(3SX)

92907-05100-00

—

$6.18

In stock

24

WASHER, PLAIN LARGE

92907-05200-00

—
Out of stock

25

BREATHER, FILTER

(807-24559-00-00)

1
Out of stock

26

PIPE, JOINT

801-24376-00-00

—

$11.18

In stock

27

PIPE, OVERFLOW

(807-24318-00-00)

1
Out of stock

28

CLIP

90467-090A2-00

—

$2.51

In stock
