1969 Yamaha SL396 Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1969 Yamaha SL396, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

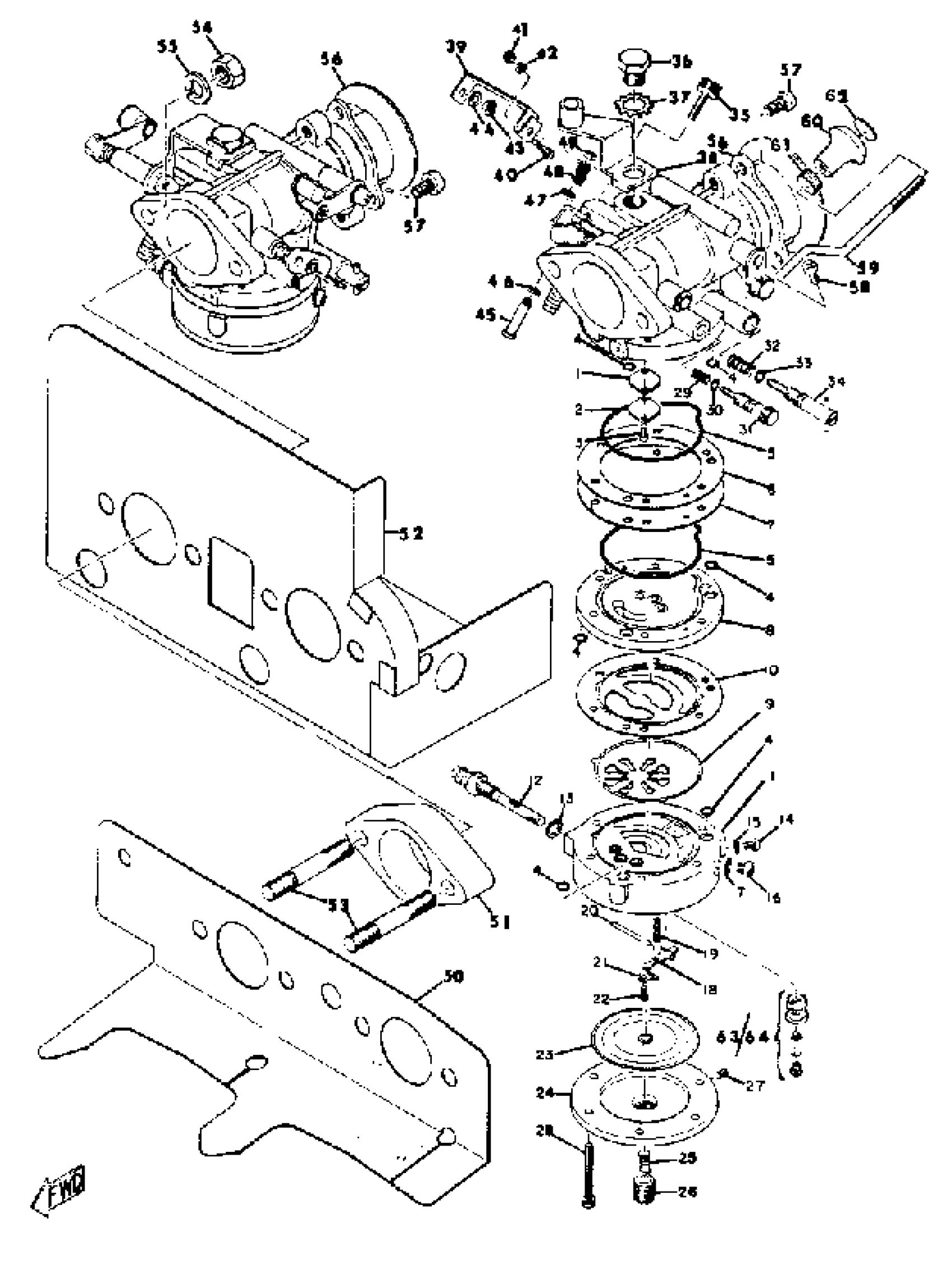

1969 Yamaha SL396 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET

(806-14537-00-00)

1
Out of stock

1

CARBURETOR ASSEMBLY 2

807-14502-00-00

1
Out of stock

2

PLATE

(806-14527-00-00)

1
Out of stock

2

CARBURETOR ASSEMBLY 2

807-14502-00-00

1
Out of stock

3

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

4

O-RING

(806-14561-00-00)

1
Out of stock

5

. O-RING

806-14562-00-00

1
Out of stock

6

. GASKET

806-14536-00-00

1
Out of stock

7

. DIAPHRAGM, PUMP

806-14541-00-00

1
Out of stock

8

BODY, PUMP 1

(806-14542-00-00)

1
Out of stock

9

VALVE,CHECK

806-14552-01-00

1

$47.25

In stock

10

GASKET

(806-14553-00-00)

1
Out of stock

11

BODY, PUMP 2

(806-14543-00-00)

1
Out of stock

12

JOINT

(806-14568-00-00)

1
Out of stock

13

WASHER

(806-14558-00-00)

1
Out of stock

14

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

15

. WASHER

806-14559-00-00

1
Out of stock

16

SCREW

(806-14567-00-00)

1
Out of stock

17

WASHER

(806-14557-00-00)

1
Out of stock

18

ARM, FLOAT

(806-14547-00-00)

1
Out of stock

19

SPRING

(806-14556-00-00)

1
Out of stock

20

PIN, FLOAT ARM

(806-14548-00-00)

1
Out of stock

21

PLATE, PIN FITTING

(806-14549-00-00)

1
Out of stock

22

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

23

DIAPHRAGM

(806-14545-00-00)

1
Out of stock

24

BODY, PUMP 3

(806-14544-00-00)

1
Out of stock

25

SPRING

(806-14555-00-00)

1
Out of stock

26

SCREW, STOP

(806-14565-01-00)

1
Out of stock

27

SCREW, STOP

(806-14566-00-00)

1
Out of stock

28

SCREW

(824-14567-00-00)

1
Out of stock

29

SPRING, AJST SCREW

(806-14531-00-00)

1
Out of stock

30

O-RING

(806-14563-00-00)

1
Out of stock

31

SCREW, ADJUST

(806-14522-00-00)

1
Out of stock

32

SPRING, AJST SCREW

(806-14533-00-00)

1
Out of stock

33

O-RING

(806-14564-00-00)

1
Out of stock

34

SCREW, ADJUST

(806-14521-00-00)

1
Out of stock

35

SCREW, STOP

(806-14523-00-00)

1
Out of stock

36

BOLT(8X2)

90101-08344-00

—

$1.12

In stock

37

WASHER (688)

92990-08400-00

1

$3.46

In stock

38

. BRACKET, THROTTLE

806-14571-00-00

1
Out of stock

39

CONNECTOR

(806-14588-00-00)

1
Out of stock

40

SCREW, PAN HEAD(GA5)

98580-04014-00

—

$2.78

In stock

41

NUT

(806-14595-00-00)

1
Out of stock

42

YBS66-4 WASHER, PLAIN

92990-04200-00

—

$1.10

In stock

43

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

44

WASHER

(806-14598-00-00)

1
Out of stock

45

SCREW

(806-14591-00-00)

1
Out of stock

46

. WASHER

806-14596-00-00

1
Out of stock

48

SPRING

(806-14579-00-00)

1
Out of stock

49

NUT

(806-14594-00-00)

1
Out of stock

50

GASKET

(807-13557-00-00)

1
Out of stock

51

MANIFOLD, INTAKE

(807-13555-00-00)

1
Out of stock

52

GASKET

(807-13567-00-00)

1
Out of stock

53

BOLT, STUD

(90116-08056-00)

1
Out of stock

54

. NUT

95380-08700-00

1

$3.07

In stock

55

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

56

FUNNEL, AIR

(807-14469-00-00)

1
Out of stock

56

FUNNEL

(807-14479-00-00)

1
Out of stock

57

SCREW PAN HEAD

98580-06010-00

—

$6.17

In stock

58

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

59

ROD, CHOKE 1

(807-41256-00-00)

1
Out of stock

60

KNOB, CHOKE

(624-41271-00-00)

1
Out of stock

61

KNOB CHOKE 2

617-41272-01-00

1
Out of stock

62

INDICATOR, CHOKE

(617-24155-00-00)

1
Out of stock

63

VALVE SEAT ASSEMBLY

(806-14590-10-00)

1
Out of stock

64

VALVE SEAT ASSEMBLY

(806-14590-20-00)

1
Out of stock
