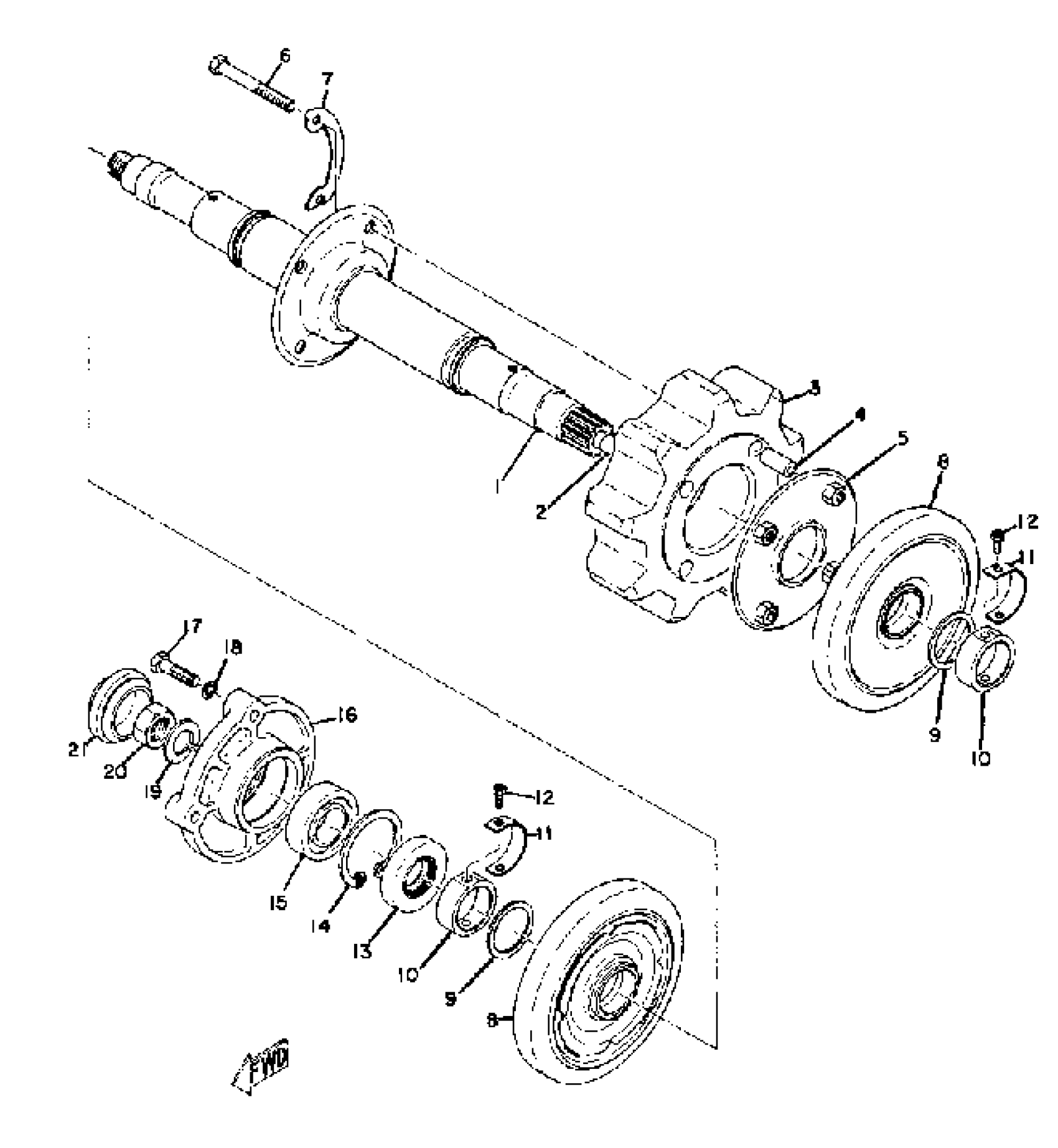

Yamaha SL396 1969 FRONT AXLE Diagram

#

Description
Price

1

FRONT AXLE

807-47510-00-00

Unavailable

2

PLUG

(802-47575-00-00)

Unavailable

3

WHEEL, SPROCKET 1

(806-47531-00-00)

Unavailable

4

COLLAR

90387-09072-00

Unavailable

5

RIM, SPROCKET WHL 2

(806-47522-00-00)

Unavailable

6

BOLT(6TC)

97027-08070-00

Unavailable

7

WASHER, LOCK

802-47517-00-00

Unavailable

8

GUIDE WHEEL

(806-47530-00-00)

Unavailable

9

WASHER (8H0)

90201-34683-00

$10.49

10

COLLAR

(806-47536-00-00)

Unavailable

11

WASHER, LOCK

(806-47539-00-00)

Unavailable

12

SCREW, HEXAGON

90153-06004-00

Unavailable

13

OIL SEAL, SDD-TYPE

(93105-30014-00)

Unavailable

14

CIRCLIP(26H)

99009-52500-00

$12.49

15

BRG,R-B 6205C4 52MM 130G KY

93306-20529-00

$40.99

16

BRG,R-B 6205C4 52MM 130G KY

93306-20529-00

$40.99

17

BOLT(JF7)

97080-06030-00

Unavailable

18

WASHER, SPRING

92995-06100-00

Unavailable

19

WASHER(N15)

92907-18100-00

Unavailable

20

NUT

90170-18089-00

Unavailable

21

CAP

(802-47552-01-00)

Unavailable
