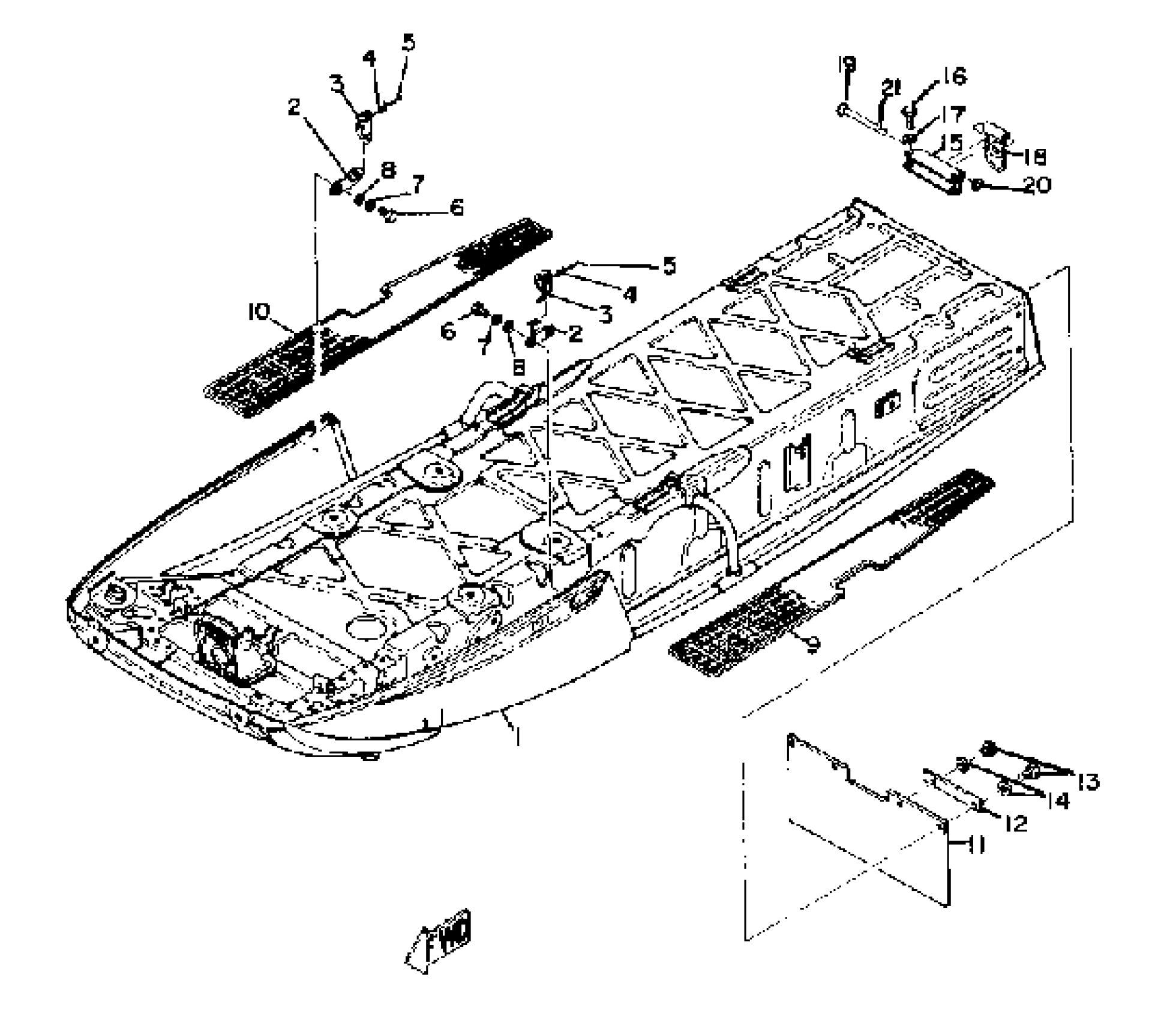

Yamaha SL396 1969 FRAME Diagram

#

Description

Price

1

FRAME

(807-21910-00-00)

Unavailable

1

LATCH ASSEMBLY

807-77170-00-00

Unavailable

3

. LEVER, LATCH 1

806-77173-00-00

Unavailable

4

. SPRING, TORSION

90508-10012-00

Unavailable

5

. PIN, SPECIAL SHAPE

90249-04068-00

Unavailable

6

BOLT, HEXAGON

(97306-05015-00)

Unavailable

7

WASHER(3SX)

92907-05100-00

$8.49

8

WASHER, PLATE 8067717800

90201-05029-00

$8.49

9

COVER, FOOTREST

(806-27413-00-00)

Unavailable

10

COVER, FOOTREST

(806-27423-00-00)

Unavailable

11

FLAP

(807-77595-02-00)

Unavailable

12

PLATE, FLAP 1

(807-77593-00-00)

Unavailable

13

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

14

BRACKET, HITCH 2

(802-77592-00-00)

Unavailable

14

WASHER, SPRING

92995-06100-00

Unavailable

16

BOLT (682)

97095-06040-00

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable

18

BRACKET, HITCH 1

802-77591-00-00

Unavailable

19

PIN, CLEVIS

(91701-08102-00)

Unavailable

20

WASHER, PLAIN

92990-08200-00

Unavailable

21

PIN, COTTER

91490-25020-00

Unavailable
