FLYWHEEL MAGNETO

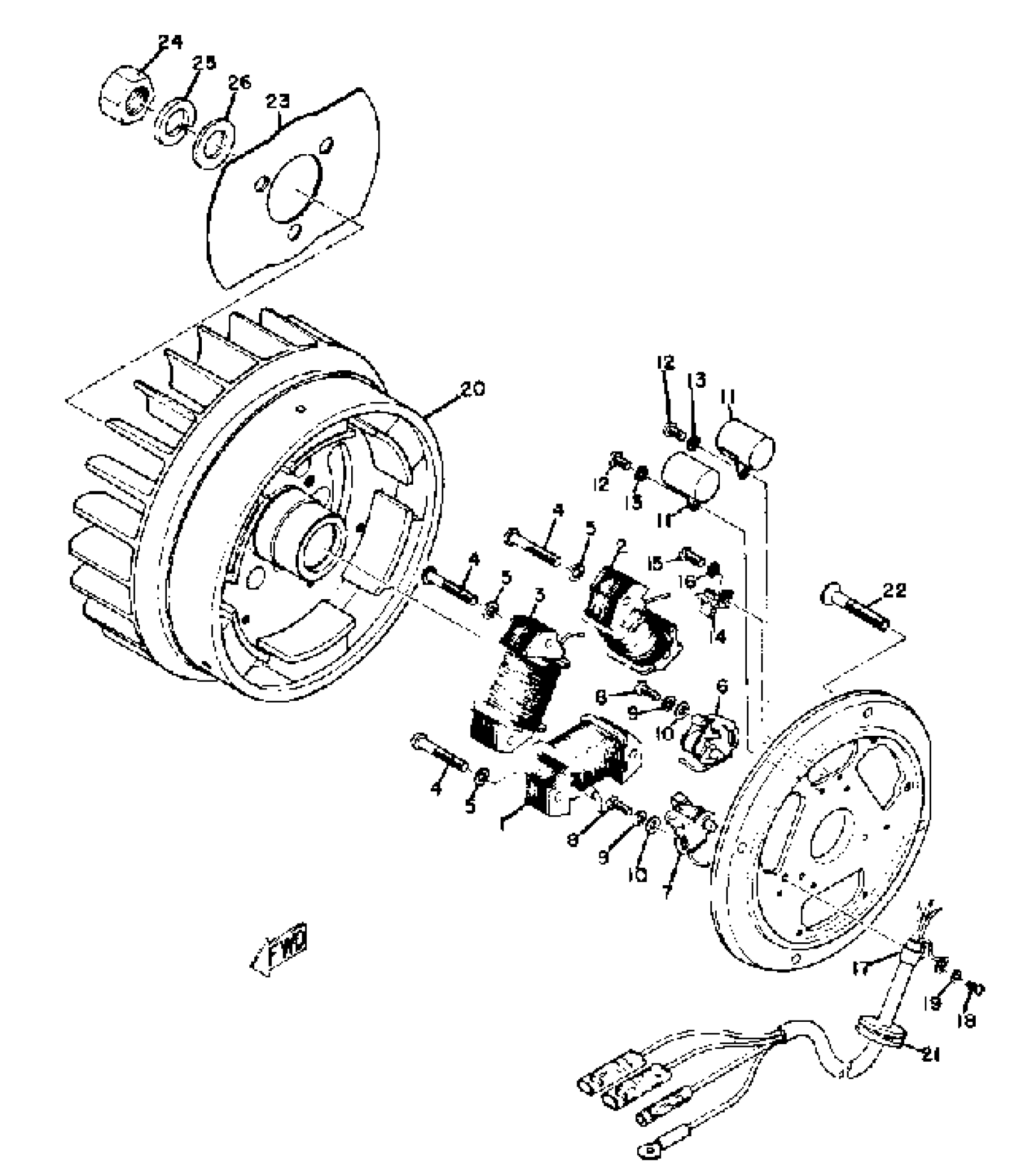

Yamaha SL396 1969 FLYWHEEL MAGNETO Diagram
#
Description
Price
1
FLYWHL MAGNETO ASSEMBLY
(806-81300-20-00)
Unavailable
1
COIL, IGNITION 1
(806-81311-20-00)
Unavailable
2
. COIL, SOURCE (RH)
806-81312-20-00
Unavailable
3
COIL, LIGHTING 1
(806-81313-20-00)
Unavailable
4
. SCREW, PAN HEAD
802-81345-20-00
Unavailable
5
YBS67-5 WASHER, SPRING
92990-05100-00
$0.35
6
. CONTACT BRKR ASSEMBLY
806-81321-20-00
Unavailable
7
CONTACT BREAKER ASSY
1M1-81321-20-00
$114.99
8
SCREW, PAN HEAD
110-81346-21-00
$5.49
9
YBS67-4 WASHER, SPRING
92990-04100-00
$0.86
10
YBS66-4 WASHER, PLAIN
92990-04200-00
$1.86
11
. CONDENSER 1
802-81325-90-00
Unavailable
12
SCREW, PAN HEAD
110-81346-21-00
$5.49
13
YBS67-4 WASHER, SPRING
92990-04100-00
$0.86
14
. LUBRICATOR
116-81331-20-00
Unavailable
15
SCREW, PAN HEAD
110-81346-21-00
$5.49
16
YBS67-4 WASHER, SPRING
92990-04100-00
$0.86
17
CLAMP, LEAD
104-81328-20-00
Unavailable
18
SCREW, PAN HEAD (713)
98580-04008-00
Unavailable
19
YBS67-4 WASHER, SPRING
92990-04100-00
$0.86
20
ROTOR ASSEMBLY
(806-81350-20-00)
Unavailable
21
GROMMET
(104-81329-00-00)
Unavailable
22
SCREW, PAN
98507-06014-00
Unavailable
23
COVER, HOLE
(807-81362-00-00)
Unavailable
24
NUT
90170-16425-00
Unavailable
25
WASHER(JN5)
92907-16100-00
Unavailable
26
WASHER
(92901-16247-00)
Unavailable
