Description

Price

1

JOINT, EXHAUST L

(807-14615-01-00)

Unavailable

2

JOINT, EXHAUST R

(807-14625-01-00)

Unavailable

3

GASKET, EXST PIPE

807-14613-02-00

Unavailable

4

GASKET, EXST PIPE

807-14623-02-00

Unavailable

5

BOLT, STUD

90116-08050-00

Unavailable

6

BOLT, STUD (806-14661-00)

90116-08041-00

Unavailable

7

BOLT (682)

97013-08025-00

$8.49

9

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

10

NUT, U

95617-08100-00

$9.49

11

MUFFLER ASSEMBLY L

(810-14710-02-00)

Unavailable

12

STAY, MUFFLER 1

(807-14771-00-00)

Unavailable

13

BOLT

97013-08045-00

Unavailable

14

BOLT, HEXAGON

97013-08016-00

$1.01

15

NUT(6L2)

95333-08600-00

$2.49

16

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

17

WASHER, PLAIN

92990-08200-00

Unavailable

18

PROTECTOR, MUFF 1

(807-14718-00-00)

Unavailable

19

WASHER

(807-14759-00-00)

Unavailable

20

WASHER

(807-14616-00-00)

Unavailable

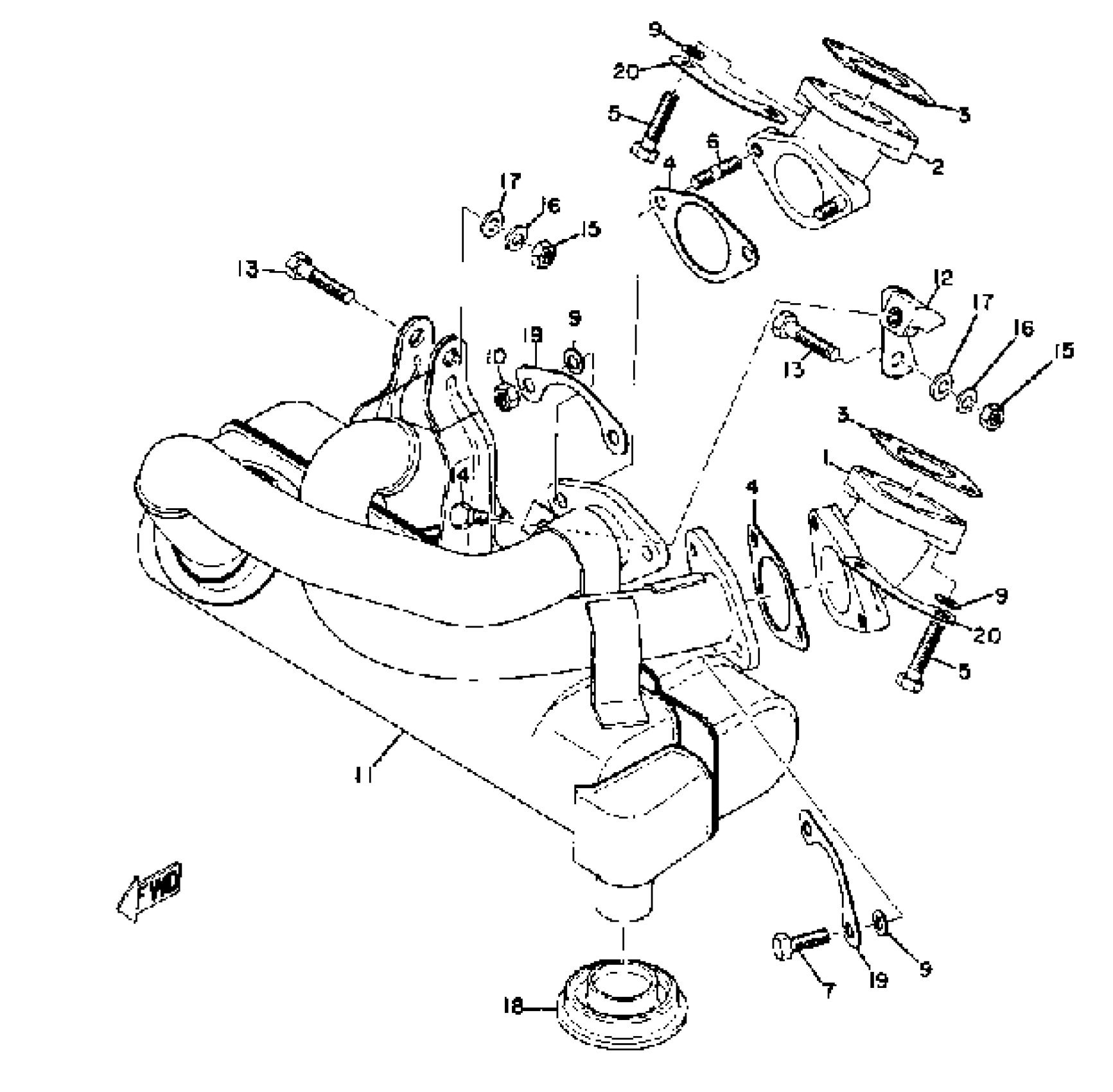

Yamaha SL396 1969 EXHAUST Diagram

JOINT, EXHAUST L

JOINT, EXHAUST R

GASKET, EXST PIPE

GASKET, EXST PIPE

BOLT, STUD

BOLT, STUD (806-14661-00)

BOLT (682)

YBS67-8 WASHER, SPRING

NUT, U

MUFFLER ASSEMBLY L

STAY, MUFFLER 1

BOLT

BOLT, HEXAGON

NUT(6L2)

YBS67-8 WASHER, SPRING

WASHER, PLAIN

PROTECTOR, MUFF 1

WASHER

WASHER
