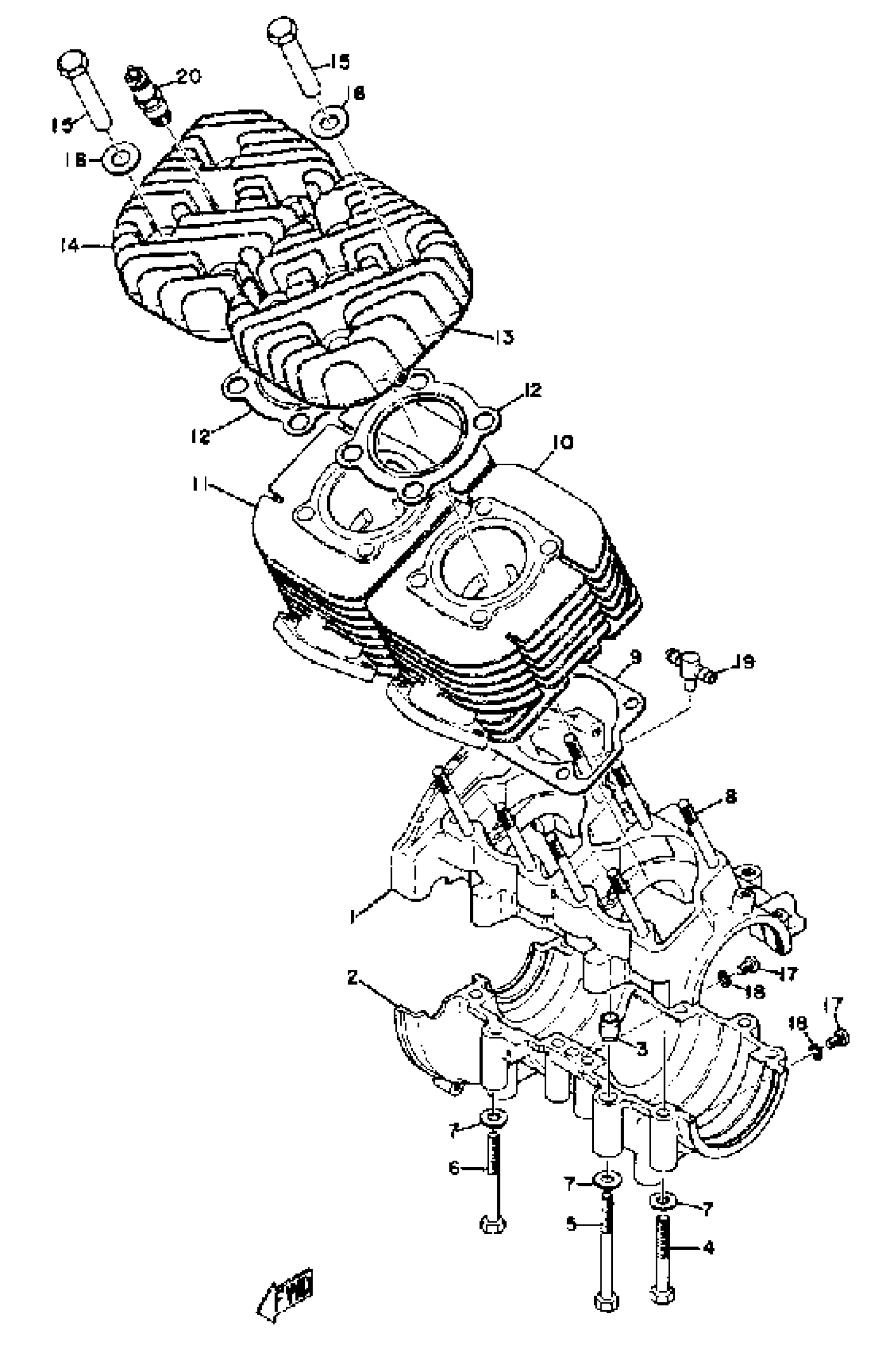

Yamaha SL396 1969 CRANK CASE Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY

(807-15100-00-00)

Unavailable

3

PIN, DOWEL

99530-12016-00

$4.89

4

BOLT (663)

97013-08060-00

$4.41

5

BOLT(6TC)

97027-08070-00

Unavailable

6

BOLT,HEXAGON

97013-08085-00

Unavailable

7

WASHER, PLAIN

92990-08200-00

Unavailable

8

BOLT (248-11361-00)

90116-08064-00

$7.49

9

GASKET, CYLINDER

807-11351-09-00

Unavailable

10

CYLINDER 1

(807-11311-00-00)

Unavailable

11

CYLINDER 2

807-11321-00-00

Unavailable

12

GASKET, CYLINDER HEAD 1

807-11181-00-00

Unavailable

13

HEAD, CYLINDER 1

807-11111-01-00

Unavailable

14

HEAD, CYLINDER 2

807-11121-01-00

Unavailable

15

NUT, SPEC''L SHAPE

90179-08076-00

Unavailable

16

YBS66-12 WASHER,PLAIN

92990-12200-00

$8.49

17

SCREW PAN HEAD

98580-06010-00

Unavailable

18

GASKET

90430-06017-00

Unavailable

19

PIPE, JOINT

(807-24461-00-00)

Unavailable

20

B7HS NGK 4PK

B7H-S0000-00-00

Unavailable
