Description

Price

1

FRONT BUMPER

(807-77510-00-00)

Unavailable

2

END, BUMPER

(806-77523-00-00)

Unavailable

3

NUT(6L2)

95333-08600-00

$2.49

4

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

5

WASHER, PLAIN

92990-08200-00

Unavailable

6

BRACKET, FUEL TNK 1

(806-24191-00-00)

Unavailable

7

BUMPER, REAR 1

(807-77541-00-00)

Unavailable

8

BOLT

97013-08045-00

Unavailable

9

BOLT(JA9)

90101-08691-00

$4.29

10

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

11

GRIP, ASSIST 1

(807-77571-00-00)

Unavailable

12

BUSH, RUBBER 1

(806-77515-00-00)

Unavailable

13

SCREW, SPEC''L SHAPE

(90149-06052-00)

Unavailable

14

NUT, SPECIAL

806-77573-00-00

Unavailable

15

PIN, COTTER

91490-16020-00

Unavailable

16

BOLT(JA9)

90101-08691-00

$4.29

17

WASHER, PLAIN

92990-08200-00

Unavailable

18

COVER, ASSIST GRIP

(807-77575-00-00)

Unavailable

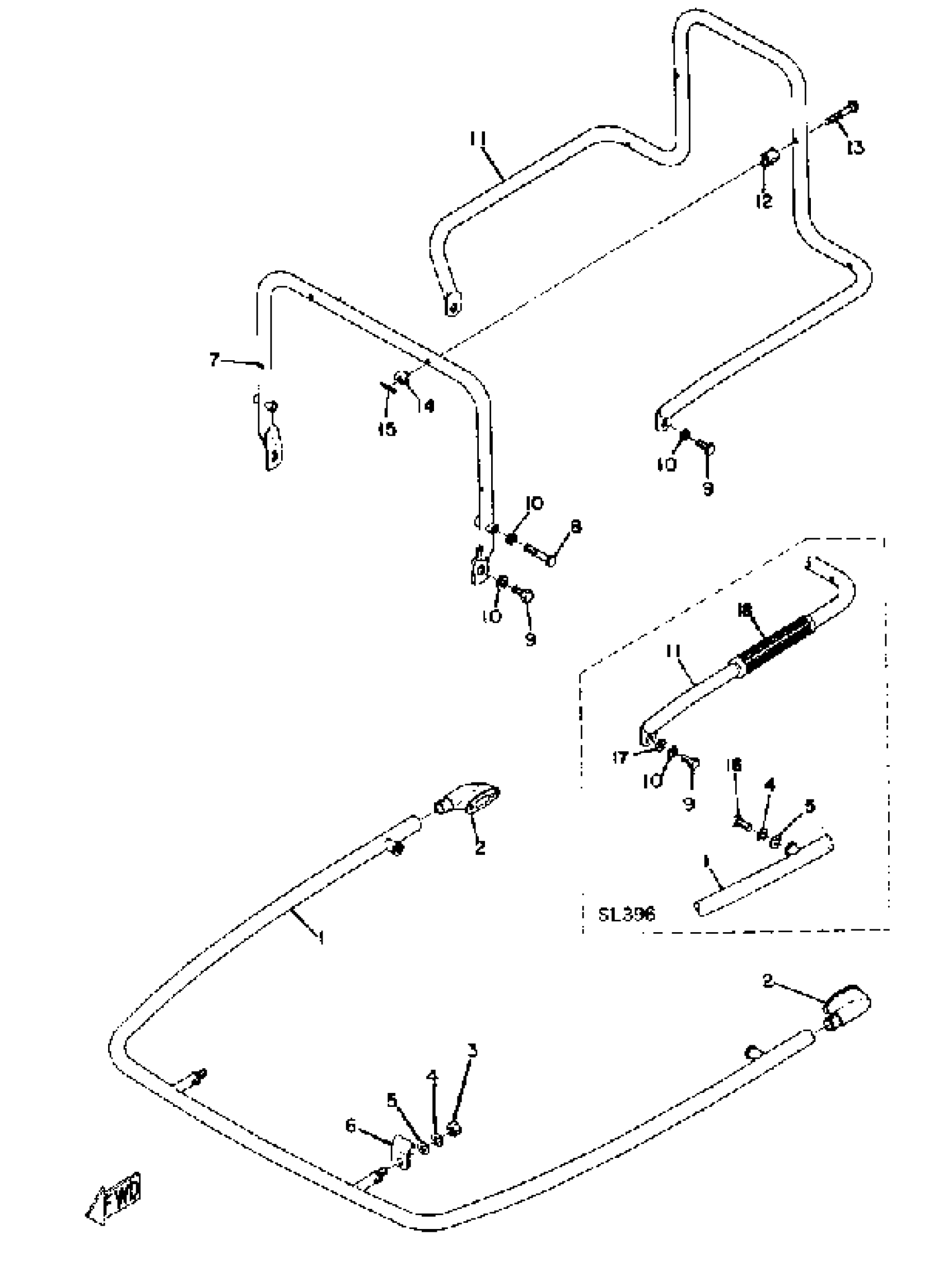

Yamaha SL396 1969 BUMPER Diagram

FRONT BUMPER

END, BUMPER

NUT(6L2)

YBS67-8 WASHER, SPRING

WASHER, PLAIN

BRACKET, FUEL TNK 1

BUMPER, REAR 1

BOLT

BOLT(JA9)

YBS67-8 WASHER, SPRING

GRIP, ASSIST 1

BUSH, RUBBER 1

SCREW, SPEC''L SHAPE

NUT, SPECIAL

PIN, COTTER

BOLT(JA9)

WASHER, PLAIN

COVER, ASSIST GRIP
