1968 Yamaha SL351 OIL Pump Diagram

← All diagrams

Find the part on the OIL Pump diagram for your 1968 Yamaha SL351, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

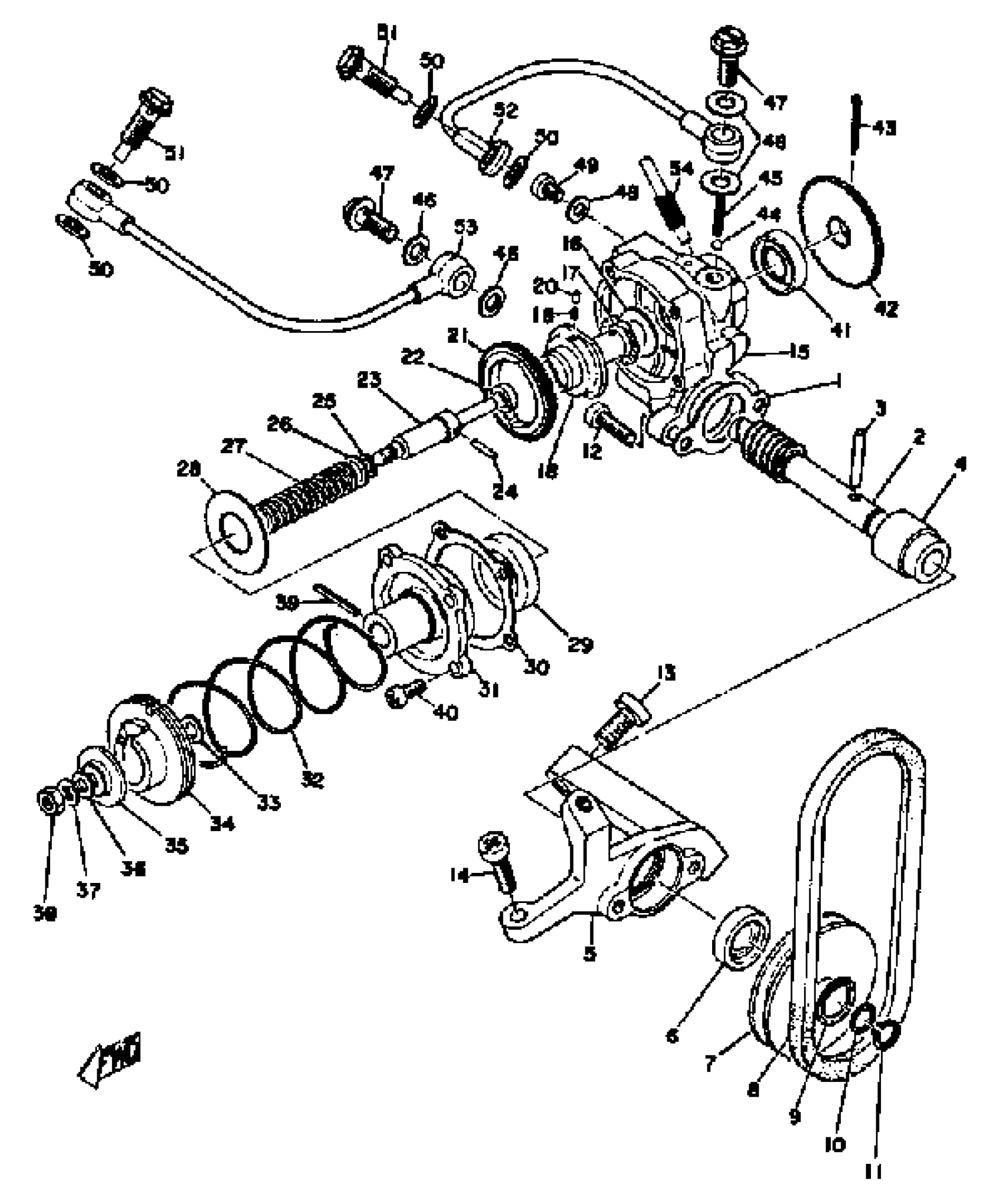

1968 Yamaha SL351 OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL PUMP ASSEMBLY

(168-13101-03-00)

1
Out of stock

1

GASKET, PUMP CASE

126-13116-01-00

1
Out of stock

2

TOOL

UNA-VAILA-BL-EI

1
Out of stock

3

PIN,DOWEL (137)

93603-22028-00

1
Out of stock

4

METAL, WORM SHAFT OUTER

137-13176-00-00

—
Out of stock

5

BRACKET, PUMP

(802-13199-01-00)

1
Out of stock

6

OIL SEAL (10X22X7-137)

93101-10002-00

1

$6.68

In stock

7

GEAR, PUMP DRIVE

807-13178-00-00

1
Out of stock

8

BELT (810-13189-00)

808-13189-00-00

1
Out of stock

9

WASHER, WAVE (137)

90206-11016-00

—

$12.72

In stock

10

PLATE, CAM THRUST

137-13148-00-00

—

$3.28

In stock

11

CIRCLIP(10W)

99009-10400-00

1

$3.91

In stock

12

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

13

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock

14

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

15

TOOL

UNA-VAILA-BL-EI

1
Out of stock

16

PLATE, CAM THRUST

137-13148-00-00

—

$3.28

In stock

17

WASHER, WAVE (137)

90206-11016-00

—

$12.72

In stock

18

TOOL

UNA-VAILA-BL-EI

1
Out of stock

19

SPRING, COMPRESSION

(90501-02016-00)

1
Out of stock

20

PIN, DOWEL

(93602-04029-00)

1
Out of stock

21

GEAR, WORM WHEEL

(168-13124-00-00)

1
Out of stock

22

OIL SEAL

93104-04114-00

—

$3.35

In stock

23

TOOL

UNA-VAILA-BL-EI

1
Out of stock

24

PIN,DOWEL (137)

93603-12030-00

—

$1.88

In stock

25

. CIRCLIP, PLUNGER

93440-08001-00

1
Out of stock

26

SEAT, SPRING

(137-13134-00-00)

1
Out of stock

27

SPRING, PLNGR RTRN

(137-13135-00-00)

1
Out of stock

28

PLATE, WORM WHEEL

(137-13127-00-00)

1
Out of stock

29

OIL SEAL (14X25X5-2H7)

93104-14059-00

—
Out of stock

30

. GASKET, PUMP CASE COVER

137-13142-00-00

1
Out of stock

31

TOOL

UNA-VAILA-BL-EI

1
Out of stock

32

. SPRING, TORSION (156-13145-00)

90508-10013-00

1
Out of stock

33

SHIM,PLUNGER

137-13137-00-10

—

$6.43

In stock

34

PULLEY, ADJUSTING

(364-13144-01-00)

1
Out of stock

35

PLATE, ADJUSTING

137-13138-01-00

—

$12.17

In stock

36

SHIM,PLUNGER

137-13137-00-10

—

$6.43

In stock

37

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

38

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

39

. PIN

91608-20010-00

1
Out of stock

40

SCREW, PAN HEAD (E56)

98580-04010-00

—

$6.17

In stock

41

OIL SEAL (J10)

93101-10090-00

—

$6.17

In stock

42

PLATE, STARTER

(137-13128-00-00)

1
Out of stock

43

. PIN, COTTER

91401-12018-00

1
Out of stock

44

BALL

93505-32002-00

—

$2.22

In stock

45

SPRING, COMPRESSION

(90501-02017-00)

1
Out of stock

46

GASKET(3FP)

90430-06224-00

—

$4.32

In stock

47

BOLT UNION 137131650000

90401-06001-00

—

$7.48

In stock

48

GASKET 137131870000

90430-04004-00

—
Out of stock

49

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

50

GASKET(3FP)

90430-06224-00

—

$4.32

In stock

51

BOLT, UNION

90401-06011-00

1
Out of stock

52

PIPE, DELIVERY 1

(802-13161-00-00)

1
Out of stock

53

PIPE, DELIVERY 2

(802-13171-00-00)

1
Out of stock

54

SPRING, OIL PIPE

(126-13184-00-00)

1
Out of stock
