1968 Yamaha SL351 Inlet & Exhaust Diagram

← All diagrams

Find the part on the Inlet & Exhaust diagram for your 1968 Yamaha SL351, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

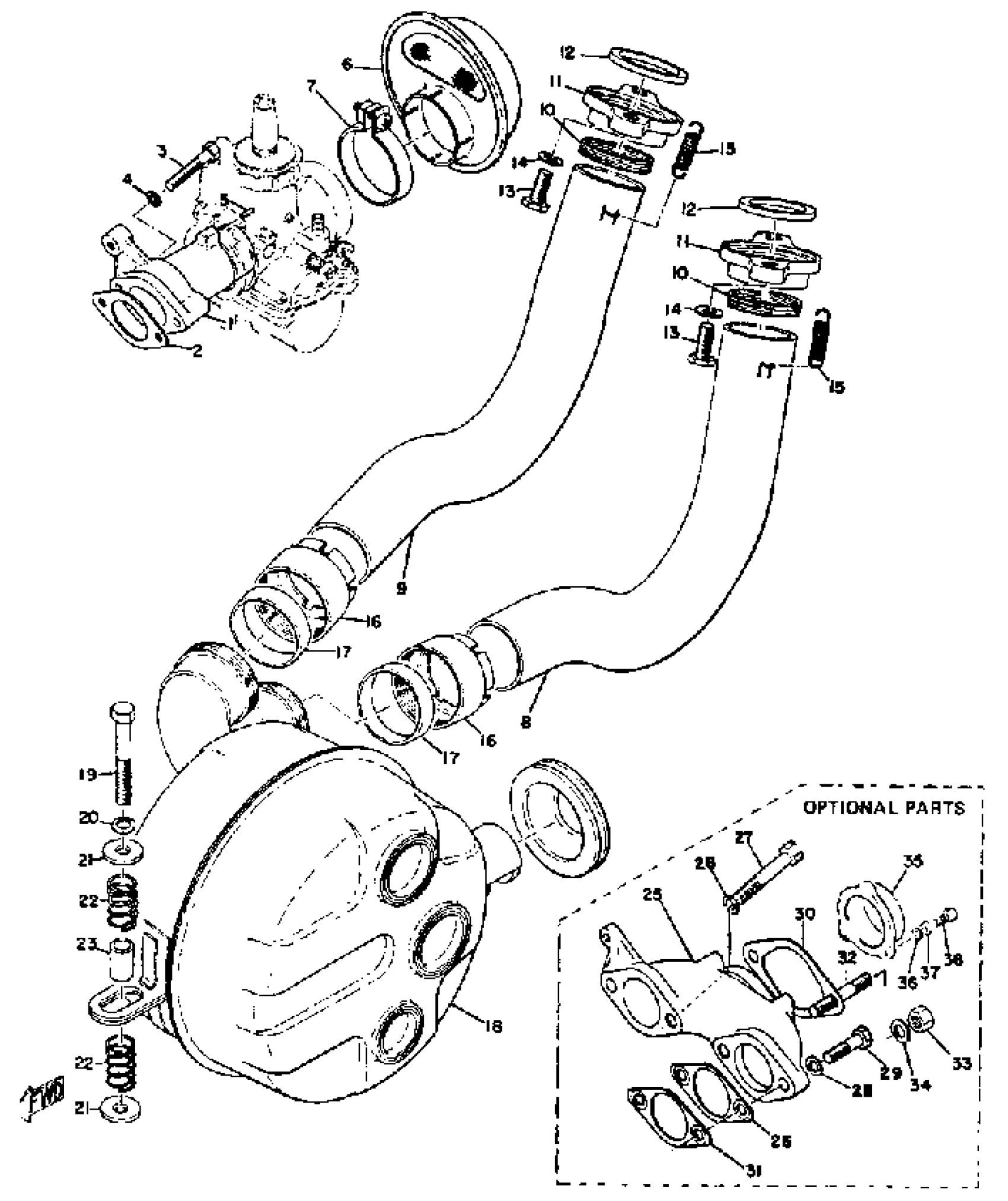

1968 Yamaha SL351 Inlet & Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MANIFOLD, INTAKE

(801-13555-00-00)

1
Out of stock

2

GASKET, MANIFOLD

(802-13556-00-00)

1
Out of stock

3

BOLT(3RV)

97014-06035-00

1

$1.54

In stock

4

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

5

PIN, DOWEL

93602-10061-00

1
Out of stock

6

SILENCER, INTAKE 2

(802-14441-00-00)

1
Out of stock

7

CLAMP, HOSE

90460-45032-00

1
Out of stock

8

TOOL

UNA-VAILA-BL-EI

1
Out of stock

9

PIPE, EXHAUST R

(802-14621-00-00)

1
Out of stock

10

GASKET, EXST PIPE

(802-14623-00-00)

1
Out of stock

11

TOOL

UNA-VAILA-BL-EI

1
Out of stock

12

GASKET, EXST PIPE

(802-14613-00-00)

1
Out of stock

13

BOLT, HEXAGON

97013-08030-00

1

$3.20

In stock

14

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

15

SPRING, TENSION

90506-12028-00

1
Out of stock

16

NUT, MUFFLER JOINT

(168-14713-00-00)

1
Out of stock

17

GASKET (168-14714-00)

90430-42088-00

1
Out of stock

18

MUFFLER ASSEMBLY L

(802-14710-00-00)

1
Out of stock

19

BOLT (663)

97013-08060-00

—

$3.25

In stock

20

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

21

WASHER, PLATE (4W3)

90201-086A3-00

—

$6.29

In stock

22

SPRING, COMPRESSION (802-14773-00)

90501-26149-00

1
Out of stock

23

COLLAR (802-14638-00)

90387-09071-00

1
Out of stock

24

TOOL

UNA-VAILA-BL-EI

1
Out of stock

25

MANIFOLD, INTAKE

(802-13555-60-00)

1
Out of stock

26

GASKET

(802-13557-00-00)

1
Out of stock

27

BOLT, HEXAGON

(97321-06085-00)

1
Out of stock

28

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

29

BOLT(3RV)

97014-06035-00

1

$1.54

In stock

30

GASKET, MANIFOLD

810-13556-09-00

1
Out of stock

31

GASKET, MANIFOLD

(802-13556-00-00)

1
Out of stock

32

BOLT, STUD

90116-08150-00

1
Out of stock

33

. NUT

95380-08700-00

1

$3.07

In stock

34

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

35

TOOL

UNA-VAILA-BL-EI

1
Out of stock

36

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

37

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

38

SCREW, PAN

98507-06014-00

—

$6.18

In stock
