1968 Yamaha SL351 Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1968 Yamaha SL351, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

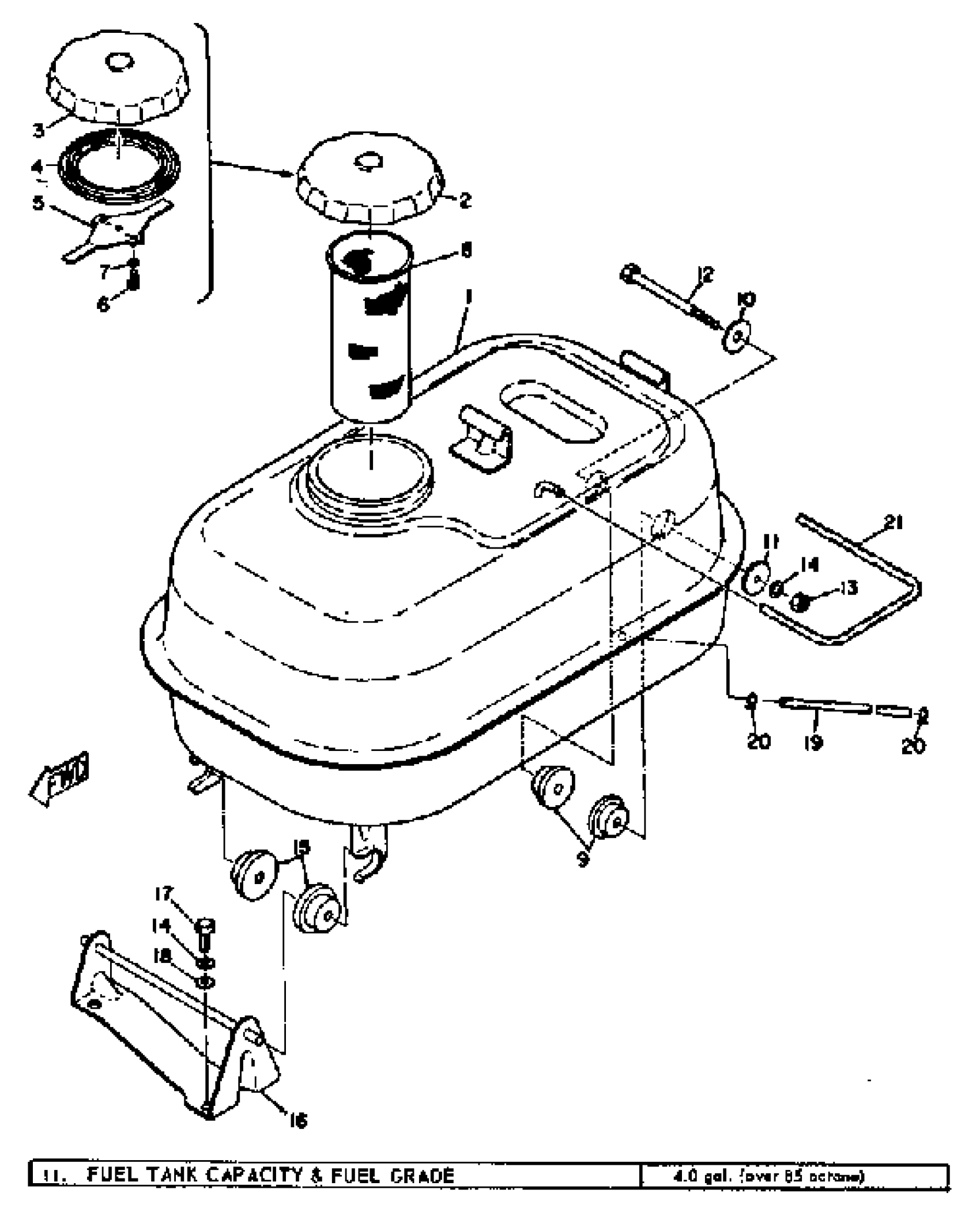

1968 Yamaha SL351 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TOOL

UNA-VAILA-BL-EI

1
Out of stock

2

CAP ASSEMBLY

(802-24610-00-00)

1
Out of stock

3

TOOL

UNA-VAILA-BL-EI

1
Out of stock

4

TOOL

UNA-VAILA-BL-EI

1
Out of stock

5

TOOL

UNA-VAILA-BL-EI

1
Out of stock

6

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

7

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

8

STRAINER

802-24167-00-00

1
Out of stock

9

DAMPER, LOCATING 1

(137-24181-00-00)

1
Out of stock

10

WASHER, PLATE (4W3)

90201-086A3-00

1

$6.29

In stock

11

WASHER PLATE 137241870000

90201-06072-00

1
Out of stock

12

BOLT

(90109-06026-00)

1
Out of stock

13

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

14

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

15

DAMPER, LOCATING 1

(802-24181-00-00)

1
Out of stock

16

TOOL

UNA-VAILA-BL-EI

1
Out of stock

17

BOLT(3JP)

97017-06010-00

—

$2.62

In stock

18

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

19

TOOL

UNA-VAILA-BL-EI

1
Out of stock

20

CLIP 101235600

90467-08003-00

—

$6.13

In stock

21

TOOL

UNA-VAILA-BL-EI

1
Out of stock
