1968 Yamaha SL351 Fuel Pump Diagram

← All diagrams

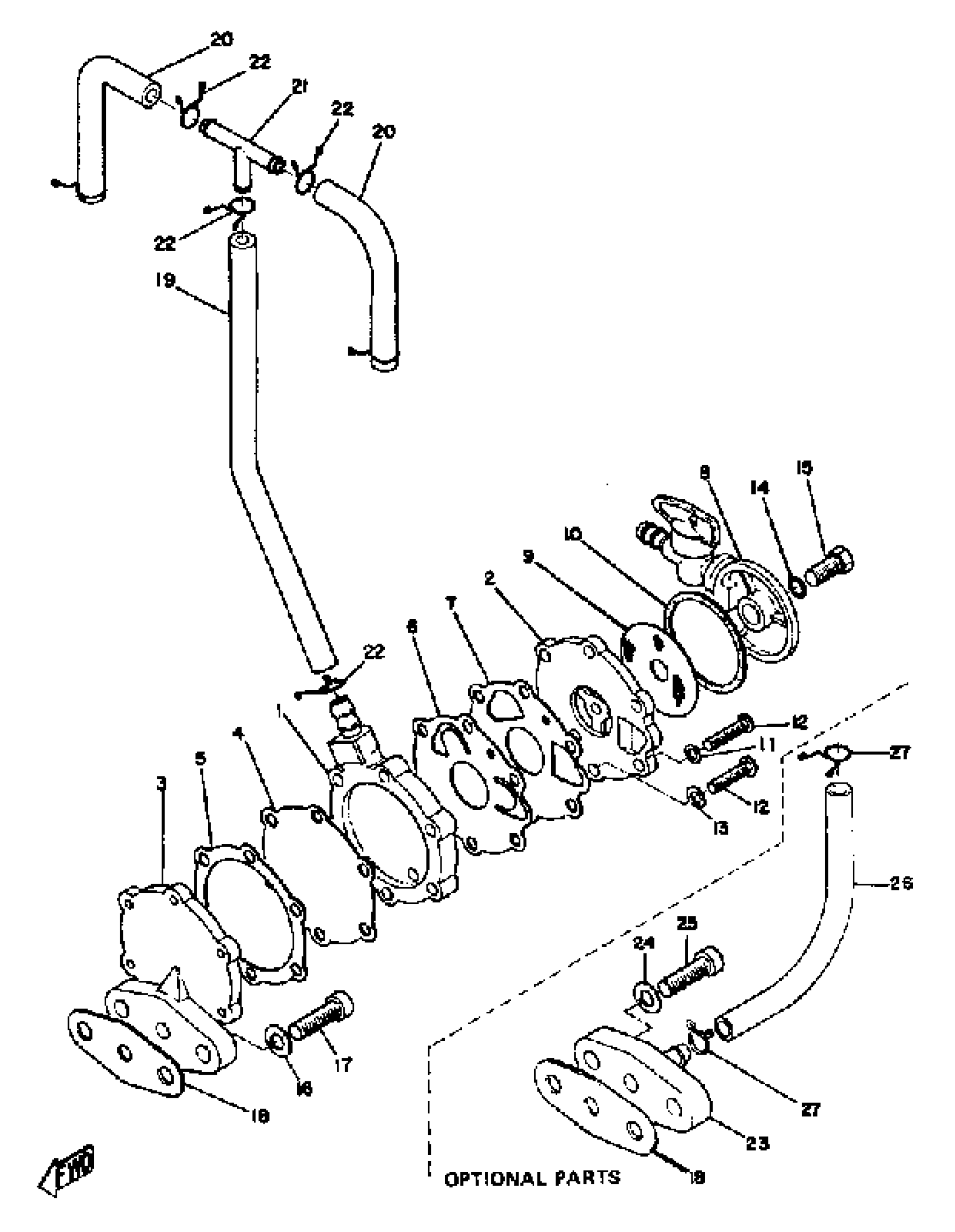

Find the part on the Fuel Pump diagram for your 1968 Yamaha SL351, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1968 Yamaha SL351 Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL PUMP ASSEMBLY

(802-24410-00-00)

1
Out of stock

1

TOOL

UNA-VAILA-BL-EI

1
Out of stock

2

TOOL

UNA-VAILA-BL-EI

1
Out of stock

3

TOOL

UNA-VAILA-BL-EI

1
Out of stock

4

. DIAPHRAGM

801-24411-00-00

1
Out of stock

5

TOOL

UNA-VAILA-BL-EI

1
Out of stock

6

VALVE, CHECK

(801-24421-00-00)

1
Out of stock

7

GASKET, BODY 2

(801-24435-00-00)

1
Out of stock

8

TOOL

UNA-VAILA-BL-EI

1
Out of stock

9

NET, FILTER

(801-24451-00-00)

1
Out of stock

10

GASKET, BODY 3

(801-24436-00-00)

1
Out of stock

11

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

12

SCREW, PAN HEAD

98507-04018-00

1
Out of stock

13

GASKET, BODY 5

(801-24438-00-00)

1
Out of stock

14

. GASKET, BODY 4

801-24437-00-00

1
Out of stock

15

TOOL

UNA-VAILA-BL-EI

1
Out of stock

16

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

17

SCREW PAN HEAD

98580-06020-00

—

$5.10

In stock

18

GASKET, FUEL PUMP 1

(801-24431-00-00)

1
Out of stock

19

PIPE 2

(801-24312-00-00)

1
Out of stock

20

TOOL

UNA-VAILA-BL-EI

1
Out of stock

21

PIPE, JOINT

801-24376-00-00

—

$11.18

In stock

22

CLIP 101235600

90467-08003-00

—

$6.13

In stock

23

TOOL

UNA-VAILA-BL-EI

1
Out of stock

24

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

25

SCREW PAN HEAD

98580-06020-00

—

$5.10

In stock

26

TOOL

UNA-VAILA-BL-EI

1
Out of stock

27

CLIP

90467-090A2-00

—

$2.51

In stock
