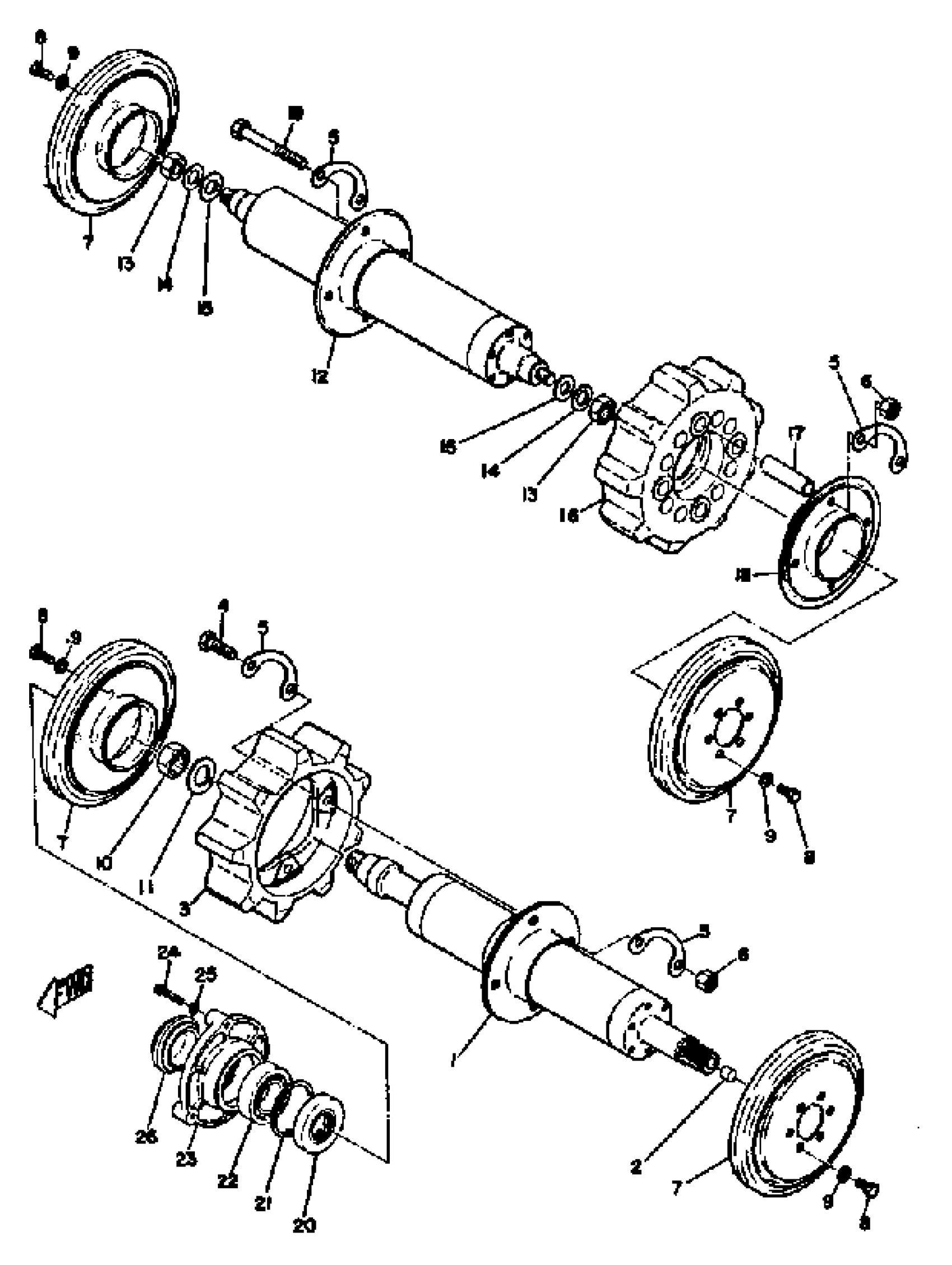

Yamaha SL351 1968 FRONT AXLE & REAR AXLE Diagram

#

Description
Price

1

FRONT AXLE

(802-47510-00-00)

Unavailable

2

PLUG

(802-47575-00-00)

Unavailable

3

TOOL

UNA-VAILA-BL-EI

Unavailable

4

BOLT (682)

97013-08025-00

$8.49

5

WASHER, LOCK

802-47517-00-00

Unavailable

6

NUT(6L2)

95333-08600-00

$2.49

7

TOOL

UNA-VAILA-BL-EI

Unavailable

8

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

9

WASHER, SPRING

92995-06100-00

Unavailable

10

NUT

90170-18089-00

Unavailable

11

WASHER(N15)

92907-18100-00

$9.49

12

REAR AXLE

(802-47520-00-00)

Unavailable

13

NUT, HEXAGON SMALL

95317-12700-00

$8.49

14

YBS67-12 WASHER,SPRING

92990-12100-00

$8.49

15

YBS66-12 WASHER,PLAIN

92990-12200-00

$8.49

16

WHEEL, SPROCKET 1

(806-47531-00-00)

Unavailable

17

COLLAR

90387-09072-00

Unavailable

18

RIM, SPROCKET

(802-47523-00-00)

Unavailable

19

BOLT(6TC)

97027-08070-00

Unavailable

20

OIL SEAL, SDD-TYPE (93110-32002)

93105-32008-00

Unavailable

21

CIRCLIP(26H)

99009-52500-00

Unavailable

22

BRG,R-B 6205C4 52MM 130G KY

93306-20529-00

Unavailable

23

HOUSING, FRONT AXLE

(802-47551-00-00)

Unavailable

24

BOLT, HEXAGON

97017-06025-00

Unavailable

25

WASHER, SPRING

92995-06100-00

Unavailable

26

CAP

(802-47552-01-00)

Unavailable
