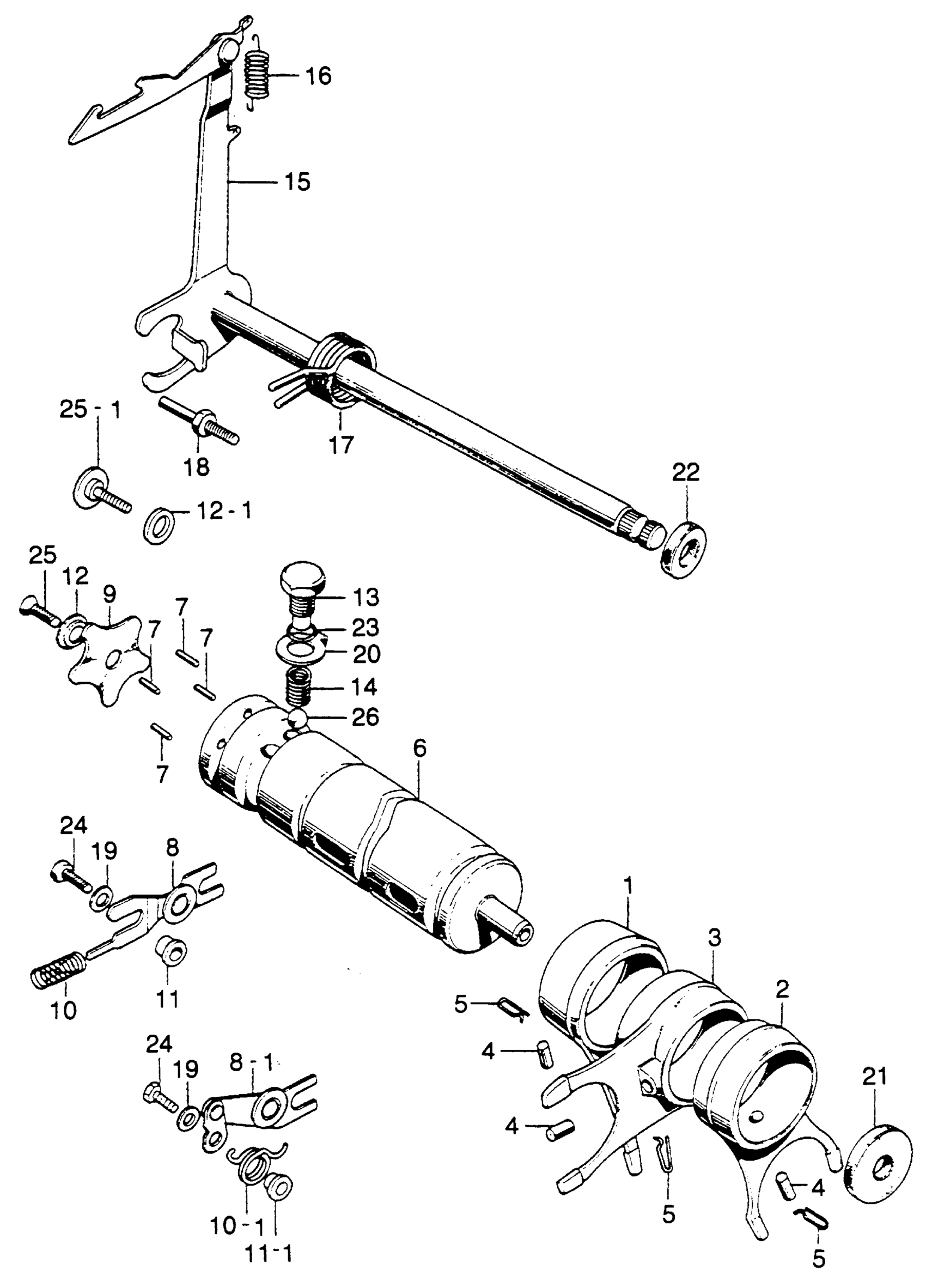

Honda SL350K2A MOTORCYCLE, JPN, VIN# SL350-3000001 SHIFT DRUM + SHIFT ARM Diagram

#

Description
Price

1

FORK, R. GEARSHIFT (NOT AVAILABLE)

24211-340-000

Unavailable

2

FORK, L. GEARSHIFT (NOT AVAILABLE)

24212-312-020

Unavailable

3

FORK, CENTER GEARSHIFT

24213-312-010

Unavailable

4

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.21

5

CLIP, GEARSHIFT FORK GUIDE (NOT AVAILABLE)

24263-286-000

Unavailable

6

DRUM, GEARSHIFT (NOT AVAILABLE)

24301-312-010

Unavailable

7

PIN, GEARSHIFT DRUM

24421-230-000

$5.80

8

STOPPER, GEARSHIFT DRUM (NOT AVAILABLE) | Use up to Engine SN 3021532

24430-286-030

Unavailable

8

STOPPER, SHIFT DRUM (NOT AVAILABLE) | Use from Engine SN 3021533

24430-286-040

Unavailable

9

PLATE, DRUM STOPPER CAM (NOT AVAILABLE) | Use up to Engine SN 3021532

24434-286-020

Unavailable

9

PLATE, DRUM STOPPER CAM (NOT AVAILABLE) | Use from Engine SN 3021533

24434-286-030

Unavailable

10

SPRING, SHIFT DRUM STOPPER (NOT AVAILABLE) | Use up to Engine SN 3021532

24435-286-020

Unavailable

10

SPRING, SHIFT DRUM STOPPER (NOT AVAILABLE) | Use from Engine SN 3021533

24435-286-030

Unavailable

11

COLLAR, GEARSHIFT DRUM STOPPER (NOT AVAILABLE) | Use up to Engine SN 3021532

24438-283-000

Unavailable

11

COLLAR B, GEARSHIFT DRUM STOPPER (NOT AVAILABLE) | Use from Engine SN 3021533

24439-286-000

Unavailable

12

COLLAR, SHIFT DRUM STOPPER (NOT AVAILABLE) | Use up to Engine SN 3021532

24438-286-000

Unavailable

12

COLLAR A, SHIFT DRUM STOPPER (NOT AVAILABLE) | Use from Engine SN 3021533

24438-286-010

Unavailable

13

SCREW, GEARSHIFT DRUM GUIDE (NOT AVAILABLE)

24445-286-020

Unavailable

14

SPRING, NEUTRAL STOPPER (NOT AVAILABLE)

24447-286-000

Unavailable

15

SPINDLE, GEARSHIFT (NOT AVAILABLE) | Use up to Engine SN 3021532

24610-312-020

Unavailable

15

SPINDLE, GEARSHIFT (NOT AVAILABLE) | Use from Engine SN 3021533

24610-312-030

Unavailable

16

SPRING, GEARSHIFT ARM

24641-216-000

$2.70

17

SPRING, GEARSHIFT RETURN

24651-286-000

Unavailable

18

PIN, RETURN SPRING

90015-286-000

Unavailable

19

WASHER, SHIFT DRUM SIDE (NOT AVAILABLE)

90417-001-000

Unavailable

20

WASHER, LOCK (12MM) (NOT AVAILABLE)

90434-286-000

Unavailable

21

OIL SEAL (12X25X4.5) This part replaces 91201-283-000.

91202-426-003

$5.57

21

OIL SEAL (12X25X4.5) This part replaces 91201-283-005.

91202-426-003

$5.57

21

OIL SEAL (12X25X4.5) This part replaces 91201-292-003.

91202-426-003

$5.57

21

OIL SEAL (12X25X4.5)

91202-426-003

$5.57

22

OIL SEAL (14X28X7) (ARAI)

91206-286-013

$3.01

23

O-RING (11.5X2)

91304-216-000

$2.11

24

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

24

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

25

SCREW, FLAT (6X20) | Use up to Engine SN 3021532 This part replaces 93600-06020.

93600-06020-0A

$1.49

25

SCREW, FLAT (6X20) | Use up to Engine SN 3021532

93600-06020-0A

$1.49

25

SCREW, DRUM STOPPER GUIDE (NOT AVAILABLE) | Use from Engine SN 3021533

24441-286-000

Unavailable

26

BALL, STEEL (#10) (5/16)

96211-10000

$1.49
