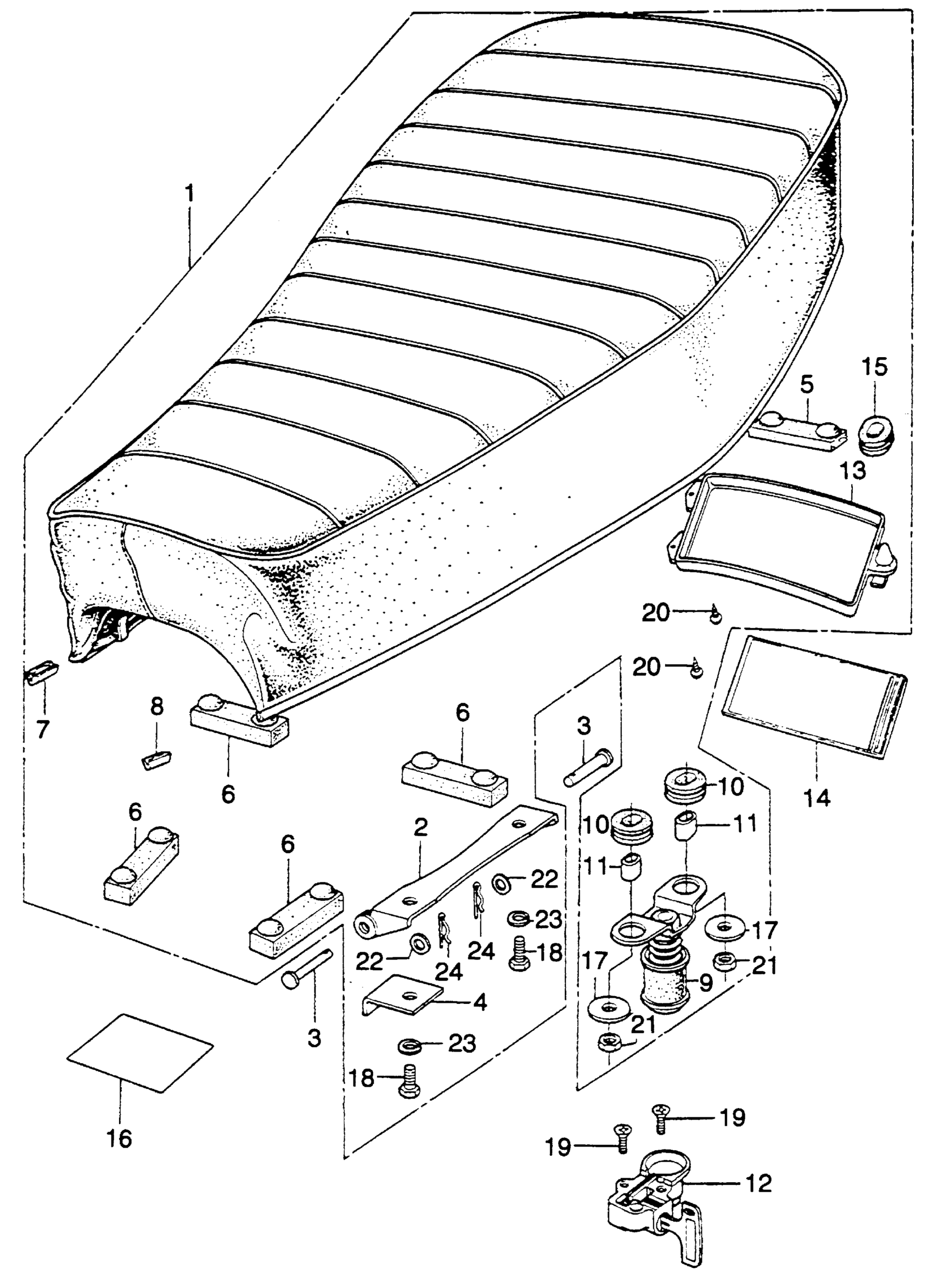

Honda SL350K2A MOTORCYCLE, JPN, VIN# SL350-3000001 SEAT II Diagram

#

Description
Price

NI

COVER, SEAT (NOT AVAILABLE)

77210-340-820

Unavailable

1

SEAT ASSY. *NH1L* (BLACK) (NOT AVAILABLE)

77100-340-670A

Unavailable

2

HINGE, SEAT

77101-312-010

Unavailable

3

BAR, SEAT HINGE (NOT AVAILABLE)

77103-313-000

Unavailable

4

STOPPER, SEAT (NOT AVAILABLE)

77111-312-000

Unavailable

5

RUBBER, SEAT SETTING (NOT AVAILABLE)

77204-340-000

Unavailable

6

RUBBER B, SEAT SETTING

77205-286-000

$5.28

7

GARNISH, R. SEAT MOLDING (NOT AVAILABLE)

77211-323-300

Unavailable

8

GARNISH, L. SEAT MOLDING (NOT AVAILABLE)

77212-323-300

Unavailable

9

BAR ASSY., SEAT LOCK

77220-340-003

Unavailable

9

BAR ASSY., SEAT LOCK This part replaces 77220-340-010.

77220-340-003

Unavailable

9

BAR ASSY., SEAT LOCK This part replaces 77220-340-011.

77220-340-003

Unavailable

10

RUBBER, SEAT LOCK BAR CUSHION This part replaces 77228-340-000.

77228-340-003

$4.24

10

RUBBER, SEAT LOCK BAR CUSHION This part replaces 77228-340-001.

77228-340-003

$4.24

10

RUBBER, SEAT LOCK BAR CUSHION

77228-340-003

$4.24

11

COLLAR, SEAT LOCK BAR This part replaces 77229-340-000.

77229-340-003

$2.92

11

COLLAR, SEAT LOCK BAR This part replaces 77229-340-001.

77229-340-003

$2.92

11

COLLAR, SEAT LOCK BAR

77229-340-003

$2.92

12

LOCK ASSY., SEAT (HONDALOCK)

77230-107-711

Unavailable

12

LOCK ASSY., SEAT (HONDALOCK) | Use up to Frame SN 3014200

77230-107-711

Unavailable

12

LOCK ASSY., SEAT (HONDALOCK) | Use up to Frame SN 3014200 This part replaces 77230-340-013.

77230-107-711

Unavailable

12

LOCK ASSY., SEAT (HONDALOCK) | Use up to Frame SN 3014200 This part replaces 77230-347-003.

77230-107-711

Unavailable

12

LOCK ASSY., SEAT (HONDALOCK) This part replaces 77230-347-003.

77230-107-711

Unavailable

13

LID, SEAT (LOWER)

77250-340-000

Unavailable

14

BAG, SERVICE BOOK This part replaces 77251-342-000.

77251-GR1-000

$4.30

15

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

16

MARK, BATTERY CAUTION (NOT AVAILABLE) | Use from Frame SN 3013601

87507-340-670

Unavailable

17

WASHER, PLAIN (6MM) This part replaces 90514-700-000.

94103-06800

$1.49

17

WASHER, PLAIN (6MM)

94103-06800

$1.49

18

BOLT, HEX. (6X18) This part replaces 92000-06018.

92101-06018-0A

$1.49

18

BOLT, HEX. (6X18) This part replaces 92000-06018-0A.

92101-06018-0A

$1.49

18

BOLT, HEX. (6X18)

92101-06018-0A

$1.49

18

BOLT, HEX. (6X18) This part replaces 92200-06018.

92101-06018-0A

$1.49

19

SCREW, FLAT (6X12)

93600-06012-0G

$1.49

19

SCREW, FLAT (6X12) This part replaces 93600-06012-07.

93600-06012-0G

$1.49

20

SCREW, TAPPING (5X8)

93901-25080

$1.49

21

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM)

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

22

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

22

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

22

WASHER, PLAIN (6MM)

94101-06800

$1.49

23

WASHER, SPRING (6MM)

94111-06000

$1.49

24

PIN, LOCK (6MM)

94251-06000

$1.49
