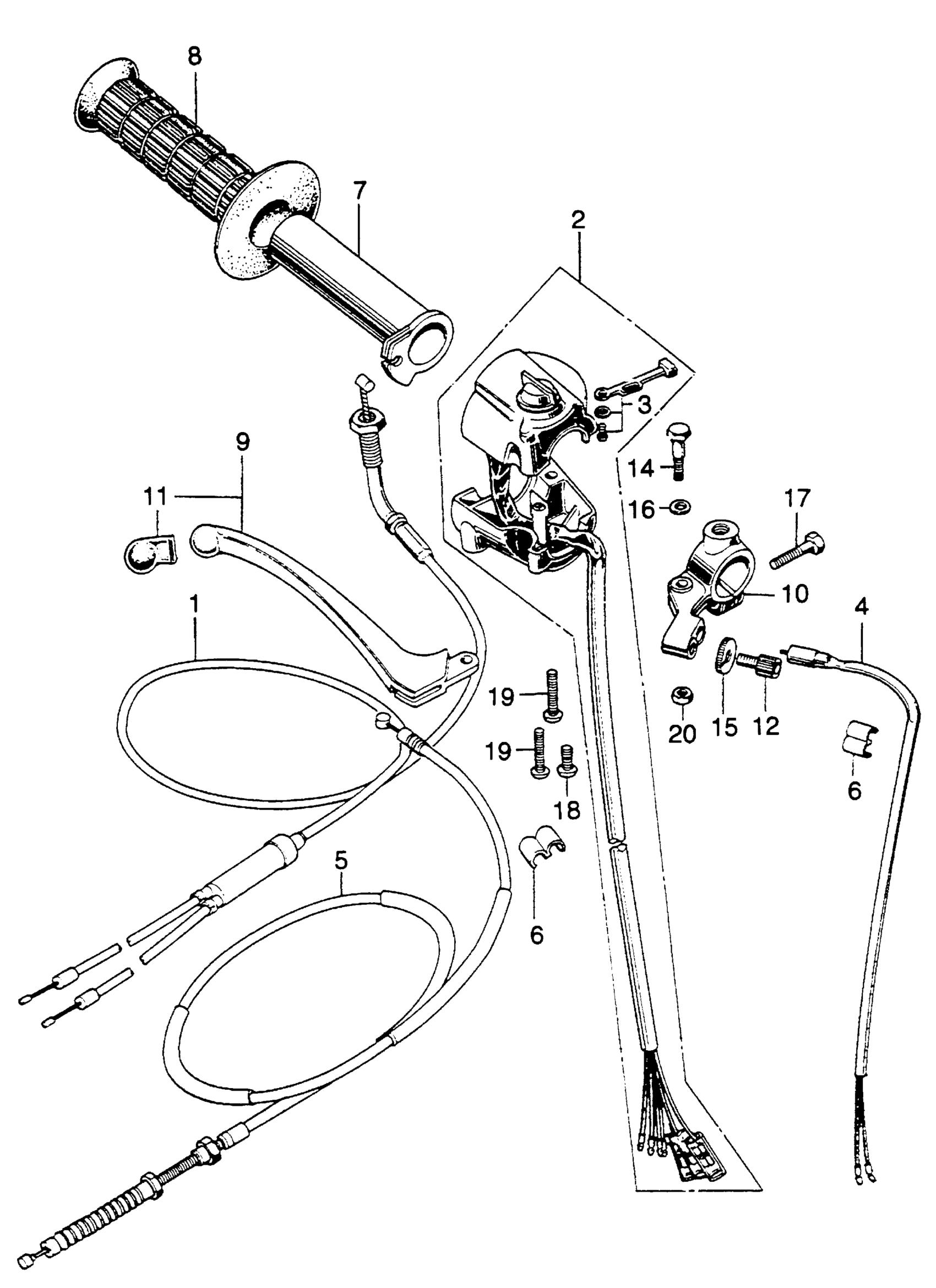

Honda SL350K2A MOTORCYCLE, JPN, VIN# SL350-3000001 RIGHT HANDLE SWITCH + CABLE I Diagram

#

Description
Price

1

CABLE, THROTTLE (NOT AVAILABLE)

17910-312-000

Unavailable

2

SWITCH ASSY., LIGHTING STOP (NOT AVAILABLE)

35300-312-670

Unavailable

3

KNOB, LIGHTING SWITCH (NOT AVAILABLE)

35315-235-000

Unavailable

4

SWITCH ASSY., FR. STOP This part replaces 35340-102-003.

35340-GAN-620

$17.23

4

SWITCH ASSY., FR. STOP This part replaces 35340-187-700.

35340-GAN-620

$17.23

4

SWITCH ASSY., FR. STOP This part replaces 35340-401-681.

35340-GAN-620

$17.23

4

SWITCH ASSY., FR. STOP This part replaces 35340-401-682.

35340-GAN-620

$17.23

4

SWITCH ASSY., FR. STOP This part replaces 35340-437-661.

35340-GAN-620

$17.23

5

CABLE, FR. BRAKE (NOT AVAILABLE) This part replaces 45450-312-010.

45450-413-670

Unavailable

5

CABLE, FR. BRAKE (NOT AVAILABLE)

45450-413-670

Unavailable

6

CLIP, FR. BRAKE CABLE

45465-270-000

$4.60

7

PIPE A, THROTTLE GRIP

95014-51100

$15.36

8

GRIP, R. HANDLE

95011-15100

Unavailable

9

LEVER, R. HANDLEBAR This part replaces 53170-074-670.

53175-KY0-980

$27.86

9

LEVER, R. HANDLEBAR This part replaces 53170-286-670.

53175-KY0-980

$27.86

9

LEVER, R. HANDLEBAR This part replaces 53170-329-000.

53175-KY0-980

$27.86

9

LEVER, R. HANDLEBAR This part replaces 53170-329-010.

53175-KY0-980

$27.86

9

LEVER, R. HANDLEBAR This part replaces 53170-369-700.

53175-KY0-980

$27.86

9

LEVER, R. HANDLEBAR This part replaces 53175-286-000.

53175-KY0-980

$27.86

9

LEVER, R. HANDLEBAR This part replaces 53175-329-000.

53175-KY0-980

$27.86

9

LEVER, R. HANDLEBAR This part replaces 53175-369-700.

53175-KY0-980

$27.86

10

BRACKET, R. HANDLEBAR

53171-312-003

$47.54

11

CAP A, LEVER This part replaces 53180-286-000.

95010-16001

$5.43

11

CAP A, LEVER This part replaces 95010-16000.

95010-16001

$5.43

11

CAP A, LEVER

95010-16001

$5.43

12

BOLT, WIRE ADJUSTING

53192-268-000

$6.08

13

MIRROR, R. This part replaces 88110-074-000.

88110-329-730

Unavailable

14

BOLT, HANDLE LEVER PIVOT

90114-310-000

$4.56

15

NUT, FIXING

90321-315-670

$6.80

15

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$6.80

16

WASHER (7X12)

90501-310-000

$1.48

17

BOLT, HEX. (6X25) This part replaces 93000-06025.

93101-06025-0A

$0.84

17

BOLT, HEX. (6X25) This part replaces 93000-06025-0A.

93101-06025-0A

$0.84

17

BOLT, HEX. (6X25)

93101-06025-0A

$0.84

18

SCREW, PAN (5X6)

93500-05006-0A

$0.91

19

SCREW, PAN (5X25)

93500-05025-0A

$0.86

20

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.19

20

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.19

20

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.19

20

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.19

20

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.19

20

NUT, HEX. (6MM)

94001-06200-0S

$1.19

20

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.19
