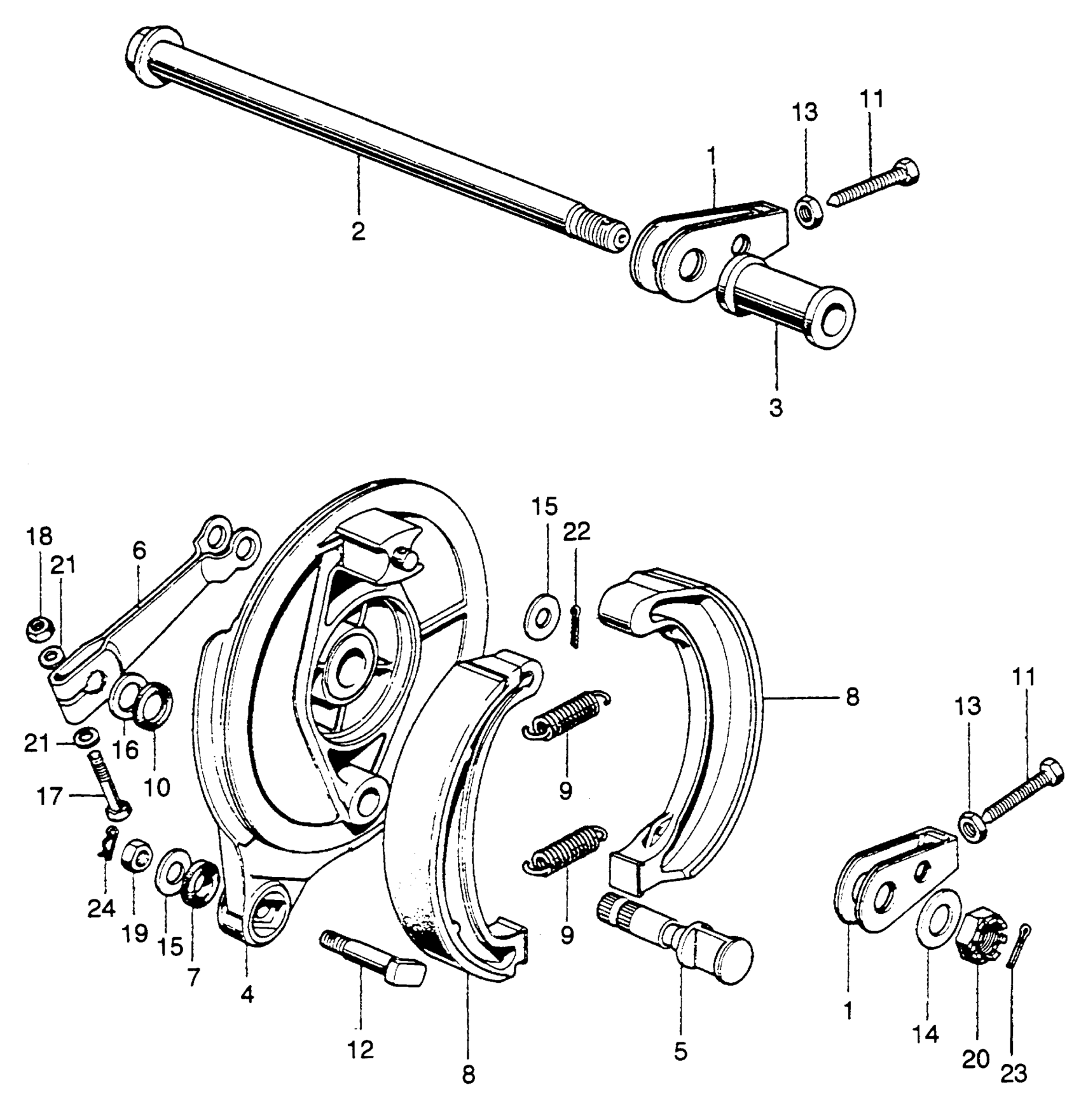

Honda SL350K2A MOTORCYCLE, JPN, VIN# SL350-3000001 REAR BRAKE PANEL Diagram

#

Description
Price

NI

SHOE KIT, BRAKE

06430-354-405

Unavailable

NI

SHOE KIT, BRAKE This part replaces 06430-354-670.

06430-354-405

Unavailable

NI

SHOE KIT, BRAKE This part replaces 431A2-354-670.

06430-354-405

Unavailable

1

ADJUSTER, DRIVE CHAIN This part replaces 40543-312-010.

40543-471-000

Unavailable

1

ADJUSTER, DRIVE CHAIN

40543-471-000

Unavailable

2

AXLE, RR. WHEEL (NOT AVAILABLE)

42301-312-000

Unavailable

3

COLLAR, RR. BRAKE PANEL SIDE (NOT AVAILABLE)

42313-312-010

Unavailable

4

PANEL, RR. BRAKE (NOT AVAILABLE)

43100-312-010

Unavailable

5

CAM, RR. BRAKE (NOT AVAILABLE)

43141-312-000

Unavailable

6

ARM, RR. BRAKE

43410-KC5-000

Unavailable

6

ARM, RR. BRAKE This part replaces 43410-312-000.

43410-KC5-000

Unavailable

6

ARM, RR. BRAKE This part replaces 43410-329-770.

43410-KC5-000

Unavailable

7

RUBBER, STOPPER ARM CUSHION

43434-286-000

$2.92

8

*06430-354-405 | Use up to Frame SN 3021520 This part replaces 45120-240-000.

43120-354-405

Unavailable

8

*06430-354-405 This part replaces 43120-354-670.

43120-354-405

Unavailable

8

*06430-354-405 This part replaces 45120-240-010.

43120-354-405

Unavailable

9

SPRING, BRAKE SHOE | Use up to Frame SN 3021520

45133-240-000

Unavailable

9

SPRING, FR. BRAKE SHOE | Use from Frame SN 3021521

45133-329-000

$2.75

10

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

11

BOLT, CHAIN ADJUSTING

90119-283-000

$11.41

12

BOLT, RR. BRAKE PANEL STOPPER (NOT AVAILABLE)

90127-283-000

Unavailable

13

NUT, CHAIN ADJUSTING

90307-283-000

$3.39

14

WASHER (16.5X30) (NOT AVAILABLE)

90523-286-000

Unavailable

15

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

16

WASHER (14MM) | Use from Frame SN 3021521

90549-121-000

Unavailable

17

BOLT, HEX. (6X35) This part replaces 92000-06036.

92201-06035-0A

$1.75

17

BOLT, HEX. (6X35) This part replaces 92200-06035.

92201-06035-0A

$1.75

17

BOLT, HEX. (6X35)

92201-06035-0A

$1.75

18

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM)

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

19

NUT, HEX. (8MM)

94001-08000-0S

$1.49

20

NUT, CASTLE (16MM) (NOT AVAILABLE)

94011-16220-0S

Unavailable

21

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

21

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

21

WASHER, PLAIN (6MM)

94101-06800

$1.49

22

PIN, SPLIT (2.0X15)

94201-20150

$1.49

23

PIN, SPLIT (4.0X30)

94201-40300

$1.49

24

PIN, LOCK (8MM)

94251-08000

$1.49
