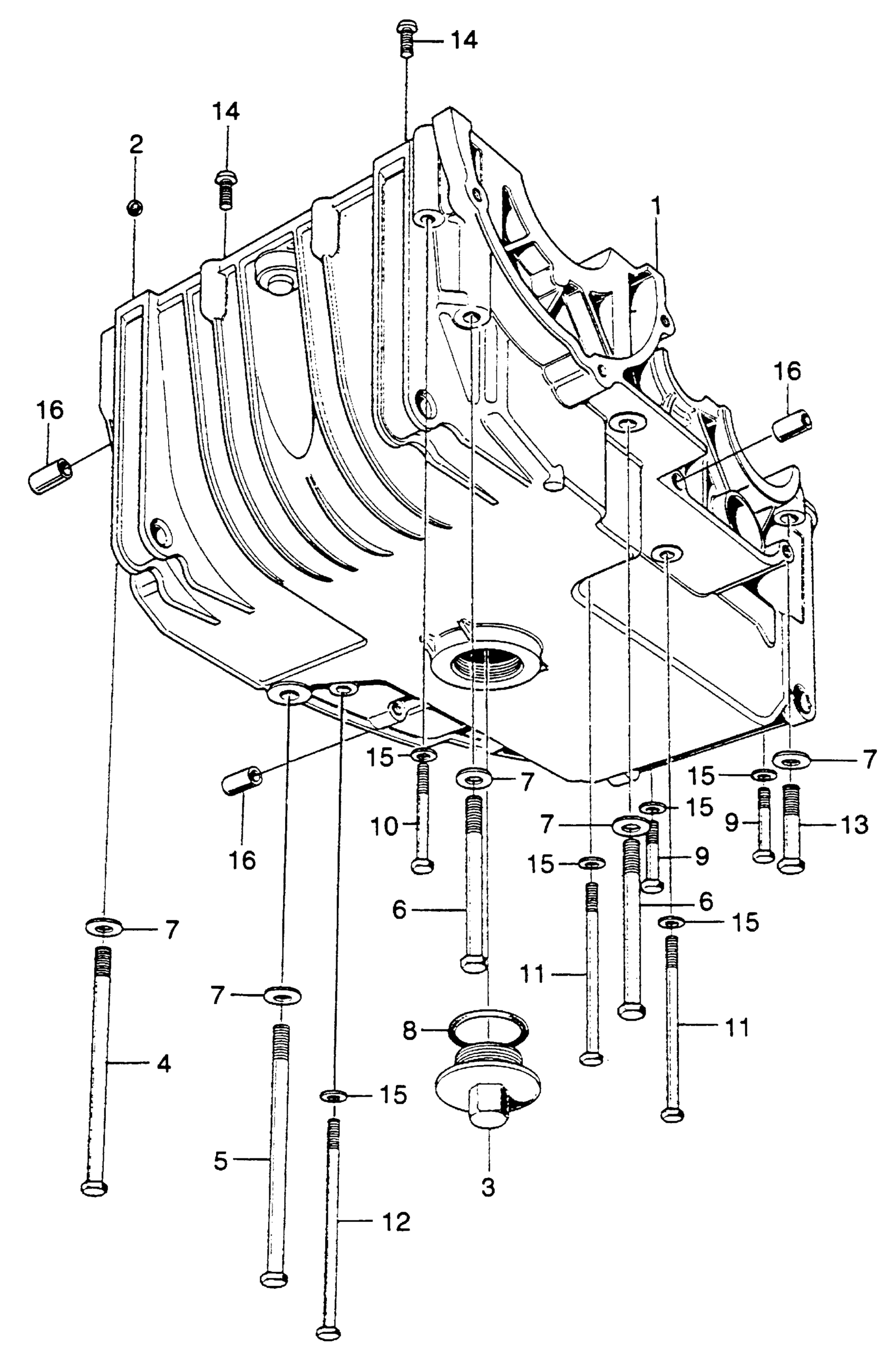

Honda SL350K2A MOTORCYCLE, JPN, VIN# SL350-3000001 LOWER CRANKCASE Diagram

#

Description
Price

1

CRANKCASE (LOWER) (NOT AVAILABLE)

11200-312-030

Unavailable

2

RUBBER, SEALING (NOT AVAILABLE)

11796-286-010

Unavailable

3

BOLT, DRAIN VALVE (NOT AVAILABLE)

90013-312-000

Unavailable

4

BOLT, HEX. (8X115) (NOT AVAILABLE)

90082-286-000

Unavailable

5

BOLT, HEX. (8X150) (NOT AVAILABLE)

90083-286-000

Unavailable

6

BOLT, HEX. (8X97) (NOT AVAILABLE)

90086-286-000

Unavailable

7

WASHER, THRUST (14MM)

90485-035-000

$2.92

8

O-RING (33.5X3.0) This part replaces 91302-200-000.

91304-HB3-003

$7.70

8

O-RING (33.5X3.0) This part replaces 91302-943-003.

91304-HB3-003

$7.70

8

O-RING (33.5X3.0)

91304-HB3-003

$7.70

9

BOLT, HEX. (6X35) | Use up to Engine SN 3021532 This part replaces 92000-06036.

92201-06035-0A

$1.75

9

BOLT, HEX. (6X35) | Use up to Engine SN 3021532 This part replaces 92200-06035.

92201-06035-0A

$1.75

9

BOLT, HEX. (6X35) | Use up to Engine SN 3021532

92201-06035-0A

$1.75

9

BOLT, FLANGE (6X35) | Use from Engine SN 3021533 This part replaces 95700-06035.

95701-06035-00

$1.80

9

BOLT, FLANGE (6X35) | Use from Engine SN 3021533 This part replaces 95700-06035-00.

95701-06035-00

$1.80

9

BOLT, FLANGE (6X35) | Use from Engine SN 3021533

95701-06035-00

$1.80

10

BOLT, HEX. (6X55) | Use up to Engine SN 3021532 This part replaces 92000-06050.

92101-06055-0A

$1.98

10

BOLT, HEX. (6X55) | Use up to Engine SN 3021532 This part replaces 92000-06050-0A.

92101-06055-0A

$1.98

10

BOLT, HEX. (6X55) | Use up to Engine SN 3021532 This part replaces 92000-06055.

92101-06055-0A

$1.98

10

BOLT, HEX. (6X55) | Use up to Engine SN 3021532 This part replaces 92000-06055-0A.

92101-06055-0A

$1.98

10

BOLT, HEX. (6X55) | Use up to Engine SN 3021532

92101-06055-0A

$1.98

10

BOLT, FLANGE (6X50) | Use from Engine SN 3021533 This part replaces 95700-06050.

95701-06050-00

$2.06

10

BOLT, FLANGE (6X50) | Use from Engine SN 3021533 This part replaces 95700-06050-00.

95701-06050-00

$2.06

10

BOLT, FLANGE (6X50) | Use from Engine SN 3021533

95701-06050-00

$2.06

11

BOLT, HEX. (6X100) This part replaces 92000-06100.

92101-06100-0A

Unavailable

11

BOLT, HEX. (6X100) This part replaces 92000-06100-0A.

92101-06100-0A

Unavailable

11

BOLT, HEX. (6X100)

92101-06100-0A

Unavailable

12

BOLT, HEX. (6X140) (SOURCE: VINTAGE PARTS INC.) This part replaces 92000-06140.

92101-06140-0A

Unavailable

12

BOLT, HEX. (6X140) (SOURCE: VINTAGE PARTS INC.) This part replaces 92100-06140.

92101-06140-0A

Unavailable

12

BOLT, HEX. (6X140)

92101-06140-0A

Unavailable

13

BOLT, HEX. (8X50) This part replaces 92000-08050.

92101-08050-0A

$1.97

13

BOLT, HEX. (8X50) This part replaces 92000-08050-0A.

92101-08050-0A

$1.97

13

BOLT, HEX. (8X50)

92101-08050-0A

$1.97

14

SCREW, PAN (6X16) This part replaces 93500-06016.

93500-06016-0A

$1.49

14

SCREW, PAN (6X16)

93500-06016-0A

$1.49

15

WASHER, PLAIN (6MM) | Use from Engine SN 3021533 This part replaces 94101-06000.

94101-06800

$1.49

15

WASHER, PLAIN (6MM) | Use from Engine SN 3021533 This part replaces 94101-06080.

94101-06800

$1.49

15

WASHER, PLAIN (6MM) | Use from Engine SN 3021533

94101-06800

$1.49

16

PIN A, DOWEL (10X14)

94301-10140

$2.28
