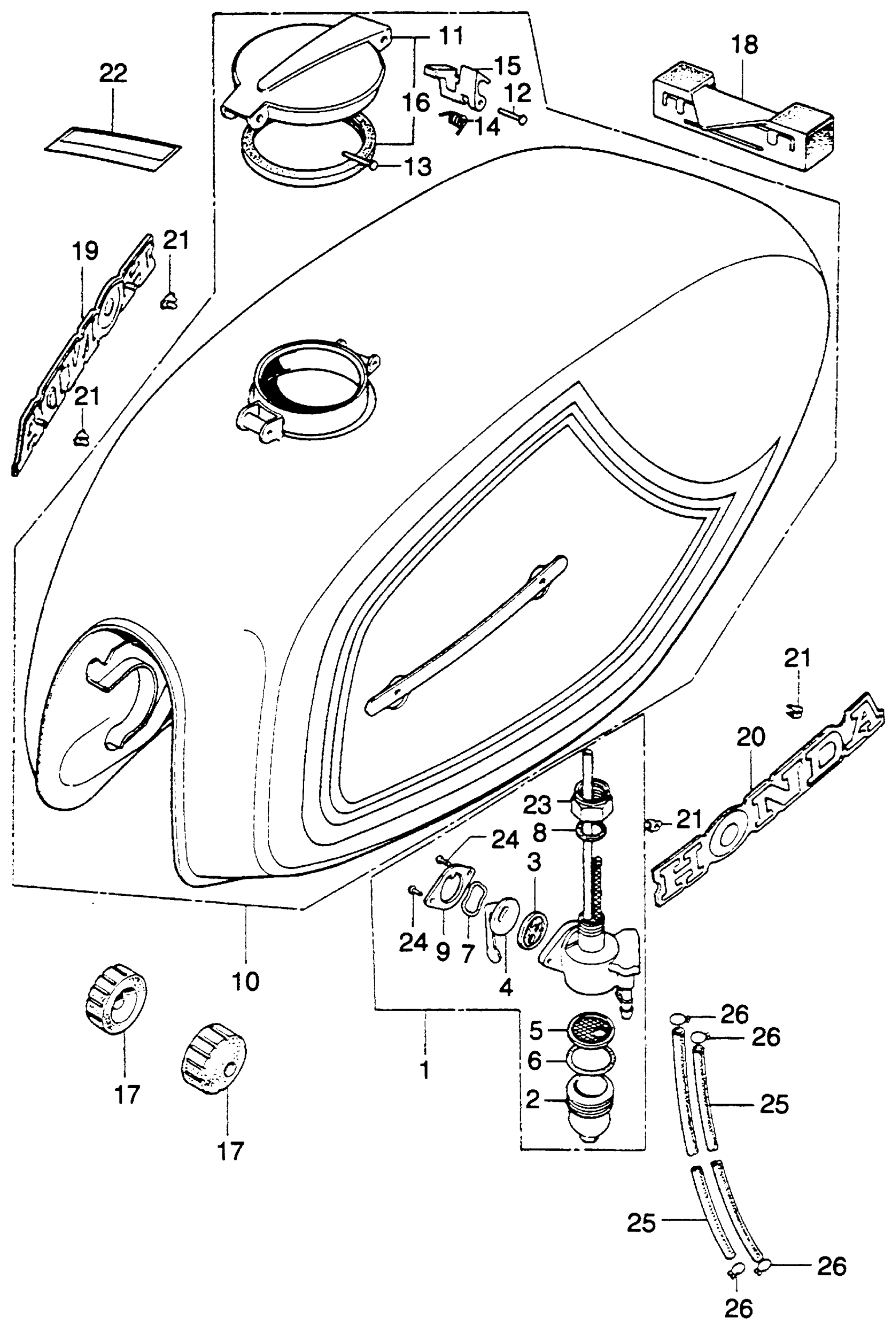

Honda SL350K2A MOTORCYCLE, JPN, VIN# SL350-3000001 FUEL TANK II Diagram

#

Description
Price

1

PETCOCK ASSY. This part replaces 16950-283-000.

16950-292-000

$71.20

1

PETCOCK ASSY.

16950-292-000

$71.20

2

CUP, FUEL STRAINER

16952-028-000

Unavailable

2

CUP, FUEL STRAINER This part replaces 16952-283-000.

16952-028-000

Unavailable

3

GASKET, PETCOCK

16953-283-000

$11.62

4

LEVER, FUEL (NOT AVAILABLE)

16953-298-000

Unavailable

5

SCREEN, FUEL STRAINER This part replaces 16954-283-000.

16957-028-000

$14.57

5

SCREEN, FUEL STRAINER This part replaces 16957-011-000.

16957-028-000

$14.57

5

SCREEN, FUEL STRAINER

16957-028-000

$14.57

5

SCREEN, FUEL STRAINER This part replaces 16957-028-004.

16957-028-000

$14.57

6

O-RING (2.4X18.6)

16075-GHB-B00

$4.35

6

O-RING (2.4X18.6) This part replaces 16955-283-000.

16075-GHB-B00

$4.35

7

SPRING, PETCOCK LEVER

16955-816-004

Unavailable

8

GASKET, JOINT NUT

16956-283-000

$4.26

9

PLATE, PETCOCK LEVER SETTING (NOT AVAILABLE)

16961-298-000

Unavailable

10

TANK, FUEL *Y4CC* (CANDY PANTHER GOLD CUSTOM) (NOT AVAILABLE)

17050-340-000MB

Unavailable

10

TANK, FUEL *PB14MC* (MARINA BLUE METALLIC CUSTOM) (NOT AVAILABLE)

17050-340-000MU

Unavailable

10

TANK, FUEL *Y4CC* (CANDY PANTHER GOLD CUSTOM) (NOT AVAILABLE) This part replaces 17500-340-000MB.

17050-340-000MB

Unavailable

10

TANK, FUEL *PB14MC* (MARINA BLUE METALLIC CUSTOM) (NOT AVAILABLE) This part replaces 17500-340-000MU.

17050-340-000MU

Unavailable

11

CAP, FUEL TANK

17510-323-310

Unavailable

12

PIN, FUEL FILLER CAP CHECK (NA USE ALT:17550-377-315)

17513-300-300

Unavailable

13

PIN B, FUEL FILLER CAP (NOT AVAILABLE)

17514-323-300

Unavailable

14

SPRING, FUEL FILLER CAP CHECK (NA USE ALT:17550-377-315)

17515-300-300

Unavailable

15

CHECK, FUEL FILLER CAP (NA USE ALT:17550-377-315)

17517-300-340

Unavailable

16

GASKET, FUEL FILLER CAP

17534-323-300

$8.80

17

CUSHION, FR. FUEL TANK

17611-KE8-000

$3.92

17

RUBBER, FR. FUEL TANK This part replaces 17611-286-000.

17611-KE8-000

$3.92

18

RUBBER, RR. FUEL TANK

17613-286-000

$14.24

19

EMBLEM, R. FUEL TANK (NOT AVAILABLE)

87121-340-000

Unavailable

20

EMBLEM, L. FUEL TANK (NOT AVAILABLE)

87122-340-000

Unavailable

21

NUT, EMBLEM CLAMP This part replaces 87311-516-000.

87311-634-600

$4.45

21

NUT, EMBLEM CLAMP

87311-634-600

$4.45

22

LABEL, DRIVE CAUTION *NH0* (CHAMPIONSHIP WHITE)

87560-323-670A

$2.96

22

LABEL, DRIVE CAUTION *NH1* (BLACK) This part replaces 87560-323-670B.

87560-323-670ZA

$2.58

22

LABEL, DRIVE CAUTION *NH1* (BLACK)

87560-323-670ZA

$2.58

23

NUT, FUEL VALVE JOINT (NOT AVAILABLE)

90303-268-000

Unavailable

24

SCREW, PAN (3X6)

93500-03006-0A

$0.83

25

TUBE, FUEL (5.3X280) (NOT AVAILABLE)

17516-ME9-000

Unavailable

25

BULK HOSE, FUEL (5.5X3000) (5.5X280)

95001-55003-60M

$42.48

26

CLIP, TUBE (B10)

95002-02100

$1.72
