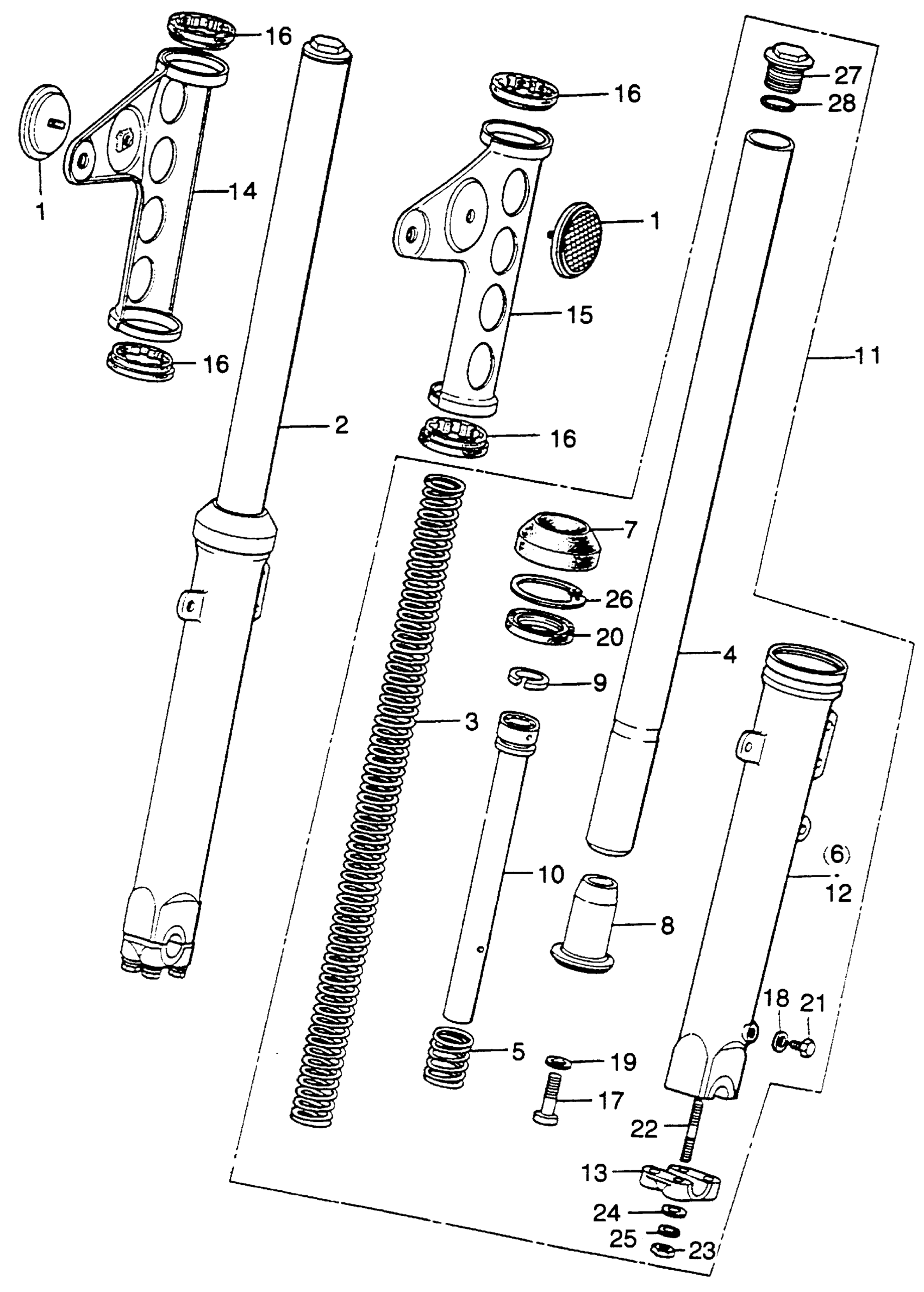

Honda SL350K2A MOTORCYCLE, JPN, VIN# SL350-3000001 FRONT FORK II Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX This part replaces 33741-340-670.

33741-102-870

$35.84

2

FORK ASSY., R. FR. (NOT AVAILABLE)

51400-340-670

Unavailable

3

SPRING, FR. FORK (NOT AVAILABLE)

51401-340-000

Unavailable

4

PIPE, FR. FORK (NOT AVAILABLE)

51410-340-000

Unavailable

5

SPRING, FR. FORK REBOUND

51412-340-000

$4.78

6

CASE, R. FORK (LOWER) (NOT AVAILABLE)

51421-340-300

Unavailable

7

DUST SEAL, FR. FORK This part replaces 51425-340-000.

91254-435-003

$15.40

7

DUST SEAL, FR. FORK

91254-435-003

$15.40

8

PIECE, OIL LOCK (NOT AVAILABLE) This part replaces 51432-340-000.

51432-357-000

Unavailable

8

PIECE, OIL LOCK (NOT AVAILABLE)

51432-357-000

Unavailable

9

RING, PISTON | Use from Frame SN 3014451

51437-329-010

$7.14

9

RING, PISTON (NOT AVAILABLE) | Use up to Frame SN 3014450

51437-340-000

Unavailable

10

PIPE (LOWER) (NOT AVAILABLE)

51440-340-000

Unavailable

11

FORK ASSY., L. FR. (NOT AVAILABLE)

51500-340-670

Unavailable

12

CASE, L. FR. FORK (LOWER) (NOT AVAILABLE)

51521-340-300

Unavailable

13

HOLDER, FR. AXLE

51634-340-000

Unavailable

14

STAY, R. HEADLIGHT CASE *MRCR2* (CHROME PLATING) (NOT AVAILABLE)

61311-340-000XW

Unavailable

15

STAY, L. HEADLIGHT CASE *MRCR2* (CHROME PLATING)

61312-340-000XW

Unavailable

16

RUBBER, HEADLIGHT STAY

61315-340-000

Unavailable

17

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$5.13

17

BOLT, SOCKET (8X27)

90116-383-721

$5.13

18

GASKET, FR. FORK DRAIN PETCOCK

90543-273-000

$2.46

19

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.87

20

OIL SEAL (35X48X11)

91255-KBH-003

$13.24

20

OIL SEAL (35X48X11) This part replaces 91255-MA6-013.

91255-KBH-003

$13.24

20

OIL SEAL (35X48X11) This part replaces 91255-323-013.

91255-KBH-003

$13.24

20

OIL SEAL (35X48X11) This part replaces 91255-434-003.

91255-KBH-003

$13.24

20

OIL SEAL (35X48X11) This part replaces 91255-434-013.

91255-KBH-003

$13.24

21

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

21

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

22

BOLT 2, STUD (8X32) This part replaces 92700-08050.

92900-08032-0E

$2.17

22

BOLT 2, STUD (8X32) This part replaces 92700-08050-0E.

92900-08032-0E

$2.17

22

BOLT 2, STUD (8X32) This part replaces 92700-08050-00.

92900-08032-0E

$2.17

22

BOLT 2, STUD (8X32) This part replaces 92700-08050-05.

92900-08032-0E

$2.17

22

BOLT, STUD (8X32)

92900-08032-0E

$2.17

23

NUT, HEX. (8MM)

94001-08000-0S

$1.49

24

WASHER, PLAIN (8MM)

94101-08000

$1.49

25

WASHER, SPRING (8MM)

94111-08000

$1.49

26

CIRCLIP (INNER) (48MM) (NOT AVAILABLE)

94521-48000

Unavailable

27

BOLT F2, FORK (NOT AVAILABLE)

94605-28200

Unavailable

28

O-RING (23X2.8)

94608-50000

$1.49
