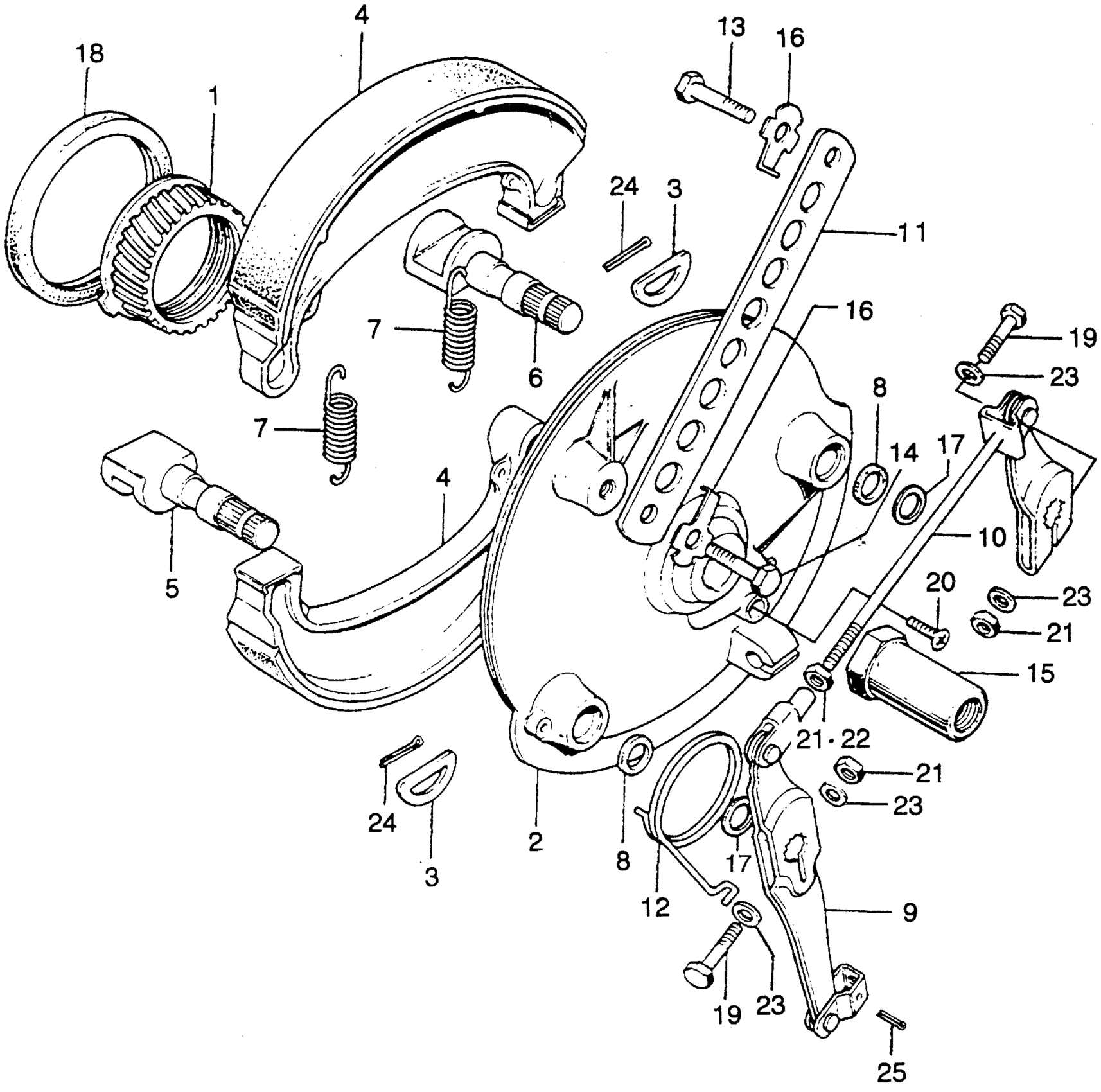

Honda SL350K2A MOTORCYCLE, JPN, VIN# SL350-3000001 FRONT BRAKE + PANEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE This part replaces 451A2-369-670.

06450-369-405

Unavailable

1

GEAR, SPEEDOMETER (NOT AVAILABLE)

44806-340-000

$21.59

2

PANEL, FR. BRAKE (NOT AVAILABLE) | Use up to Frame SN 3021520 This part replaces 45000-340-000.

45010-340-000

Unavailable

2

PANEL, FR. BRAKE (NOT AVAILABLE)

45010-340-000

Unavailable

3

WASHER, FR. ANCHOR PIN (NOT AVAILABLE)

45106-235-000

Unavailable

4

SHOE, FR. BRAKE (NOT AVAILABLE) This part replaces 45120-235-000.

45120-354-670

Unavailable

4

SHOE, FR. BRAKE (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)

45120-354-670

Unavailable

5

CAM A, FR. BRAKE (NOT AVAILABLE)

45131-235-010

Unavailable

6

CAM B, FR. BRAKE (NOT AVAILABLE)

45132-235-000

Unavailable

7

SPRING, BRAKE SHOE (NOT AVAILABLE) | Use up to Frame SN 3024110

45133-235-000

Unavailable

7

SPRING, BRAKE SHOE (NOT AVAILABLE) | Use from Frame SN 3024111

45133-345-000

Unavailable

8

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

9

ARM, FR. BRAKE This part replaces 45410-235-010.

45410-354-670

Unavailable

10

ARM B, FR. BRAKE (NOT AVAILABLE)

45420-235-010

Unavailable

11

ARM, FR. BRAKE STOPPER (NOT AVAILABLE)

45431-340-000

Unavailable

12

SPRING, FR. BRAKE ARM RETURN (NOT AVAILABLE)

45461-222-000

Unavailable

13

BOLT, HEX. (8X28) This part replaces 90126-292-000.

93201-08028-0A

$1.75

13

BOLT, HEX. (8X28) This part replaces 93200-08028.

93201-08028-0A

$1.75

13

BOLT, HEX. (8X28) This part replaces 93200-08028-0A.

93201-08028-0A

$1.75

13

BOLT, HEX. (8X28)

93201-08028-0A

$1.75

14

BOLT B, FR. BRAKE STOPPER ARM (NOT AVAILABLE)

90126-286-000

Unavailable

15

NUT, FR. WHEEL AXLE (NOT AVAILABLE)

90305-340-000

Unavailable

16

WASHER C, TONGUED (NOT AVAILABLE)

94108-31000

Unavailable

17

WASHER (14MM) | Use from Frame SN 3024111

90549-121-000

Unavailable

18

OIL SEAL (54X66X7) This part replaces 91251-230-000.

91251-230-003

$12.60

18

OIL SEAL (54X66X7)

91251-230-003

$12.60

19

BOLT, HEX. (6X32) This part replaces 92000-06032.

92101-06032-0A

$1.64

19

BOLT, HEX. (6X32) This part replaces 92000-06032-0A.

92101-06032-0A

$1.64

19

BOLT, HEX. (6X32)

92101-06032-0A

$1.64

20

SCREW, OVAL (5X16)

93700-05016-0A

$1.49

21

NUT, HEX. (6MM) | Use up to Frame SN 3021520 This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) | Use from Frame SN 3021521 This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) | Use up to Frame SN 3021520 This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) | Use from Frame SN 3021521 This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) | Use up to Frame SN 3021520 This part replaces 94001-06000.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) | Use from Frame SN 3021521 This part replaces 94001-06000.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) | Use up to Frame SN 3021520 This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) | Use from Frame SN 3021521 This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) | Use up to Frame SN 3021520 This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) | Use from Frame SN 3021521 This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) | Use up to Frame SN 3021520

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) | Use from Frame SN 3021521

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) | Use up to Frame SN 3021520 This part replaces 94030-06000.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) | Use from Frame SN 3021521 This part replaces 94030-06000.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) | Use from Frame SN 3021521

94002-06000-0S

$1.49

23

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

23

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

23

WASHER, PLAIN (6MM)

94101-06800

$1.49

24

PIN, SPLIT (2.0X15)

94201-20150

$1.49

25

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

25

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

25

PIN, SPLIT (2.0X22)

94201-20220

$1.49

25

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

25

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

25

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

25

PIN, SPLIT (2.0X35)

94201-20350

$1.49

25

PIN, COTTER (2.0X22)

94201-29220

$1.49
