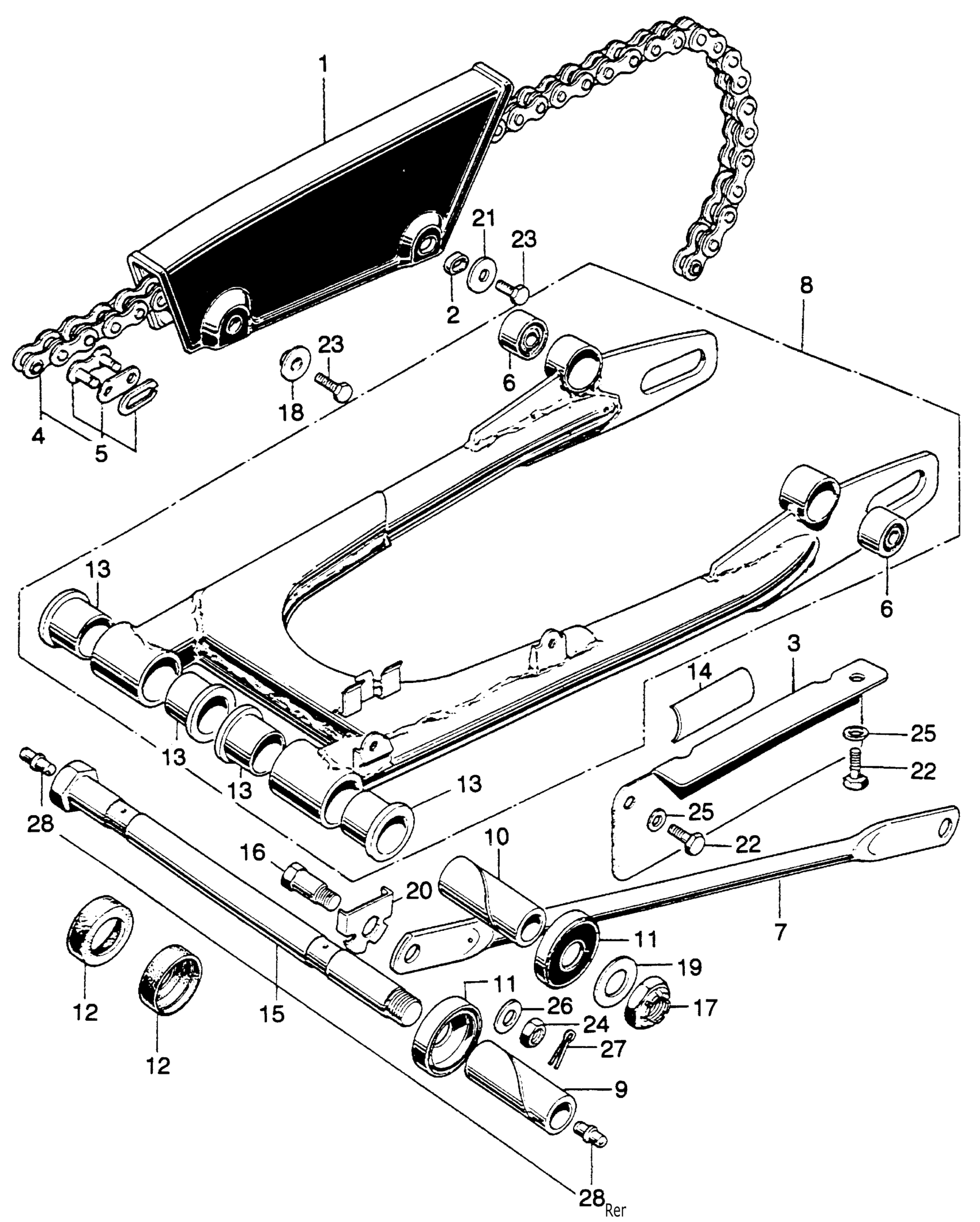

Honda SL350K2A MOTORCYCLE, JPN, VIN# SL350-3000001 DRIVE CHAIN Diagram

#

Description
Price

1

CASE, DRIVE CHAIN *NH1* (BLACK) (NOT AVAILABLE)

40510-312-010B

Unavailable

2

COLLAR, CHAIN CASE

40511-300-000

Unavailable

3

PROTECTOR, CHAIN *NH1* (BLACK) (NOT AVAILABLE)

40511-313-000B

Unavailable

4

CHAIN, DRIVE (102L) (DAIDO) This part replaces 40530-312-003.

405W3-434-505

Unavailable

5

MASTER LINK (DID520D) (NOT AVAILABLE)

40531-312-003

Unavailable

6

RUBBER, RR. SWINGARM (LOWER)

40548-268-000

$7.95

7

ARM, RR. BRAKE STOPPER (NOT AVAILABLE)

43431-340-000

Unavailable

8

SWINGARM, RR. *NH10M* (DARK SILVER METALLIC) (NOT AVAILABLE)

52100-340-000S

Unavailable

9

COLLAR, SWINGARM CENTER (NOT AVAILABLE)

52141-268-000

Unavailable

10

COLLAR, SWINGARM CENTER (NOT AVAILABLE)

52141-286-000

Unavailable

11

CAP, DUST SEAL (NOK) | Use up to Frame SN 3024225 This part replaces 52144-268-000.

52144-356-005

$17.31

11

CAP, DUST SEAL (NOK) This part replaces 52144-329-000.

52144-356-005

$17.31

11

CAP, DUST SEAL (NOK) | Use up to Frame SN 3024225 This part replaces 52144-329-000.

52144-356-005

$17.31

11

CAP, SWINGARM DUST SEAL (NOK)

52144-356-005

$17.31

11

CAP, SWINGARM DUST SEAL (NOK) | Use up to Frame SN 3024225

52144-356-005

$17.31

12

RUBBER, SWINGARM DUST SEAL CAP | Use up to Frame SN 3024225 This part replaces 52145-268-000.

52145-329-000

$7.36

12

RUBBER, SWINGARM DUST SEAL CAP

52145-329-000

$7.36

12

RUBBER, SWINGARM DUST SEAL CAP | Use up to Frame SN 3024225

52145-329-000

$7.36

13

BUSH, SWINGARM PIVOT | Use up to Frame SN 3024225 This part replaces 52174-286-300.

52174-329-300

Unavailable

13

BUSH, SWINGARM PIVOT

52174-329-300

Unavailable

13

BUSH, SWINGARM PIVOT | Use up to Frame SN 3024225

52174-329-300

Unavailable

14

MARK, MUFFLER CAUTION

87504-028-670

$2.92

15

BOLT, SWINGARM PIVOT This part replaces 90121-286-000.

90121-349-690

Unavailable

16

BOLT, RR. BRAKE STOPPER ARM

90133-286-000

$4.48

17

NUT, LOCK (14MM)

90354-268-000

$6.78

18

WASHER (6X20)

90512-300-000

$3.08

19

WASHER (14X26) This part replaces 90526-216-000.

90527-634-670

Unavailable

19

WASHER (14X26)

90527-634-670

Unavailable

20

WASHER D, TONGUED (NOT AVAILABLE)

94108-41000

Unavailable

21

WASHER (6.5X20)

90545-292-000

$1.77

22

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

22

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

22

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

23

BOLT, HEX. (6X14) BOLT, FLANGE (6X14) This part replaces 92000-06014.

92101-06014-0A

$1.49

23

BOLT, HEX. (6X14)

92101-06014-0A

$1.49

24

NUT, HEX. (8MM)

94001-08000-0S

$1.49

25

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

25

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

25

WASHER, PLAIN (6MM)

94101-06800

$1.49

26

WASHER, PLAIN (8MM)

94101-08000

$1.49

27

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

27

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

27

PIN, SPLIT (2.0X22)

94201-20220

$1.49

27

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

27

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

27

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

27

PIN, SPLIT (2.0X35)

94201-20350

$1.49

27

PIN, COTTER (2.0X22)

94201-29220

$1.49

28

FITTING, GREASE (A.45) This part replaces 96201-30000.

96201-30001

$1.49

28

FITTING, GREASE (A.45)

96201-30001

$1.49
